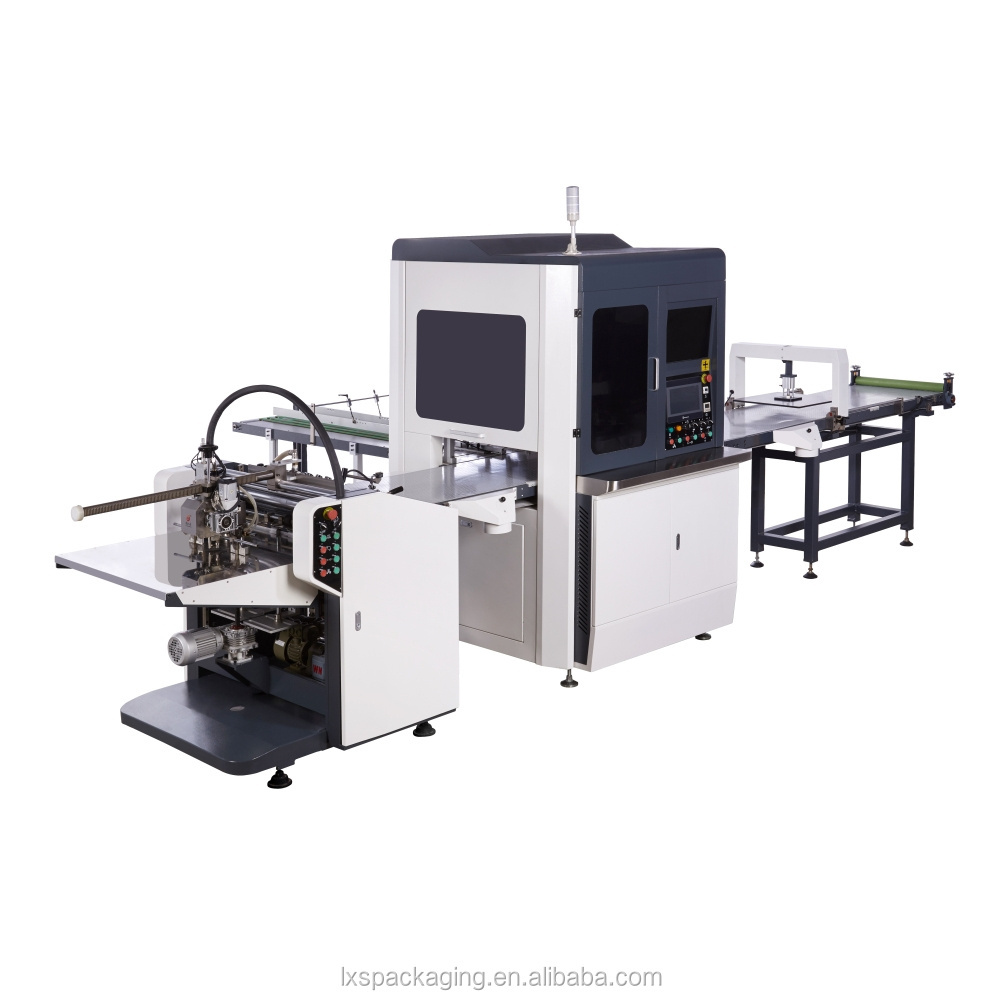

Automatic Visual Rigid Box Positing Machine for Mobile Phone box making
Automatic Visual Rigid Box Positing Machine for Mobile Phone box making
Automatic Visual Rigid Box Positing Machine for Mobile Phone box making
Automatic Visual Rigid Box Positing Machine for Mobile Phone box making
Automatic Visual Rigid Box Positing Machine for Mobile Phone box making
Automatic Visual Rigid Box Positing Machine for Mobile Phone box making
Automatic Visual Rigid Box Positing Machine for Mobile Phone box making
Automatic Visual Rigid Box Positing Machine for Mobile Phone box making

Automatic Visual Rigid Box Positing Machine for Mobile Phone box making

FOB Reference Price: Get Latest Price
≥1 Sets
US $86000
≥2 Sets
US $79000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
L5980*W3180*H2100mm
Weight:
1850kg
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Canada, Turkey, United Kingdom, Italy, France, Germany, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Algeria, Romania, Bangladesh, South Africa, Ukraine
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Feeding way:
Automatically Continuously Feeding
Box type:
Rigid box
Max paper size:
L800*W600mm
MIn paper size:
L180*W100mm
Max box size:
L430*W350*H100mm
Min box size:
L120*W80*H20mm
Paper thickness:
100-200g/㎡
Working speed:
≤35sheet/min
Positioning accuracy:
≤0.3mm
Certification:
CE ISO

Quick Details

Voltage:
380V
Place of Origin:
China
Brand Name:
Longxingsheng
Dimension(L*W*H):
L5980*W3180*H2100mm
Weight:
1850kg
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Canada, Turkey, United Kingdom, Italy, France, Germany, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Algeria, Romania, Bangladesh, South Africa, Ukraine
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Feeding way:
Automatically Continuously Feeding
Box type:
Rigid box
Max paper size:
L800*W600mm
MIn paper size:
L180*W100mm
Max box size:
L430*W350*H100mm
Min box size:
L120*W80*H20mm
Paper thickness:
100-200g/㎡
Working speed:
≤35sheet/min
Positioning accuracy:
≤0.3mm
Certification:
CE ISO
Products Description

Main features

1. High speed, Max speed is 35 pcs/min.
2. Easy operation, the min setting time of change model is 7 minutes.
3. No-move camera when change sizes.
4. Double Germany Basler cameras (ten million pixels).
5. Anti-leaking gluing system.
6. Panasonic Servo motor feeding system. 7. Storage function for the positioning part, easy to adjustment
8. Yamaha Robotic arm.
9. Box detecting system.
Visual positioning machine is a core parts for rigid box production. It is widely applied since 2017. As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes. Nowadays, the visual positioning has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, jewelry box, tea box etc. The working model able to change by one button. The visual positioning system is able to be upgrade. Whole line able to be upgraded to fully automatic line if need.

Price vary with raw material cost, please contact our sales for latest prices.
Machine model                         型号
LS-450 B
Paper size(max)        面纸最大尺寸
L800*W600mm
paper size (min)        面纸最小尺寸
L150*W100mm
Box length                          纸盒长度
80-430mm
Box width                           纸盒宽度
65-350mm
Box height                          纸盒高度
15-120mm
Paper thickness                面纸厚度
100-350g/㎡
Cardboard thickness        灰板厚度
0.5-3mm
Working speed                  工作速度
≤35 pcs/min
Positioning accuracy       工作精度
≤0.1mm
Motor power                     电机功率
6.8 Kw/380v 3 phase
Heating power                  电热功率
8 kw
Air pressure                       气源要求
10L/min 0.6MPa
Weight of machine           机器重量
1850kg
Machine dimension          机器尺寸
L5980*W3180*H2100mm
Standard configurations

1. Control table

2. Electric box

3. Servo motor paper feeding

4. Gluing parts

5. Positioning parts

6. Double fixed camera

7. Box feeding station

8. Box clamping device

9. Hot melt glue tank

Optional function

Glue Viscosity Device (Optional device)

Automatic detecting the hot melt glue thickness.

Air Operated Double Diaphragm Pump (Optional device)

Applied in white glue pumping.

Strip light

Able to choose red light or white light.

Local Language Operation System (Optional )

Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
Machine installation
Working range of LS-450B

White paper

Only gray and kraft color cover paper require test before shipment.

Black paper

Blue paper

Red paper

Yellow paper

Required material for positioning

Thin wrapping paper

Thickness at 80-250 gsm

Carton paper

Thickness at 250-350 gsm, required die punching or v-slots grooving for better appearance.

Pasted box

Feeding by box feeding conveyor

Hot melt glue

Depend on products.

White glue

Depend on products, require white glue pump when need feeding glue automatically.

Greyboard and MDF board

Hardcover production
Machine development
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* One year warranty.

Packing & Delivery
Packaging
Size
6900(L) * 6000(W) * 2200 (D)
Weight
5.1T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
6900 (L) * 6000 (W) * 2200 (D)
Weight
5.1 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
