Quick Details
-
Cutting speed:
-
200-2000mm/s
-
Cutting thickness:
-
≤50mm Other thicknesses can be customized according to the material
-
Material fixing method:
-
Vacuum partition adsorption
-
Transmission port:
-
Network port
-
Transmission system:
-
Yaskawa servo motor, linear linear guide, timing belt, lead screw
-
rated power:
-
11kw
-
Control System:
-
Chinese and English LCD touch screen
-
Operating environment:
-
Operating environment Temperature 0-40°C Humidity 20%-80%RH
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOYOO
-
Name:
-
digit plotter cut blade
-
Cutting speed:
-
200-2000mm/s
-
Cutting thickness:
-
≤50mm Other thicknesses can be customized according to the material
-
Material fixing method:
-
Vacuum partition adsorption
-
Transmission port:
-
Network port
-
Transmission system:
-
Yaskawa servo motor, linear linear guide, timing belt, lead screw
-
rated power:
-
11kw
-
Control System:
-
Chinese and English LCD touch screen
-
Operating environment:
-
Operating environment Temperature 0-40°C Humidity 20%-80%RH
-
Certification:
-
CE, ISO
Product Description

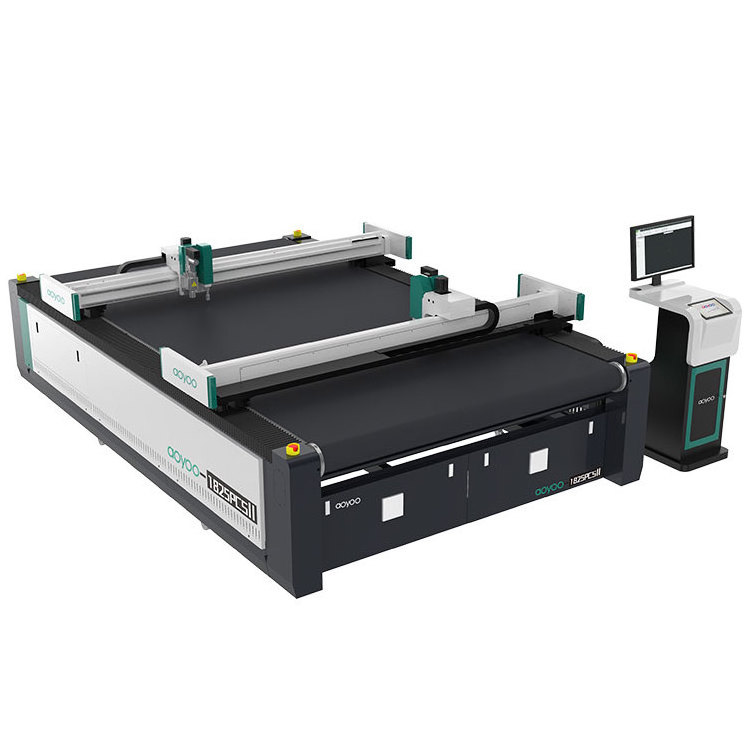

Machine description
The aoyoo cnc auto loading oscillating vibrating automatic garment cutting machine digital leather/cloth/fabric/textile knife cutter used for cutting sunscreen fabrics and other fabrics for blinds. Using the Swiss cutting system, the cut section is straight and tidy, no fray, no scorch, no fluffy and no color fading off. The cutting tool can be cut in different ways by adjusting the type of the cutter according to the thickness of the fabric. Simple selection of tooling via push button, or by remote control With electricity and roller feeding system
Details Images
1.Fast Max cutting speed: 1200mm/s Aoyoo cutting machine is 3 to 5 times faster than traditional manual cutting.
2. Material Saving Machines are computerized accurate and material saving.
3. Compatible Our cutting machines support any design software which can output files in DXF or PLT format. Eg: AutoCad, Coreldraw, AI, etc.
4.User friendly All the sharp turnings can be controlled on the machine. A free training is supported at our company or on your site. We assure you can operate the machine.
Specification
|
Technical parameters / model
|
AOYOO-1625
|
|
Effective working area
|
1600x2500mm
|
|
Multi-function tool
|
Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high
power active round knife |
|
safety devices
|
Safety devices use infrared sensing, safe and reliable
|
|
Cutting speed
|
200-2000mm/s
|
|
Cutting thickness
|
≤50mm Other thicknesses can be customized according to the material
|
|
Applicable materials
|
Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass,
PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material |
|
Transmission port
|
Network port
|
|
Transmission system
|
Yaskawa servo motor, linear linear guide, timing belt, lead screw
|
|
rated power
|
11kw
|
|
Rated voltage
|
380V±10%/220V±10% Optional
|
|
Control System
|
Chinese and English LCD touch screen
|
|
Operating environment
|
Operating environment Temperature 0-40°C Humidity 20%-80%RH
|
|
Support file format
|
AI,PLT,DXF,CDRetc
|
|
Overall size
|
2300*3560*1221mm
|
Product advantage
Production process & company profile
Packing & Delivery
Aoyoo digital vibrating knife cutting machine
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Why Choose Us
FAQ
Q:Are you factory or trading company?
A:We are factory and we have Import and export rights, There are many clients coming here to visit our factory every year , you are welcomed to come to our factory at any time knife fabric cutting machine
Q: How to judge if this cutting machine is suitable for me or not? cutting fabric machine
A: First, you should share something on the material (L*W*H,breathable or not) to be processed and other specific requirements, such as additional drawing function, punching holes function,etc. We will make first round judgement based on our experience. If necessary, we will make demo cutting for you, then we will share the video with you and discuss the possible solution.
Q: This is the first time I use this kind of machine, is it easy to operate?
A:We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q:What is the warranty and quality of this machine?
A:Warranty normally 1-3 years, consumable except. during warranty period any accessories or parts damaged will replce by us for free. We are machine manufacturer in china more than 10 years,Our machine are senior engineers and
designers developed, we consider any one aspect when using, so rarely appear quality problem, this is why we can gurantee customers warranty 1 years.
Q:What is the Price and payment terms?
A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc Q:Delivery time A:some small machine will delivery within 1 day, big machine will deliver within 3-5 days
Q: Where is your factory located? How can I get there?
A: Our factory is based in jinan, shandong province,China. You can fly to beijing, jinan or qingdao. We can pick you up at the air station or train station.
Q: Is there any after sales service?
A: We have integrated after sales service.
Besides our own experienced engineers, we also offer local after sales service through the help of our agents. All this will make you convenient.
