Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
100W 500-2500MHz RF Wideband Power Amplifier Module
-
Frequency:
-
500-2500MHz
-
Gain:
-
50dB
-
Input power:
-
0-5dBm
-
Output Power:
-
over 50dBm
-
VSWR:
-
less than 2
-
Working Voltage:
-
28VDC
-
RF Input/ Output Ports:
-
SMA-Female
-
Impedance:
-
50 Ohm
-
Color:
-
Silver
Quick Details
-
Brand Name:
-
XINLUN
-
Type:
-
Power Amplifier
-
Model Number:
-
XL-PA-500-2500-100W
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
100W 500-2500MHz RF Wideband Power Amplifier Module
-
Frequency:
-
500-2500MHz
-
Gain:
-
50dB
-
Input power:
-
0-5dBm
-
Output Power:
-
over 50dBm
-
VSWR:
-
less than 2
-
Working Voltage:
-
28VDC
-
RF Input/ Output Ports:
-
SMA-Female
-
Impedance:
-
50 Ohm
-
Color:
-
Silver

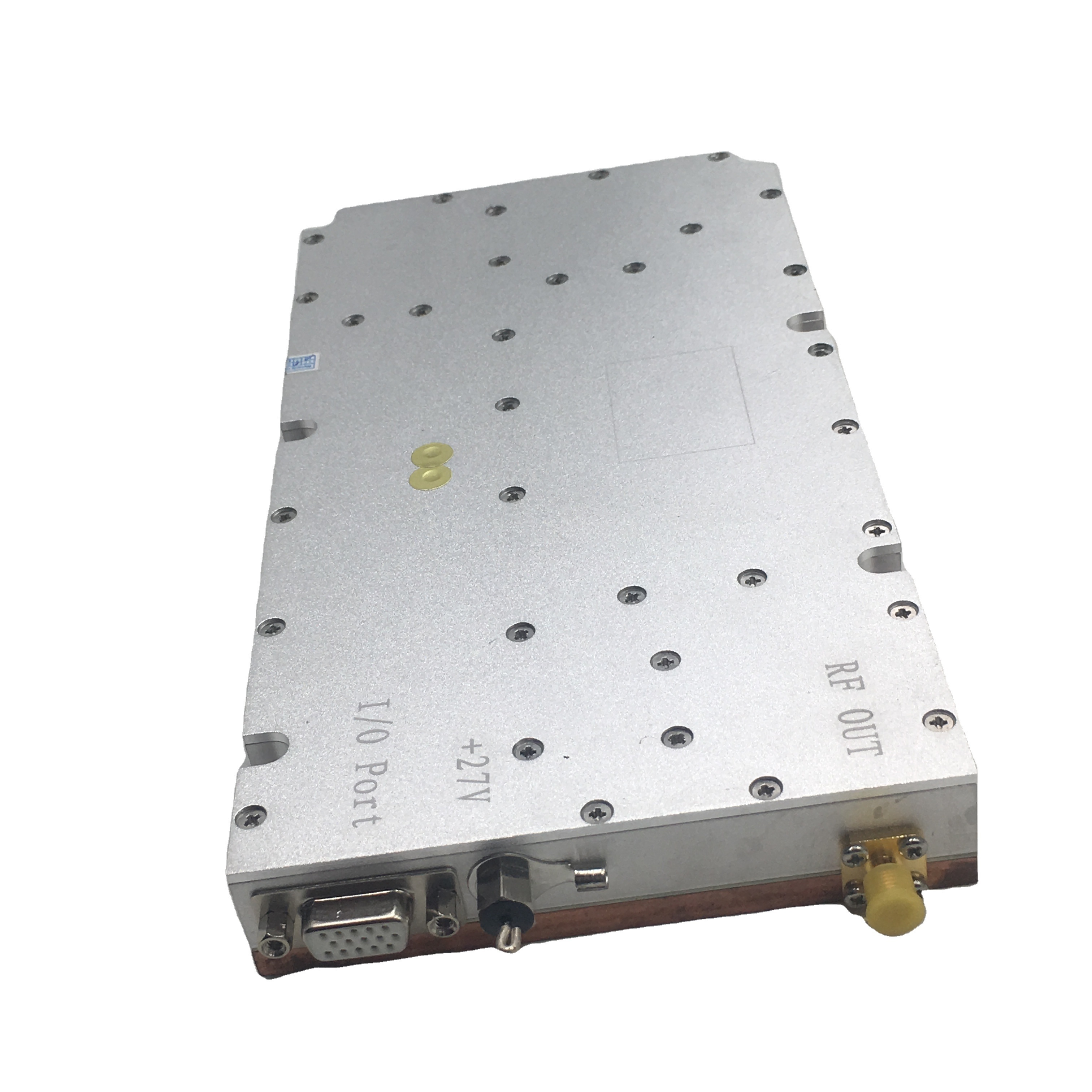

100W 500-2500MHz Solid State Broadband Power Amplifier
Main Features:
1.Solid-state Class AB design;
2. Instantaneous ultra broadband;
3.Suitable for CW, AM, and FM;
4.Small dimensions and lightweight;
5.50Ω input/output impedance;
6.High reliability and ruggedness;
7.Built-in control, monitoring and protection circuits.
Technical speciifcations:
|
Electrical Specifications |
|
|
Item |
Parameters |
|
Frequency Range |
500-2500MHz |
|
Gain |
50dB |
|
Input Power |
0-5dBm |
|
Output Power |
≥50dBm |
|
Small Signal Gain Flatness |
≤4dB |
|
Power Gain Flatness |
≤1.5dB |
|
Spurious |
≥60dBc |
|
Input VSWR |
≤1.5 |
|
Output VSWR |
≤2.0 |
|
Working Voltage |
26-30VDC |
|
Working Current |
≤12A |
|
Mechnical Specifications |
|
|
RF Input Connector |
SMA-Female |
|
RF Output Connector |
SMA or N-Female |
|
DC Interface Connector |
D-Sub 9-Pin, Male |
|
Impedance |
50 Ω |
|
Dimensions |
210*110*25mm |
|
Working Temperature |
-20 ℃ ~+65 ℃ |
|
Storage Temperature |
-40 ℃ ~+85 ℃ |
|
Power Supply Interface |
Pull-core capacitor |
