Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
15080kg
-
Drive Wheel:
-
8X4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, No after-sales service, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Place of Origin:
-
China
-
Gear Box Brand:
-
BEIBEN
-
Dimensions (L x W x H) (mm):
-
11265*2500*3484
-
Cargo Tank Dimension:
-
8200*2300*950mm
-
Product name:
-
Dump Truck
-
Brand:
-
BEIBEN
-
Model:
-
ND33102D43J7
-
Color:
-
Customer's Request
-
Wheelbase:
-
1950+4300+1450mm
-
Vehicle weight:
-
15080kg
-
Engine model:
-
WEICHAI WP12.375E40
-
Maximum power:
-
276kw
-
Emission Standards:
-
Euro II Euro III Euro IV
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
15080kg
-
Drive Wheel:
-
8X4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, No after-sales service, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Place of Origin:
-
China
-
Gear Box Brand:
-
BEIBEN
-
Dimensions (L x W x H) (mm):
-
11265*2500*3484
-
Cargo Tank Dimension:
-
8200*2300*950mm
-
Product name:
-
Dump Truck
-
Brand:
-
BEIBEN
-
Model:
-
ND33102D43J7
-
Color:
-
Customer's Request
-
Wheelbase:
-
1950+4300+1450mm
-
Vehicle weight:
-
15080kg
-
Engine model:
-
WEICHAI WP12.375E40
-
Maximum power:
-
276kw
-
Emission Standards:
-
Euro II Euro III Euro IV

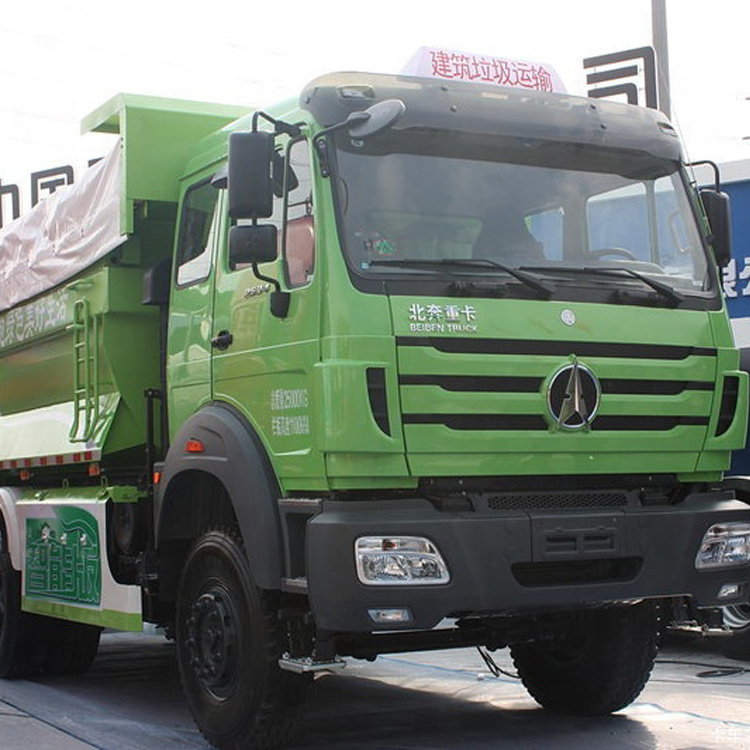

370hp brand new Beiben tipper dumper dump truck
Contact Way
Leona Liang
Mobile / Whatsapp / Wechat/ Facebook: +86178 6542 5058
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Add: Suite 1811, Block A, Yihe International, No. 10 Hong Kong Middle Road, Qingdao, China.
Web: http://www.maxizm.com
Product Description
| Model | ND33102D43J7 | |
| Drive form | 8*4 | |
| Wheelbase(mm) | 1950+4300+1450mm | |
| Vehicle dimensions (mm) | L 11265mm | |
| W 2500mm | ||
| H 3484mm | ||
| Tread(mm) | F 2045/2045 | |
| R 1872/1872 | ||
| Vehicle weight | 15080kg | |
| Rated load | 15790kg | |
| Maximum total mass | 31000kg | |
| Cargo box dimension | 8200*2300*950mm | |
| Approach angle | 23° | |
| Departure angle | 25° | |
| Flip form | After unloading | |
| Remark | Cab: V3 long drive flat top. Frame sectional dimension (mm): 300 × 90 × 8 + 6 + 8 | |
| Engine | ||
| Model | WEICHAI WP12.375E40 | |
| Maximum power | 276kw | |
| Cylinders | 6 | |
| Fuel type | Diesel | |
| Displacement | 11.596L | |
| Emission Standards | Euro 4 | |
| Maximum Horsepower | 375hp | |
| Torque | 1800N•m | |
| Maximum torque speed | 1000-1400RPM | |
| Maximum power speed | 1900RPM | |
| Engine type | Water-cooled, four-stroke with the exhaust valve brake, direct injection, turbocharged and intercooled | |
| Geabox(transmission) | ||
| Type | Fast 12JS200T | |
| Forward gears | 12 | |
| Reverse gears | 2 | |
| Tire | ||
| Tires | 12 | |
| Tire specifications | 12.00R20 | |
| Chassis | ||
| Rear axle | 13 tons double-cut bridge | |
| Rear axle permissible load | 13000kg | |
| Rear axle ratio | 5.921 | |
| Number of spring | 12/12/13 | |
