Quick Details
-
Model Number:
-
ANE-271
-
Operating Temperature:
-
-10~50°C (14~122°F)
-
Battery:
-
3 x 1.5V AAA battery
-
Resolution:
-
0.1°C / 0.18°F
-
Storage Temperature:
-
-40~60°C (-40~140°F)
-
Operating Humidity:
-
Less than 90%RH
-
Wind temperature measurement:
-
0.1°C / 0.18°F (Resolution)
-
Record Data:
-
up to 999 groups of data
Quick Details
-
Type:
-
Anemometer
-
Place of Origin:
-
China
-
Brand Name:
-
GAINEXPRESS
-
Model Number:
-
ANE-271
-
Operating Temperature:
-
-10~50°C (14~122°F)
-
Battery:
-
3 x 1.5V AAA battery
-
Resolution:
-
0.1°C / 0.18°F
-
Storage Temperature:
-
-40~60°C (-40~140°F)
-
Operating Humidity:
-
Less than 90%RH
-
Wind temperature measurement:
-
0.1°C / 0.18°F (Resolution)
-
Record Data:
-
up to 999 groups of data
Product Description

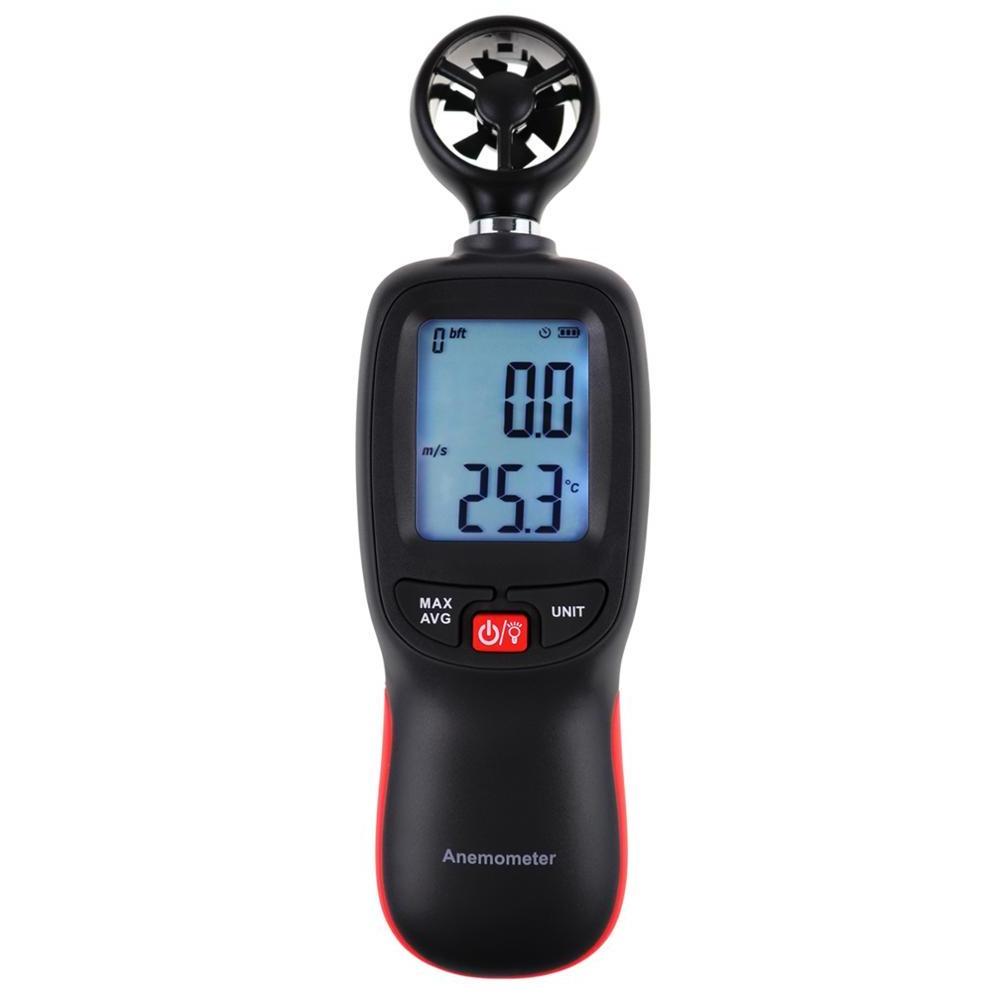

ANE-271 anemometer
is a wind speed and wind temperature tester. This handheld device is equipped with a beaufort scale, wind chill indicator and records data (up to 999 groups of data).
Features
* Simultaneously measure wind velocity and temperature
* Switch between max/average/current wind velocity
* Switchable temperature units: °C / °F
* Five wind velocity switchable units: m/s, Km/h, ft/min, Knots, mph
* Beaufort scale
* Data HOLD
* LCD backlight display
* Manual/Auto power off
* Wind chill indication
* Low battery indication
* Record data (up to 999 groups of data)
* With tripod mounting hole
* Switch between max/average/current wind velocity
* Switchable temperature units: °C / °F
* Five wind velocity switchable units: m/s, Km/h, ft/min, Knots, mph
* Beaufort scale
* Data HOLD
* LCD backlight display
* Manual/Auto power off
* Wind chill indication
* Low battery indication
* Record data (up to 999 groups of data)
* With tripod mounting hole
Specifications
|
WIND VELOCITY MEASUREMENT
|
|
|
|
|
||||
|
Unit
|
Measurement Range
|
Resolution
|
Threshold
|
Accuracy
|
||||
|
m/s
|
0~30
|
0.1
|
0.3
|
±5%±0.1
|
||||
|
ft/min
|
0~5860
|
19
|
60
|
±5%±20
|
||||
|
knots
|
0~55
|
0.1
|
0.6
|
±5%±0.2
|
||||
|
km/h
|
0~90
|
0.3
|
1
|
±5%±0.4
|
||||
|
mph
|
0~65
|
0.2
|
0.7
|
±5%±0.2
|
||||
|
WIND TEMPERATURE MEASUREMENT
|
|
|
|
|||
|
Unit
|
Measurement Range
|
Resolution
|
Accuracy
|
|||
|
°C
|
-10~45°C
|
0.1
|
±2°C
|
|||
|
°F
|
14~113°F
|
0.18
|
±3.6°F
|
|||
|
Battery
|
3 x 1.5V AAA
|
|
|
|||
|
Temperature sensor
|
Negative Temperature Coefficient Resistance
|
|
|
|||
|
Operating Temperature
|
-10~50°C (14~122°F)
|
|
|
|||
|
Operating Humidity
|
Less than 90%RH
|
|
|
|||
|
Storage Temperature
|
-40~60°C (-40~140°F)
|
|
|
|||
|
Current consumption
|
About 7mA for backlight
|
|
|
|||
Details Images
Standard 1.5V battery compartment
Cap type battery compartment design. Easy to change battery. It needs 3 x 1.5V AAA battery.
Packing & Delivery
* English Instruction Manual
* Standard Factory Packaging
