Quick Details
-
Input:
-
HDMI*16
-
Output:
-
IP Output
-
Video encoding:
-
H264 MPEG-4
-
Application:
-
Video Signal Conversion
-
Streaming Protocol:
-
SPTS output MPTS output UDP RTP RTSP protocol
-
Support:
-
LOGO
-
Management:
-
Web NMS
-
Power:
-
100-240VAC
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
OEM
-
Model Number:
-
EN1601A
-
Input:
-
HDMI*16
-
Output:
-
IP Output
-
Video encoding:
-
H264 MPEG-4
-
Application:
-
Video Signal Conversion
-
Streaming Protocol:
-
SPTS output MPTS output UDP RTP RTSP protocol
-
Support:
-
LOGO
-
Management:
-
Web NMS
-
Power:
-
100-240VAC

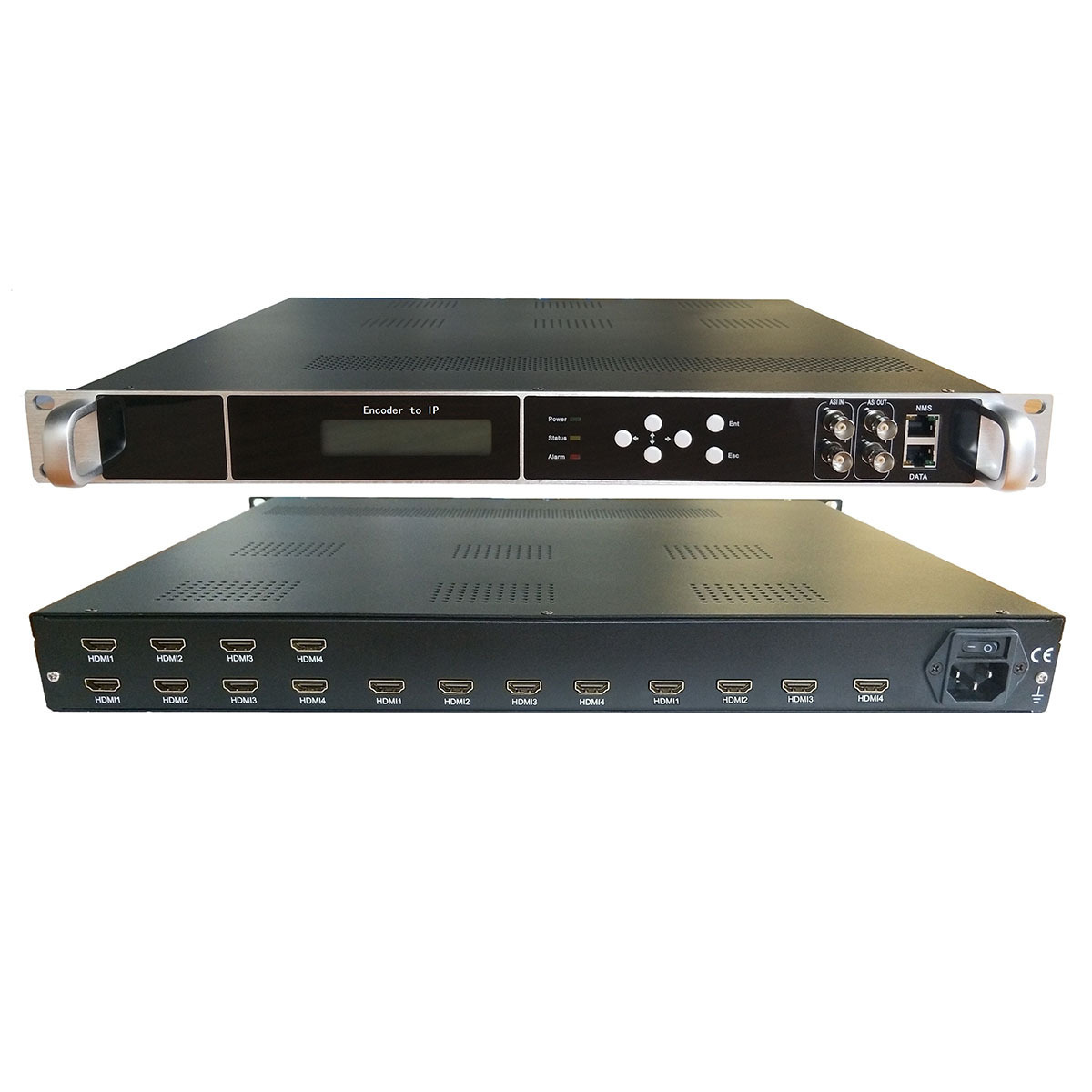

The EN1601 series encoding-to-IP, ASI all-in-one machine is our latest research and development cost-effective input HDMI device.
The device supports 16 HDMI inputs, 1 Gigabit IP input / output; supports 2 independent ASI outputs, 4 MPTS outputs, and SPTS
outputs. It has the characteristics of high integration, high performance and low cost. A single device integrates a set of
front-end system functions, which is very suitable for digital TV transmission systems such as hotels, clubs, hospitals, and
baths. Support 16 HDMI inputs.（Support HDCP） Support 1 Gigabit IP input / output, MPTS output, UDP / RTP protocol (multicast
output), RTSP (unicast output) Support 2 ASI inputs Support 2 ASI independent outputs Support LCD and key functions Support
network management (Web) Support online upgrade
The device supports 16 HDMI inputs, 1 Gigabit IP input / output; supports 2 independent ASI outputs, 4 MPTS outputs, and SPTS
outputs. It has the characteristics of high integration, high performance and low cost. A single device integrates a set of
front-end system functions, which is very suitable for digital TV transmission systems such as hotels, clubs, hospitals, and
baths. Support 16 HDMI inputs.（Support HDCP） Support 1 Gigabit IP input / output, MPTS output, UDP / RTP protocol (multicast
output), RTSP (unicast output) Support 2 ASI inputs Support 2 ASI independent outputs Support LCD and key functions Support
network management (Web) Support online upgrade
|
Input
|
HDMI (16HDMI)
|
|
|
2 ASI inputs
|
|
|
1 IP Gigabit Ethernet port input
|
|
Output
|
2 independent ASI outputs
|
|
|
IP output (SPTS output, MPTS output), UDP, RTP / RTSP protocol
|
|
Video encoding
|
encoding format MPEG-4 AVC / H.264
|
|
|
Input interface HDMI
|
|
|
Resolution Input: 1920 × 1080P / 1920 × 1080i / 1280 × 720P / 720x576i / 720x480i @ 50 / 59.94Hz
|
|
|
Output: 1920 × 1080_30P, 1920 × 1080_30P, 1280 × 720_30P, 720x576_25P, 720x480_25P
|
|
|
Bit rate 1Mbps ~ 13Mbps (each channel)
|
|
|
Rate mode CBR, VBR
|
|
Audio encoding
|
Coding format MPEG1 Layer2
|
|
|
Sampling rate: 48KHz
|
|
|
Bit rate 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps
|
|
System
|
Network Management (Web) supports network upgrade
|
|
|
Chinese / English operation interface
|
|
General Size (L × W × H)
|
482mm × 410mm × 44mm
|
|
Weight
|
8kg
|
|
Temperature range
|
0 ~ 45 ℃ (working); -20 ~ 80 ℃ (storage)
|
|
Power requirements
|
AC100 ~ 240V, 50 / 60Hz
|
|
Power consumption
|
<90W
|
Support OSD (Logo&Caption) insertion for each channel, easy operation
The equipment is mainly used for live webcasting, IPTV network TV system, cable TV front-end building
Effective demonstration
Project requirements
Room space When installing multiple rows of cabinets, the distance between the front and rear doors of the cabinet is 1.2 ~ 1.5m and the distance from the wall is 0.8m.
The equipment room floor is non-conductive and dust-free.
Ground antistatic material volume resistivity 1X107
~ 1X1010, ground current limiting resistor
1M. Floor load should be greater than 450Kg / m2.
Ambient temperature Long-term work in the environment of 5 ~ 40ºC, short-term work in the environment of 0 ~ 45ºC, methodical
It is best to install air conditioners in the parts to facilitate heat dissipation.
Relative humidity Long-term work in 20% ~ 95% environment and short-term work in 10% ~ 97% environment.
Ambient air pressure: 86kPa ~ 106kPa.
The doors and windows of the equipment room must be sealed with dustproof rubber strips. It is recommended that the windows be double-glazed and sealed tightly.
The wall of the equipment room can be covered with wallpaper or matte paint, but it is not suitable to paint easily powder.
Fire protection requirements The computer room should be equipped with an automatic fire alarm system and a portable fixed fire extinguishing system.
Power requirements Three independent power supply systems are required: equipment power supply, air conditioning power supply, and lighting power supply.
The equipment is powered by AC power. The AC power is set at 220V ± 20% 50 / 60Hz.
Before running, double check and verify.
Q1,What is your shipping method?
A1, FedEx, UPS, DHL, TNT, EMS and other international express shipping are supported. Normally, it takes 3-7 days from China to you, we will choose the best way for you based on our historical data to ensure that the package is received safely and smoothly.
Q2, Can I get some samples?
Q2, Can I get some samples?
A2, yes, of course, we are honored to provide you some samples for testing, but the samples are not free. In order to ensure the correct and safe purchase of the product, we will provide an online test.
Q3, Can you provide OEM service according to our requirements? Is it free?
Q3, Can you provide OEM service according to our requirements? Is it free?
A3, with our professional and experienced design team, we can replace your company's logo on the chassis, software interface and carton to provide OEM service.
Q4, How about your warranty?
Q4, How about your warranty?
A4, 1 year warranty free repair or replacement. We provide online technical support through remote assistance, and repair services are provided by experienced after-sales specialists.
Q5, about delivery time?
Q5, about delivery time?
A5, our fast delivery time is within 3 days after payment. In case of special circumstances, we guarantee to arrange delivery within 7 days after receipt of payment. If you would like more information about delivery time, please contact us.
Q6, about import duties?
Q6, about import duties?
A6, in most countries, imported goods need to pay import tax, all our quotations and prices do not include import tax, as for the specific price, please consult the local customs, thank you for your understanding
