Quick Details
-
Output Voltage (V):
-
220V/380V
-
Output Frequency:
-
custom
-
Pre-sales project design:
-
For Project
-
Is_customized:
-
Yes
-
Blade Material:
-
Fiber Glass
-
Generator type:
-
Disc Coreless Permanent Magnent Generator
-
Warranty:
-
10 Years
-
Rated Voltage:
-
96V-380V
-
Inverter type:
-
Grid Inverter
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
R&X
-
Model Number:
-
RX-XV Series
-
Output Voltage (V):
-
220V/380V
-
Output Frequency:
-
custom
-
Pre-sales project design:
-
For Project
-
Is_customized:
-
Yes
-
Blade Material:
-
Fiber Glass
-
Generator type:
-
Disc Coreless Permanent Magnent Generator
-
Warranty:
-
10 Years
-
Rated Voltage:
-
96V-380V
-
Inverter type:
-
Grid Inverter

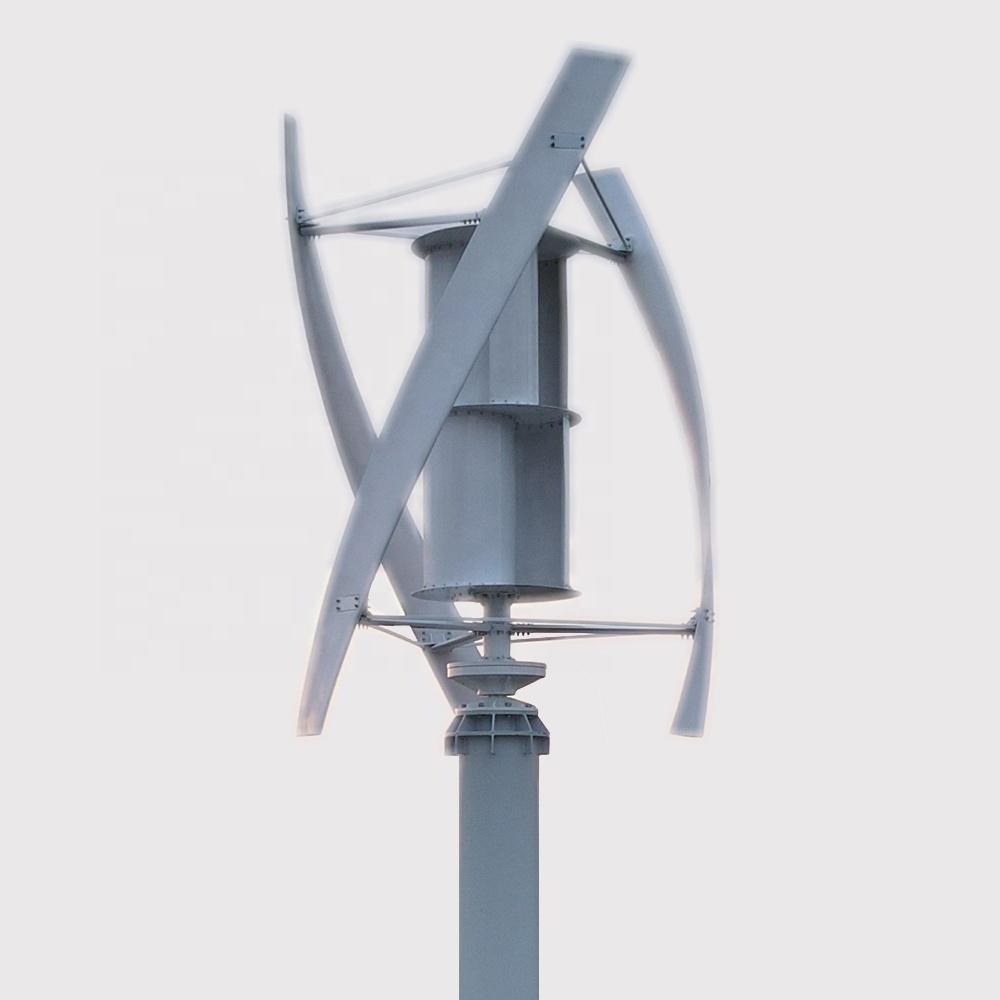

10KW 15KW 20KW 25KW Vertical Axial Wind Turbine With On Grid Inverter 220V 380V Wind Turbine Generator
Product Description
1. Low start up wind speed; beautiful appearance, low vibration operation, low noise.
2. Being installed by human design and easy for installation, maintenance and repair.
3. Being molded through precise injection with new process, together with the optimized design of aerodynamic contour and structure, our wind turbine blades have such advantages:high utilization of wind energy which contributes to the annual energy output.
4. Our generators, adopting patented permanent magnet rotor alternator, with a special kind of stator design. efficiently decrease
resistance torque of the generators
2. Being installed by human design and easy for installation, maintenance and repair.
3. Being molded through precise injection with new process, together with the optimized design of aerodynamic contour and structure, our wind turbine blades have such advantages:high utilization of wind energy which contributes to the annual energy output.
4. Our generators, adopting patented permanent magnet rotor alternator, with a special kind of stator design. efficiently decrease
resistance torque of the generators
Specification
|
Model
|
RX-XV3000
|
RX-XV5000
|
RX-XV15K
|
RX-XV20K
|
SH-X7K
|
|
|||||
|
Rated power
|
3000w
|
5000W
|
15KW
|
20KW
|
7KW
|
|
|||||
|
Nominal Voltage
|
24v/48v/96v
|
48v/96V/120V/220V
|
96V/120V/220V/380V
|
96V/120V/220V/380V
|
96V/220V/380V
|
|
|||||
|
Blade length
|
1.65m
|
2.1m
|
3.6M
|
4.0M
|
3m
|
4M
|
|||||
|
Rotor Diameter
|
1.2M
|
1.4M
|
2.4M
|
2.6M
|
2M
|
2M
|
|||||
|
Blade quantity
|
3 pieces
|
|
|
|
|
|
|||||
|
Starting wind speed
|
2.5 m/s
|
|
|
|
|
|
|||||
|
Survial wind speed
|
45 m/s
|
|
|
|
|
|
|||||
|
Blade material
|
Glass fiber
|
|
|
|
|
|
|||||
|
Packing
|
carton/wooden box
|
|
|
|
|
|
|||||
|
Generator type
|
Theree phase AC permanent magnet generator
|
|
|
|
|
|
|||||
|
Brade mode
|
electromagnetism
|
|
|
|
|
|
|||||
|
Wind adjustment
|
Automatically adjust to windward
|
|
|
|
|
|
|||||
Drawing
Power Curve
Project Photos Show
Product packaging
Application
What's Difference With HAWT And VAWT
The main difference between horizontal and vertical wind turbines is their orientation relative to the wind direction.
Horizontal wind turbines have an axis that is parallel to the wind, while vertical wind turbines have an axis that is perpendicular to the wind.
This affects their design, performance, and application in various ways.
Some of the advantages of horizontal wind turbines are:
1. They are more efficient and can capture more wind energy than vertical wind turbines
2. They can be installed on higher towers to access stronger and more consistent winds
3. They are more widely used and have more research and development support than vertical wind turbines
Some of the disadvantages of horizontal wind turbines are:
They can cause noise and visual pollution, as well as pose a threat to birds and bats
Some of the advantages of vertical wind turbines are:
1. They are omnidirectional and do not need to face the wind direction to operate
2. They can operate in lower and more turbulent winds, making them suitable for urban and residential areas
3. They have have very low noise
Some of the disadvantages of vertical wind turbines are:
1. They are less efficient and can capture less wind energy than horizontal wind turbines
2. They have lower rotational speeds and torque, which limits their power output
