RUNTX 6 ton side loader diesel container forklift truck with 4800mm lifting height

RUNTX 6 ton side loader diesel container forklift truck with 4800mm lifting height

FOB Reference Price: Get Latest Price

≥1 Pieces

US $16499

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Runtx

Fork Length:: 1070mm

Fork Width:: 120mm

Weight (KG):: 5300 kg

Type:: Forklift

Product Type:: Internal Combustion Counterbalanced Forklift

Color:: Red,Green

Feature:: Hydraulic Systems, Low Fuel Consumption, High Efficiency,Low Noise

Engine:: XinChaiC490/ISUZU C240

Load Center:: 500 Mm

Mast:: 2 Stage/3 Stage

Tire:: Polyurethane Solid

After Warranty Service:: Video technical support

After-sales Service Provided:: Free spare parts

Quick Details

Min. Lifting Height:: 2010mm

Warranty:: 1 Year

Place of Origin:: Fujian, China

Brand Name:: Runtx

Fork Length:: 1070mm

Fork Width:: 120mm

Weight (KG):: 5300 kg

Type:: Forklift

Product Type:: Internal Combustion Counterbalanced Forklift

Color:: Red,Green

Feature:: Hydraulic Systems, Low Fuel Consumption, High Efficiency,Low Noise

Engine:: XinChaiC490/ISUZU C240

Load Center:: 500 Mm

Mast:: 2 Stage/3 Stage

Tire:: Polyurethane Solid

After Warranty Service:: Video technical support

After-sales Service Provided:: Free spare parts

Products Description

Diesel Side Loader Forklift Descriptiom

Transmission	Hydraulic Transmission
Model	CPCD30S	CPCD40S	CPCD50S	CPCD60S	CPCD70S	CPCD80S
Max.lift capacity/CG of cargo (kg/mm)	3000/600	4000/600	5000/600	6000/600	8000/600	10000/760
Max. lift height（laden） (mm)	3500	3000	3550	3550	3600	3600
Minimum turning radius (mm)	4300	4300	4550	4450	4800	5800
Gradeability （laden）(%)	≥20	≥20	≥20	≥20	≥20	≥20
Platform height (mm)	920	920	990	990	990	1340
Platform width (mm)	1200	1200	1220	1220	1505	1760
Fork length (mm)	1200	1200	1220	1220	1450	1650
Overall dimension (L×W×H) (mm)	4420×2035×2700	4420×2035×2700	4712×2065×2800	4712×2065×2800	5300×2300×3070	6200×2600×3450
Weight unladen (kg)	5300	5800	8300	8600	10500	15000
Engine Model	4D30G31	4D30G31	CY4BG331	CY4BG331	CY6BG332	CY6BG232-62
Norm power (Kw/rpm)	36.8/2500	36.8/2500	73.5/2400	73.5/2400	85/2200	95/2200
Max.torque/speed (N.m/rpm)	174/2500	174/2500	350/1500-1900	350/1500-1900	450/1400	500/1400

Details

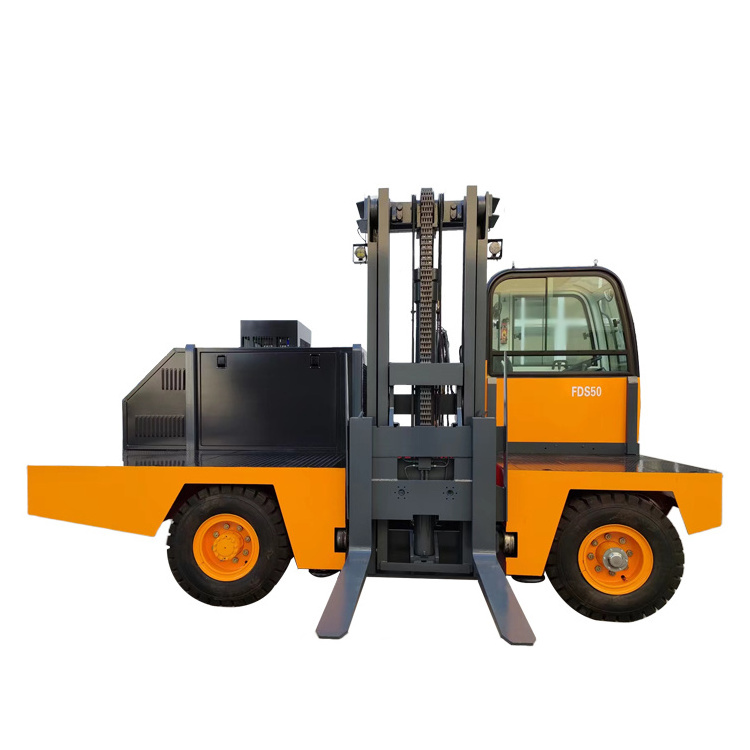

RUNTX Brand side forklift truck is a new type of carry scraper. Currently we have two models, pure electric drive and diesel engine drive, with a maximum load capacity of 10 tons. The truck different from the counter-balanced one mainly in that the forks are mounted on the side of the body .Besides lifting and tilting,the forks can also traverse to the right side of the truck frame,and retract back alongside the well in the middle section of the truck.long cargoes can be loaded by the forks on/from the truck deck,as well as transported in limit spaces. As the long cargoes are piled lengthwise along, the truck's platform,the width of the passageway required by the fork lifter can be platform remarkably. Thereby, the side forklift truck is particularly suitable for handing timber,section steels, line poles,cement tubes,plastic pipes and other kind of bulky,over length cargoes.it found wide applications in the forestry department, railway stations, telephone pole, harbours warehouses, factories, con.struction sites,etc.

Packaging and Shipping

1.Use environmentally friendly degradable plastic film to wrap around the entire car to protect the paint.

2. Some models can drive directly into a 40-foot container.

3.The entire vehicle is reinforced with packaging materials that comply with international standards to ensure that the forklift you receive is flawless.
