Quick Details
-
Weight (KG):
-
1 KG
-
Product name:
-
405nm Dot Laser Module
-
Laser Wavelength:
-
450nm±10nm
-
Laser Power:
-
80mw
-
Size:
-
16*66mm
-
Operating Current:
-
300~350mA
-
Operating Voltage:
-
3-5V
-
Wire Length:
-
80cm
-
Lens Angle:
-
90°
-
Irradiation Distance:
-
Adjustable Focus
-
Operating Temperature:
-
-10°C~70°C
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Dot Laser Module
-
Brand Name:
-
XinLand
-
Weight (KG):
-
1 KG
-
Product name:
-
405nm Dot Laser Module
-
Laser Wavelength:
-
450nm±10nm
-
Laser Power:
-
80mw
-
Size:
-
16*66mm
-
Operating Current:
-
300~350mA
-
Operating Voltage:
-
3-5V
-
Wire Length:
-
80cm
-
Lens Angle:
-
90°
-
Irradiation Distance:
-
Adjustable Focus
-
Operating Temperature:
-
-10°C~70°C
Specification
|
Product Name
|
450nm 80mw Laser Module
|
|
Size
|
16*66mm
|
|
Output Wavelength
|
450nm±10nm
|
|
Output Power
|
80mw
|
|
Input Voltage
|
3-5V
|
|
Input Current
|
300~350mA
|
|
Storage Temperature
|
-40℃~85℃
|
|
Operating Temperature
|
-10℃~70℃
|
|
Wire Length
|
80cm
|
|
Irradiation Distance
|
Adjustable Focus
|
|
Lens Angle
|
90°
|
|
Working Hours
|
8000H
|
Products Description

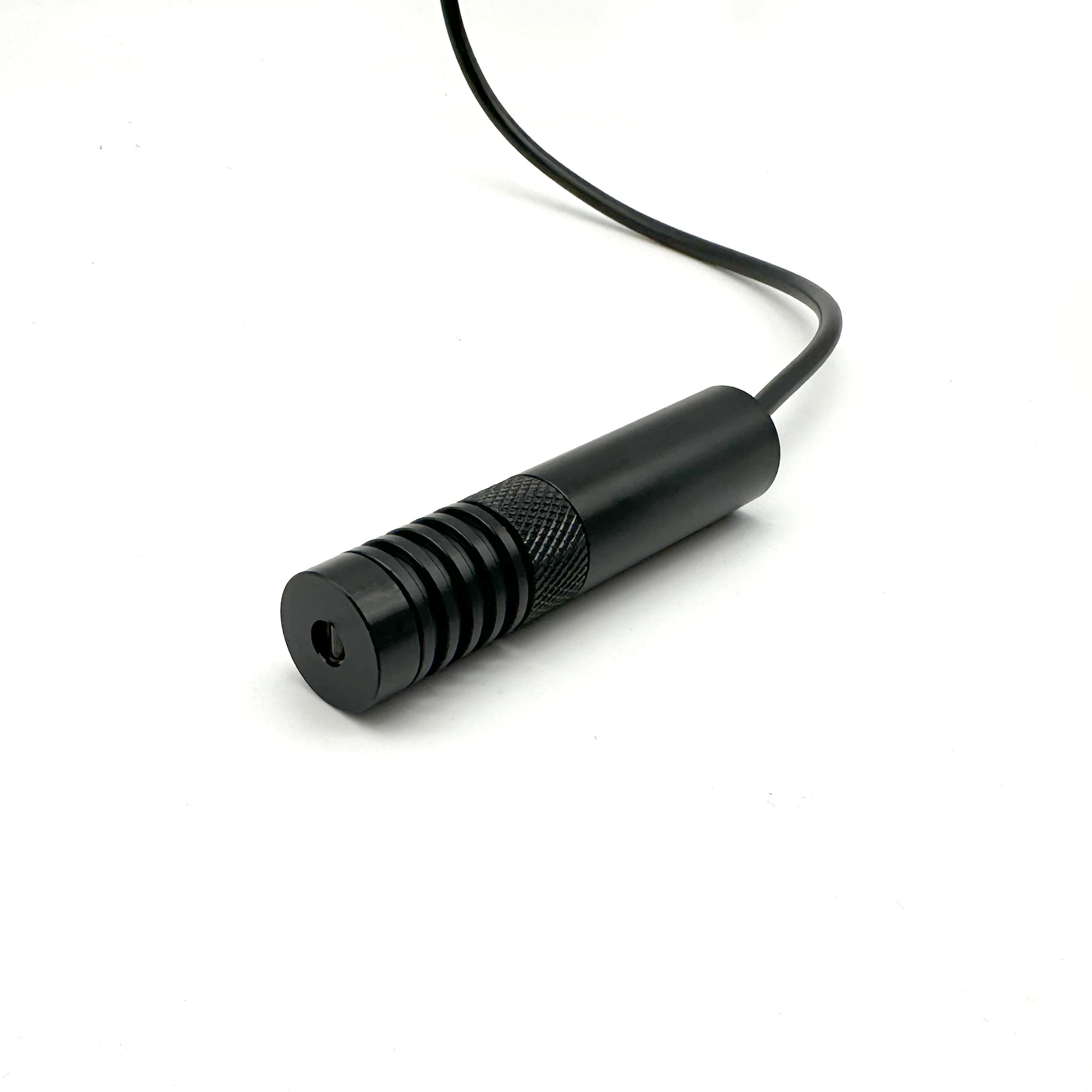

450nm 80mw Blue Dot Laser Module is a high power blue laser module with excellent performance and reliability. This module uses advanced semiconductor laser technology to produce a stable and intense blue laser beam. With a wavelength of 450 nanometers and a power of 80 milliwatts, it provides excellent results in a variety of applications.
Adjustable focus: Rotate the focus head of the laser head left and right to adjust to the appropriate spot size according to the working distance, which is convenient and fast.
The all-metal package, improved heat dissipation performance and longer service life.
The laser diode imported from Germany directly emits light, and the stability is particularly high.
In terms of performance, the 450nm 80mw Blue Dot Laser Module has excellent beam quality and long throw distance. It produces a clear, bright blue light spot whose size and shape can be precisely controlled by adjusting the optics. Its long-range shooting distance can reach several hundred meters, which can meet the needs of most applications.
Wavelength, power, wire length, working distance, spot effect, etc. can be customized according to customer requirements.
450nm 80mw Blue Dot Laser Module is a powerful and stable blue laser module. Whether used in fields such as industrial marking, ranging, lighting or entertainment, it can provide users with excellent results and reliable performance.
You can purchase matching brackets in our store.
Easy to install, (can be installed from multiple angles) can be quick switch operation.
Application
Use for Buttoning machine positioning, Sewing machine positioning, Embroidery machine positioning, Clothing cutting and positioning, Machine tool positioning, Brickyard marking positioning, Stone trimming positioning, etc.
