Quick Details
-
Rated Voltage:
-
400V
-
Rated Current:
-
540A
-
Speed:
-
1500RPM
-
Frequency:
-
50HZ
-
Fuel:
-
Natural Gas
-
Alternator:
-
XN brand
-
Color:
-
Green
-
Certificate:
-
ISO9001
-
Engine brand:
-
JichaiHN
-
Voltage regulating mode:
-
Automatic
-
Applied area:
-
Pipe Natural Gas
-
Cooling method:
-
Water Cooled Method
-
Start method:
-
Electric Motor
-
Certification:
-
CE ISO BV
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCHN
-
Model Number:
-
360GF-T
-
Rated Voltage:
-
400V
-
Rated Current:
-
540A
-
Speed:
-
1500RPM
-
Frequency:
-
50HZ
-
Fuel:
-
Natural Gas
-
Alternator:
-
XN brand
-
Color:
-
Green
-
Certificate:
-
ISO9001
-
Engine brand:
-
JichaiHN
-
Voltage regulating mode:
-
Automatic
-
Applied area:
-
Pipe Natural Gas
-
Cooling method:
-
Water Cooled Method
-
Start method:
-
Electric Motor
-
Certification:
-
CE ISO BV

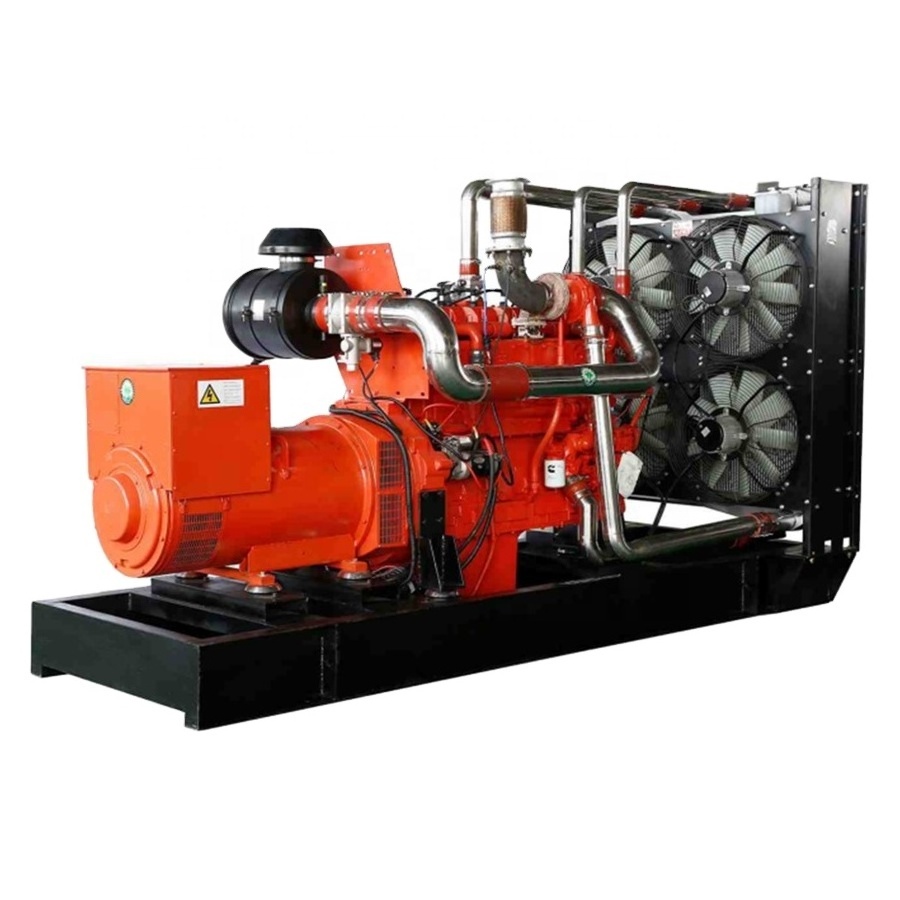

300kW 400kW CE EAC certificate natural gas generator
Gas generator set parameters:
|
Model |
360GF-T |
|
|
Rated power (kW/KVA) |
360 / 450 |
|
|
Rated current (A) |
541 |
|
|
Rated Voltage ( V ) |
400 |
|
|
Rated Frequency ( Hz ) |
50/6 0 |
|
|
Size (mm) |
3800*1600*2200 |
|
|
Weight (kg) |
3500 |
|
|
Engine |
Model |
6TDN |
|
Type |
Water-cooled, 4-stroke,6 cylinder in-line |
|
|
Rated Power(kW) |
360 |
|
|
Rated Speed(rpm) |
1 5 00/1800 |
|
|
Cylinder No. |
6 |
|
|
Bore*Stroke(mm) |
152×180 |
|
|
Cooling Method |
Water-cooled |
|
|
Oil Consumption(g/KWH) |
<0.3 |
|
|
Gas Consumption(m 3 /h) |
< 98.5 |
|
|
Starting method |
24V DC |
|
|
Exhaust displacement |
19.6L |
|
| Emission Standard |
TA-Luft
|
|
|
Alternator |
Brand |
Far r and/XN |
|
Model |
FLD 36 0 |
|
|
Rated Power(kW/KVA) |
36 0/ 450 |
|
|
Voltage Regulation |
±1 |
|
|
Excitation mode |
Brushless, Self Excitation |
|
|
Insulation Class |
H |
|
|
Control System |
Model |
SMARTGEN HGM9510N |
|
Working Voltage |
DC8.0V to DC35.0V |
|
|
Overall Dimensions |
197 mm x 152 mm x 47mm |
|
|
Panel Cutout |
186mm x 141mm |
|
|
Working Condition |
Temperature: (-25~70)ºC; Humidity: (20~90)% |
|
|
Weight |
0.56kg |
|
300kW 400kW CE EAC certificate natural gas generator
2. Gas generator unit delivery status:
|
SN |
Name |
Qty |
Brand |
Remark |
|
1 |
Gas engine |
1 set |
Jichai Huanneng |
Displacement 19.6L , 1 5 00r pm |
|
2 |
Alternator |
1 set |
Farrand |
50/6 0Hz, 40 0V |
|
3 |
Synchronization cabinet |
1 set |
Jichai Huanneng |
Smartgen HGM9510 controller and 6 3 0A Frame type breaker |
|
4 |
Common Base |
1 set |
Jichai Huanneng |
Steel |
|
5 |
GAS train |
1 set |
Jichai Huanneng |
GAS pressure regulator , pressure gauge , back-fire arrester , ball valve |
|
6 |
Battery |
1 set |
Camel |
Maintenance free battery |
|
7 |
Cooling system |
1 set |
Datong |
Water Cooling |
|
8 |
Exhaust system |
1 set |
Jichai Huanneng |
Exhaust and muffler |
