- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LXS-13D
-
Feature:
-
single-jet
-
Installation:
-
Horizonal
-
Keyword:
-
mini water meter
-
Nominal Diameter:
-
N15 DN20
-
Standard:
-
ISO 4064 ClassB
-
Body material:
-
Brass
-
Temperature:
-
0.1 ~40
-
Pressure:
-
16bar
-
Type:
-
Single Jet
-
Certification:
-
GS
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIAJIE
-
Model Number:
-
LXS-13D
-
Feature:
-
single-jet
-
Installation:
-
Horizonal
-
Keyword:
-
mini water meter
-
Nominal Diameter:
-
N15 DN20
-
Standard:
-
ISO 4064 ClassB
-
Body material:
-
Brass
-
Temperature:
-
0.1 ~40
-
Pressure:
-
16bar
-
Type:
-
Single Jet
-
Certification:
-
GS

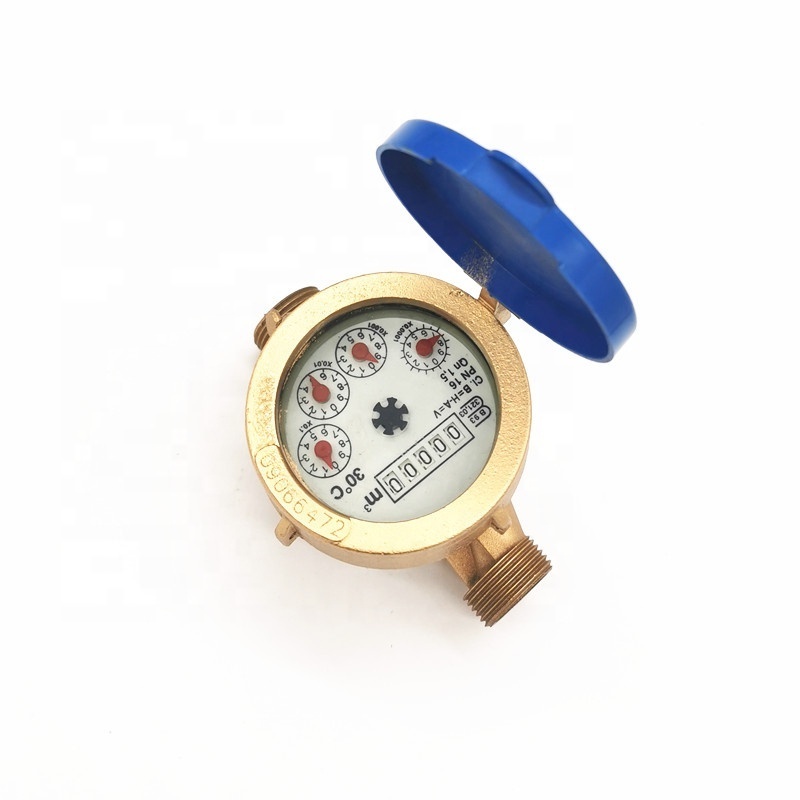

1. Wet-dial
2. Single-jet
3. Antimagnetic construction
4. Measuring accuracy is up to class B of ISO4064 Standard.
5. Selected high quality materials. Steady & reliable characteristics
6. Series universal use. Easy interchange & maintenance.
MAIN TECHNICAL DATA
| TYPE | SIZE | CLASS | FLOW | READING | ||||
| Qmax | Qn | Qt | Qmin | Min | Max | |||
| mm | m3/h | L/h | M3 | |||||
| LXS-13D | 13 | B | 3 | 1.5 | 120 | 30 | 0.001 | 99999 |
| LXS-20D | 20 | B | 5 | 2.5 | 200 | 50 | 0.001 | 99999 |
DIMENSIONS AND WEIGHT
| TYPE | SIZE | LENGTY | WIDNTH | WEIGHT | CONNECTING THREAD | WEIGHT | |
| mm | mm | mm | mm | KG | |||
| LXS-13D | 13 | 110 | 75 | 80 | G3/4 | 0.9 | |
| LXS-20D | 20 | 130 | 94 | 83 | G1 | 1.1 | |
