Quick Details
-
Material:
-
Wooden package, Carbon Steel/stainless steel
-
Weight:
-
1250
-
Size:
-
Depends on capacity
-
Power:
-
0.5~5.5
-
Weight (KG):
-
1250 kg
-
Product name:
-
High Quality sludge watering system
-
Application:
-
sewage dewatering
-
Certification:
-
CE ISO
-
Color:
-
Customized Color
-
After-sales Service Provided:
-
Online Support
-
Brand:
-
Longdai
-
Control:
-
Electric Auto Control (PLC Siemens)
-
Voltage:
-
220v 380V 50HZ 60HZ(Or Customized
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Longdai
-
Material:
-
Wooden package, Carbon Steel/stainless steel
-
Weight:
-
1250
-
Size:
-
Depends on capacity
-
Power:
-
0.5~5.5
-
Weight (KG):
-
1250 kg
-
Product name:
-
High Quality sludge watering system
-
Application:
-
sewage dewatering
-
Certification:
-
CE ISO
-
Color:
-
Customized Color
-
After-sales Service Provided:
-
Online Support
-
Brand:
-
Longdai
-
Control:
-
Electric Auto Control (PLC Siemens)
-
Voltage:
-
220v 380V 50HZ 60HZ(Or Customized
Product Description

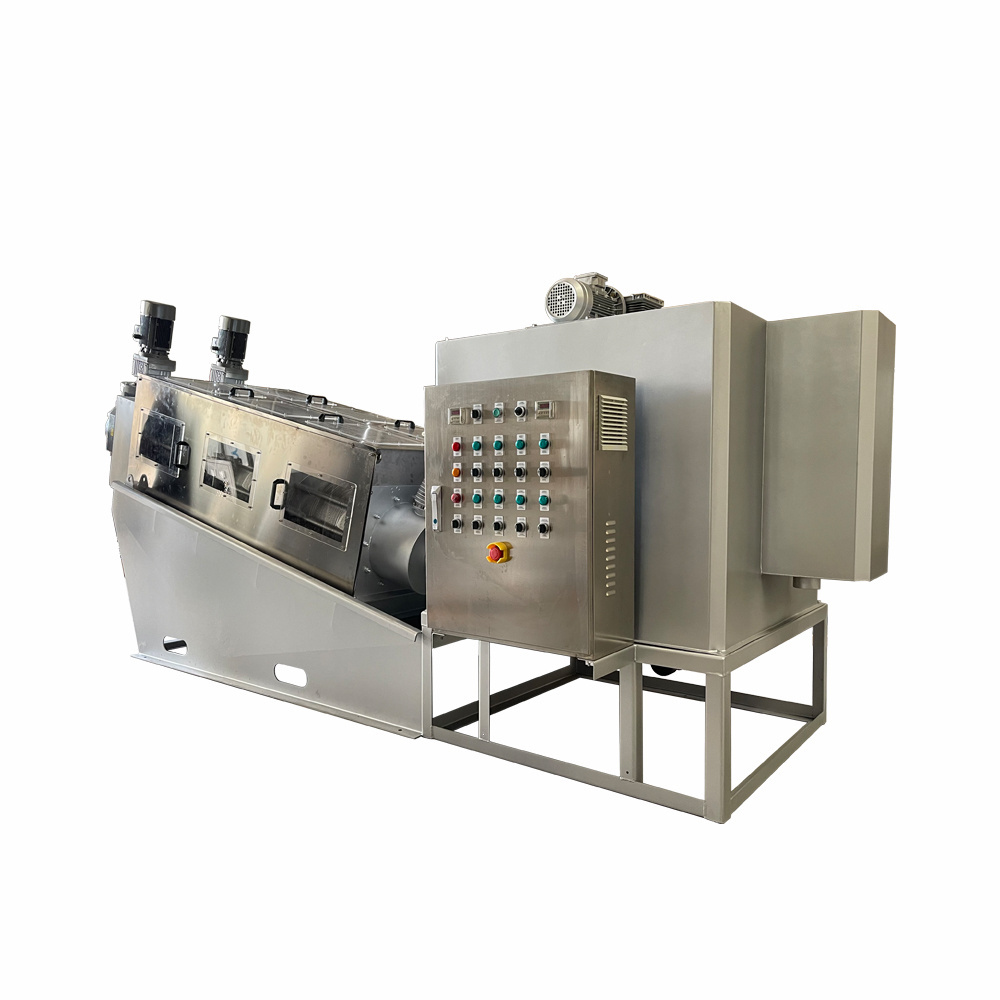

The main body of the screw-type sludge dewatering machine is composed of multiple fixed rings, a moving ring and a spiral filter part, which organically combines the filtration concentration technology and the pressing technology, and completes the sludge concentration and pressing and dehydration in one cylinder; In the cavity, it uses the relative swimming between the fixed and movable laminations to quickly discharge the filtrate and never block it; in the dehydration cavity, the continuous shrinkage of the volume in the spiral cavity is used to enhance the internal pressure and the pressure regulation mechanism of the back pressure plate, so that the The unique and subtle filter body mode replaces the traditional filter cloth and centrifugal filtering methods, and its advanced solid-liquid separation and self- cleaning technology will create a new era of sludge dewatering.
Working Principle
Parameters
|
Standard sizes/Model
|
Model
|
DL-101
|
DL-102
|
DL-201
|
DL-202
|
DL-301
|
DL-302
|
|
|
Throughput (m³/h)
|
Mud inlet concentration(S.S.0.2-0.5%)
|
0.6-1.5
|
1.2-3.0
|
1.8-4.5
|
3.6-9.0
|
6.0-15
|
12-30
|
|
|
|
Mud inlet concentration(S.S.0.5-2.0%)
|
0.25-0.6
|
0.5-1.2
|
0.75-1.8
|
1.5-3.6
|
2.5-6.0
|
5.0-12
|
|
|
|
Mud inlet concentration(S.S.2.0-5.0%)
|
0.1-0.25
|
0.2-0.5
|
0.3-0.75
|
0.6-1.5
|
1.0-2.5
|
2.0-5.0
|
|
|
Absolute drying capacity（kg/h）
|
Mud inlet concentration(S.S.0.2-0.5%)
|
0-3.0
|
2.4-6.0
|
3.6-9.0
|
7.2-18
|
12-30
|
24-60
|
|
|
Absolute dry weight(kg/h)
|
Mud inlet concentration(S.S.0.5-2.0%)
|
0-5.0
|
5.0-10
|
9.0-15
|
18-30
|
30-50
|
50-100
|
|
|
|
Mud inlet concentration(S.S.2.0-5.0%)
|
0-5.0
|
5.0-10
|
9.0-15
|
18-30
|
30-50
|
50-100
|
|
|
Mud cake water content(%)
|
Mud cake water content(%)
|
75-85
|
75-85
|
75-85
|
75-85
|
75-85
|
75-85
|
|
|
Screw gauge diameter(mm)*Number(Root)
|
|
100*1
|
100*2
|
200*1
|
200*2
|
300*1
|
300*2
|
|
|
Use power(KW)
|
Use power(KW)
|
0.2
|
0.3
|
0.6
|
0.8
|
0.8
|
1.2
|
|
|
Equipment Oimensions (mm)
|
L
|
1816
|
1816
|
2500
|
2500
|
3255
|
3455
|
|
|
|
W
|
756
|
910
|
850
|
935
|
985
|
1295
|
|
|
|
H
|
1040
|
1040
|
1270
|
1270
|
1600
|
1600
|
|
|
Reference weight(kg)
|
Reference weight(kg)
|
190
|
275
|
360
|
470
|
820
|
1350
|
|
