Quick Details
-
Compatible With:
-
MeccAlte Voltage Regulator
-
Product Name:
-
MeccAlte Genset AVR
-
Usage:
-
MeccAlte AVR DER
-
Function:
-
MeccAlte AVR DER1
-
Similar AVR:
-
SR7-2G, DSR, DER1, UVR6
-
Original AVR:
-
ASR, DER1/A, DER2, DECS-150
-
Gross Weight:
-
0.35KG
-
Stock Status:
-
In stock
Quick Details
-
Place of Origin:
-
China
-
Replaced Brand:
-
Meccalte
-
Warranty:
-
1 Year
-
Compatible With:
-
MeccAlte Voltage Regulator
-
Product Name:
-
MeccAlte Genset AVR
-
Usage:
-
MeccAlte AVR DER
-
Function:
-
MeccAlte AVR DER1
-
Similar AVR:
-
SR7-2G, DSR, DER1, UVR6
-
Original AVR:
-
ASR, DER1/A, DER2, DECS-150
-
Gross Weight:
-
0.35KG
-
Stock Status:
-
In stock

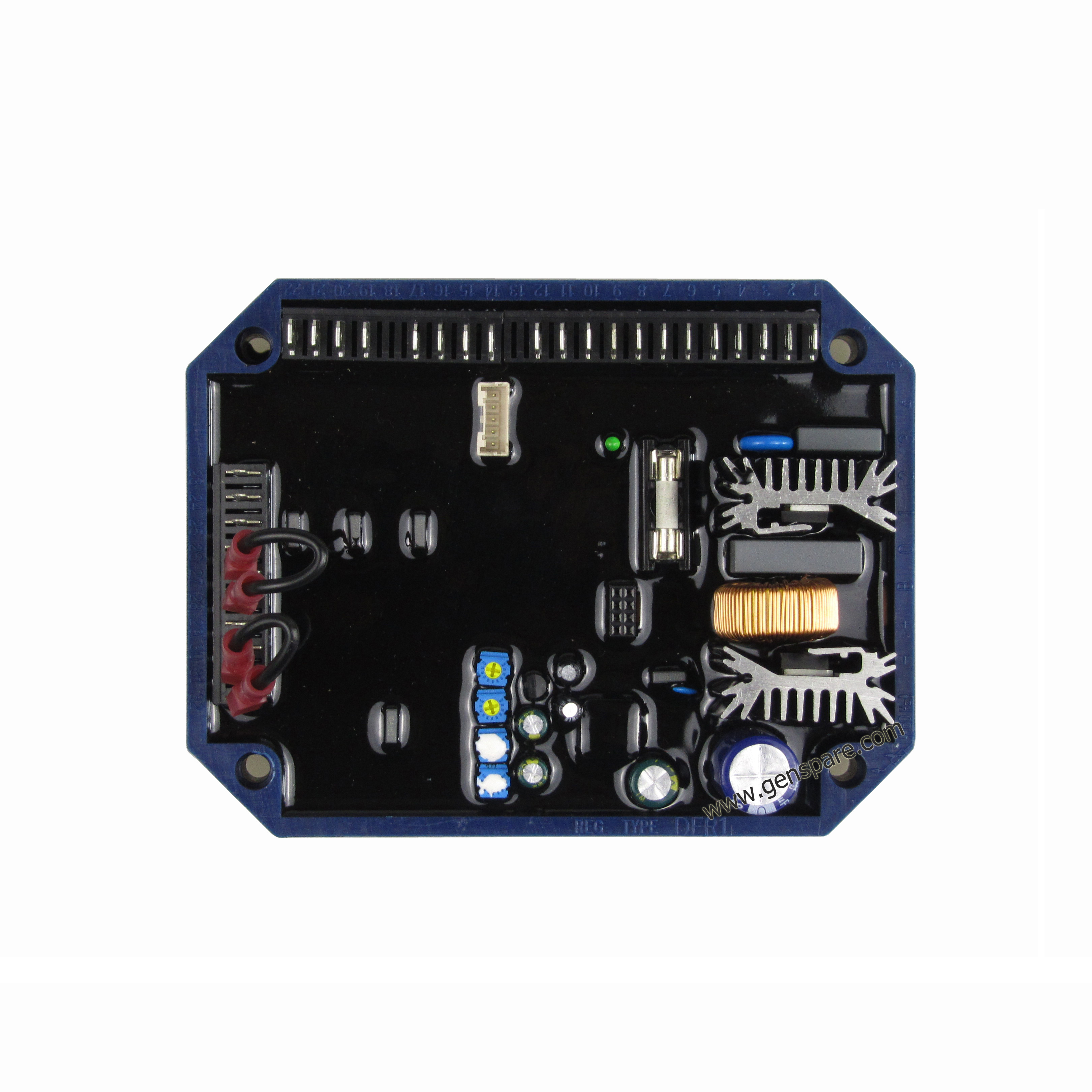

Replace Meccalte Genset AVR DER DER1 Voltage Regulator
The brands / Part No. mentioned here are for reference purpose only, we provide Replacement model / not Original Meccalte product!
The Meccalte DER AVR is a voltage regulator for synchronous alternators, designed for stand alone working and calibration; to maximize performances, the regulator should be intended as part of a system made up of at least three components: the Meccalte AVR DER1 Voltage Regulator (control unit), a communications module (USB2DxR, for example) and a supervision unit, as illustrated in figure 6.
DER Series AVR have Two versions of the DER 1 and DER 1/A available; Meccalte DER1 AVR is optimised for Meccalte Series 3 to 38 alternators, while Meccalte DER1/A AVR is optimised for Meccalte series 40, 43 and 46 alternators; the two versions differ primarily in the default parameters. NOTE: the parameter that defines the output voltage (with the VOLT trimmer disabled) is set on 0 (so that the adjustment takes place on the minimum voltage).
Characteristics of DER Meccalte Genset AVR
|
Variable voltage supply |
40 ÷ 270 Vac |
|
Frequency range |
12 Hz ÷ 72 Hz |
|
Precision of voltage regulation |
± 1% |
|
Precision of voltage regulation (stabilized condition) |
± 0,5% |
|
Maximum continuous output current |
5 Adc |
|
Environmental temperature |
-25°C ÷ +70°C |
|
Voltage regulation |
75÷300 Vac |
|
Transient voltage drop and overvoltage |
within ± 15% |
|
Voltage recovery time |
within ± 3% of the value set, in less than 300 msec |
|
Sensing |
Single phase or Three phase |
|
Parameters (can be programmed via software) |
VOLT, STAB, AMP and Hz can be set with trimmers (default) |
|
50/60Hz through a “jumper” (default) |
