Quick Details
-
Brand Name:
-
Acorid / Neutral / OEM
-
Model Number:
-
LS1710P
-
Place of Origin:
-
Guangdong, China
-
Dimensions (W x D x H):
-
200mm(L) * 118mm(W) *44mm(H)
-
Brand:
-
Acorid, Neutral or OEM
-
New function:
-
Digital Tube Power Display; AI detect and Reboot IPC (PDs)
-
MAC Address:
-
4K
-
DIP Model:
-
Switch, Vlan, Extender
-
Keyword:
-
Eterprise Switch
-
Supports PoE Power Maximum:
-
30 watts for each PoE port
-
Other:
-
Support PoE Port Priority
-
Certification:
-
CE RoHS FCC
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2 Gbps
-
Brand Name:
-
Acorid / Neutral / OEM
-
Model Number:
-
LS1710P
-
Place of Origin:
-
Guangdong, China
-
Dimensions (W x D x H):
-
200mm(L) * 118mm(W) *44mm(H)
-
Brand:
-
Acorid, Neutral or OEM
-
New function:
-
Digital Tube Power Display; AI detect and Reboot IPC (PDs)
-
MAC Address:
-
4K
-
DIP Model:
-
Switch, Vlan, Extender
-
Keyword:
-
Eterprise Switch
-
Supports PoE Power Maximum:
-
30 watts for each PoE port
-
Other:
-
Support PoE Port Priority
-
Certification:
-
CE RoHS FCC

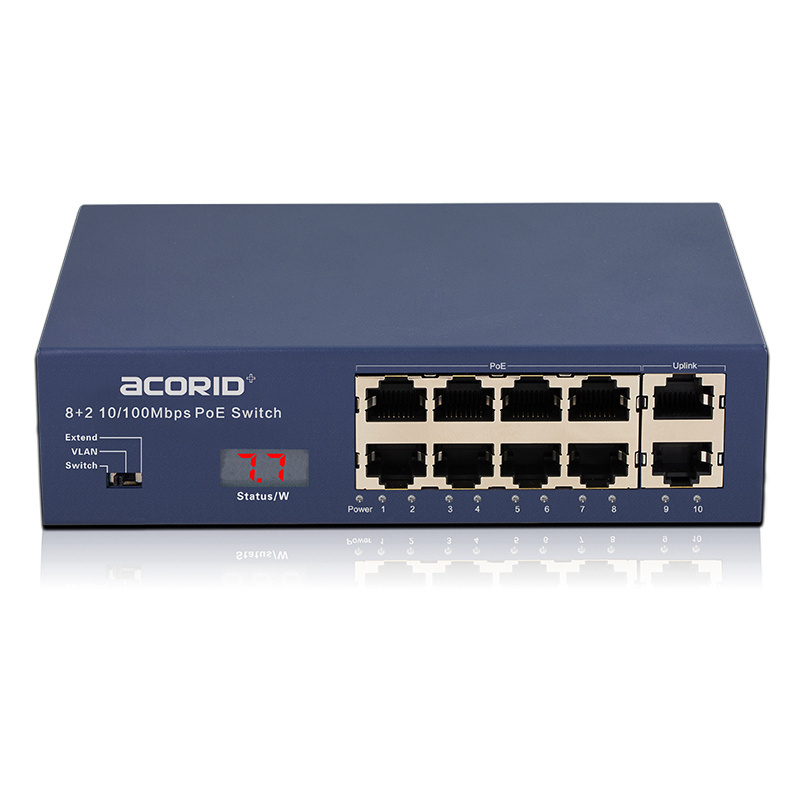

SIP/IP Speaker CCTV Network Switcher Vlan/poe/qos/extend Poe Eterprise Switch
1. Total: 10 ports
2. POE Port: 8 100Mbps PoE
3. Uplink Port: 2 100Mbps RJ45
4. Bandwidth: 2Gbps
5. PoE Power Budget: 96W
6. Compliant IEEE 802.3 af/at Standard
7. Packet forwarding: 1.488Mpps
8. Mac Address: 4K
9. Support PoE Port Priority
10. Display the Current PoE power consumption
11. Support AI detect and Reboot IPC (PDs)
12. Support DIP Model in Switch, Vlan, Extender:
Vlan mode, Isolate each poe port 1-8, effectively
improve network performance.
PoE Extender, data & power distance Max 250m. (Eterprise Switch)
|
Model |
LS1708P2E (Eterprise Switch) |
|
Hardware Specifications |
|
|
Network Connectors |
8x 10/100Mbps+ 2*10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports |
|
PoE Inject Port |
8-port with 802.3af/at PoE injector function(Port 1 to Port 8) |
|
LED I ndicators |
PWR, POE MAX,PoE Indicator,Link/Act |
|
Proccessing T ypes |
Store and forward |
|
Transmission M odel |
IEEE802.3X full-duplex and Backpressure half-duplex |
|
Input volatage |
AC 200~240V50/60Hz |
|
Dimension |
200mm(L)*118mm(W)*44mm(H) |
|
Cable requirements |
UTP cat5 or abov e |
|
Backplane bandwidth |
2 Gbps |
|
Packet forwarding rate |
1.488 Mpps |
|
MAC address |
4 k |
|
Power over Ethernet |
|
|
MAX POE output |
30W |
|
Total power consumption |
96W |
|
POE port priority |
Support |
|
Standard Conformance |
|
|
EMI Safety |
FCC,CE,RoHS |
|
Standard Compliance |
IEEE802.3i 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3az EEE |
|
Environment |
|
|
Operating temperature |
-10℃~45℃ |
|
operating humidity |
10%~90% |
|
Storage temperature |
-20℃~70℃ |
|
storage humidity |
5%~95% |
IEEE802.3af/at PoE Desktop Switch
Port 1-8 PoE fast Ethernet downlink support PoE+, Max.PoE output for each port is up to 30W;
And the total power budget is 96W
8FE(PoE)+2GE Unmanaged PoE Switch
which is an ideal solution to meeting the demand for sufficient PoE power for network applications.
The eight 802.3at/af PoE ports provide PoE power injector function
Supports the priority mechanism
It can ensure that in the case of an emergency, minimize the loss of data
packet , delay the probability of data, and smooth playback
of surveillance video in real time
Plug&Play, Easy to Operation
Automatic address learning and address aging,
Auto-negotiation and auto MDI/MDI-X,
Flow control for full duplex operation and back pressure for half duplex opera tion
TI Chipset
Conforms to the IEEE 802.3af/at PoE power supply standard,
automatically recognizes PoE devices for power supply,
without damaging non-POE devices
AI Roboot Technology
This function can ensure that when the camera crashes,
it will automatically recovery to the normal state
and without manual intervention so that reducing the after-sales maintenance
costs
