Quick Details
-
Brand Name:
-
Hurui
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3809*2092mm
-
Weight:
-
5500 KG
-
Features:
-
automatic
-
MOQ:
-
1 Piece
-
Usage:
-
Carding machine
-
Quality:
-
High-quality
-
Machine Type:
-
Textile Machiney
-
Name:
-
CARDING MACHINE
-
Brand:
-
Hurui
-
Package:
-
Wooden Box
-
Feature:
-
Apply
Quick Details
-
Application:
-
cotton carding machine
-
Production Capacity:
-
20kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hurui
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3809*2092mm
-
Weight:
-
5500 KG
-
Features:
-
automatic
-
MOQ:
-
1 Piece
-
Usage:
-
Carding machine
-
Quality:
-
High-quality
-
Machine Type:
-
Textile Machiney
-
Name:
-
CARDING MACHINE
-
Brand:
-
Hurui
-
Package:
-
Wooden Box
-
Feature:
-
Apply

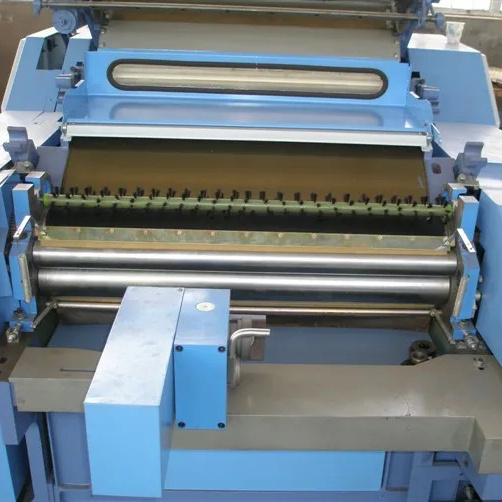

Products Description
This production line consists of an opening machine, a cotton feeding box, a carding machine and one or more independently controlled coilers. Can be equipped with multiple carding machines at the same time.
Usage: used in the production of combing cotton swabs, cotton balls, medical cotton, and cosmetic cotton
Features: The absorbent cotton is opened by the opening machine and put into the cotton box. The cotton box is evenly fed into the carding machine. It can be equipped with 4 coilers, and the minimum cotton sliver can be carded out is 1.0 g/m.
Certifications
|
Production ration
|
1.0 ～ 15.0 g/m
|
|
Yield
|
up to 20 kg/h
|
|
Working width
|
1000mm
|
|
Total draft ratio
|
67 ～ 120
|
|
Working diameter of take-in roller
|
φ 250 mm
|
|
Working speed of cotton chemical fiber take-in roller
|
1070 rpm (cotton), 980 rpm (chemical fiber)
|
|
Cylinder working diameter
|
φ 1289 mm
|
|
Doff working diameter
|
φ 706 mm
|
|
Doffer working speed
|
21.3~38.2 rpm
|
|
Cotton chemical fiber cover plate speed
|
177 214 266 mm/min, 81 98 122 mm/min
|
|
Applicable sliver drum
|
φ six hundred × 900 mm
|
|
Wind pressure
|
- 500~- 600 Pa
|
|
Main motor
|
3.3 kW
|
|
Doffer drive motor
|
1.5 kW (variable frequency, digital display user can choose)
|
|
Floor area (long × Width)
|
3809 × 2092 mm
|
|
Total weight
|
about 5500kg
|
