Quick Details
-
Function:
-
Charging
-
Brand Name:
-
Shengyoude
-
Model Number:
-
QX1200
-
Input voltage and current:
-
90V-260V
-
output voltage and current:
-
12V/30A 24V/30A 48V/20A 60V/20A 72V/18A
-
Maximum Output Power:
-
1200W
-
Place of Origin:
-
Zhengzhou,China
-
Product name:
-
Waterproof Battery Charger
-
Battery type:
-
Lifepo4/lithium /Lead Acid Battery
-
Certification:
-
CE ROHS
-
Efficiency:
-
≥ 93% ( full loading )
-
Application:
-
Electric Vehicle E-bike Scooter
-
Logo:
-
Customer Logo
-
Plug:
-
Customers' Requirements
-
Warranty:
-
24 Months
-
OEM/ODM:
-
Provide
-
MOQ:
-
1pc
Quick Details
-
Type:
-
Electric, Power Supply Adapter
-
Port:
-
DC, AC
-
Material:
-
Aluminium
-
Function:
-
Charging
-
Brand Name:
-
Shengyoude
-
Model Number:
-
QX1200
-
Input voltage and current:
-
90V-260V
-
output voltage and current:
-
12V/30A 24V/30A 48V/20A 60V/20A 72V/18A
-
Maximum Output Power:
-
1200W
-
Place of Origin:
-
Zhengzhou,China
-
Product name:
-
Waterproof Battery Charger
-
Battery type:
-
Lifepo4/lithium /Lead Acid Battery
-
Certification:
-
CE ROHS
-
Efficiency:
-
≥ 93% ( full loading )
-
Application:
-
Electric Vehicle E-bike Scooter
-
Logo:
-
Customer Logo
-
Plug:
-
Customers' Requirements
-
Warranty:
-
24 Months
-
OEM/ODM:
-
Provide
-
MOQ:
-
1pc

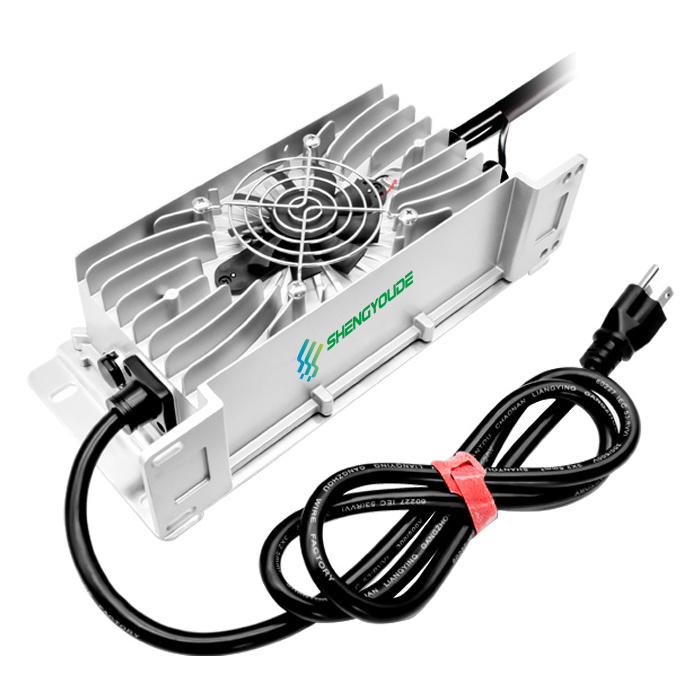

Factory 12V 24v 36v 48v 60v 72v Customized Lithium 15A 18A 20A 30A Lifepo4 OBC Battery Charger for Bike Golf Cart
Products Description
Net Weight: 2.5kg
Housing: Aluminium case
Input Voltage : AC 180-260V/AC 90-260V 50HZ/60HZ
Efficiency : ≥ 93% ( full loading )
Application : 12v 24v 36v 48v 60v 72v 96v battery charger
Certification: CE,ROHS
Protection: Short circuit protection,Overload protection,Over-Temperature protection,Overvoltage protection,Overcurrent protection,Low voltage protection,Reverse polarity protection
Warranty: 2 years
Housing: Aluminium case
Input Voltage : AC 180-260V/AC 90-260V 50HZ/60HZ
Efficiency : ≥ 93% ( full loading )
Application : 12v 24v 36v 48v 60v 72v 96v battery charger
Certification: CE,ROHS
Protection: Short circuit protection,Overload protection,Over-Temperature protection,Overvoltage protection,Overcurrent protection,Low voltage protection,Reverse polarity protection
Warranty: 2 years
|
QX1200 Battery Charger Parameter
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Input voltage: 90VAC~260VAC 50HZ/60HZ
|
CV
|
|
|
CC
|
Transition /
Cut-off Current
|
|
Net Weight
|
Size
|
Package
|
|||||||||
|
Input voltage
|
Lead Acid
|
Li-MnO2
|
LiFePO4
|
A
|
Lead Acid (A)
|
Li(A)
|
kg
|
mm
|
pcs/ctn
|
|||||||||
|
12V
|
14.7V
|
16.8V
|
14.6V
|
30A
|
4A
|
3A
|
2.5
|
281*128*80
|
6
pcs/ctn
|
|||||||||
|
24V
|
29.4V
|
33.6V
|
29.2V
|
30A
|
2.7A
|
2A
|
|
|
|
|||||||||
|
48V
|
58.8V
|
54.6V
|
58.4V
|
20A
|
2.7A
|
2A
|
|
|
|
|||||||||
|
60V
|
73.5V
|
71.4V
|
73V
|
20A
|
2.7A
|
2A
|
|
|
|
|||||||||
|
72V
|
88.2V
|
84V
|
87.6V
|
18A
|
2.4A
|
1.8A
|
|
|
|
|||||||||
|
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Product advantages
|
|
|
|
|
||||
|
Factory
|
|
Factory wholesale price , more than 10 years factory production experience in battery charger industry.
|
|
|
||||
|
Certificate
|
|
All products passed CE & ROHS certification
|
|
|
||||
|
Efficiency
|
|
High efficiency ≥ 93% , high performance , stable and durable
|
|
|
||||
|
Protection
|
|
Short circuit protection, timing protection, temperature protection and overshoot protection
|
|
|
||||
|
Function
|
|
Intelligent charging, express charging, pulse maintenance, balanced charging and temperature compensation
|
|
|
||||
|
Charging process
|
|
Intelligent six stage charging process:
constant voltage charging, constant current charging, fast charging, pulse charging,balanced charging and constant voltage current limiting charging
|
|
|
||||
|
Warranty
|
|
Our warranty period is for 2 years
|
|
|
||||
|
others
|
|
Automatic smart battery charger , easy to use and convenience to carry
|
|
|
||||
|
|
|
Our smart charger can restore battery capacity and prolong battery life
|
|
|
||||
Input Plug from A to L, Output Plug from 1 to 20, choose according to your demand.
If you have any special requirement, please contact us!
Application
It charge those power batteries for Golf carts,sightseeing vehicles,electric forklifts,patrol cars,floor scrubbers,electronic
tricycles,e-boats,mini EV,industial vehicles, balance scooter, electric mower,aerial work platform floor,motorcycles,etc.
