Quick Details
-
Ejector Stroke(mm):
-
60 mm
-
Ejector Force(kN):
-
27 kN
-
Theoretical Shot Volume(cm³):
-
112.5 cm³
-
Injection Rate (g/s):
-
62 g/s
-
Injection Weight (g):
-
101 g
-
Screw Speed (rpm):
-
100 - 200 rpm
-
Screw diameter (mm):
-
32 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
320 x 320 mm
-
Weight (KG):
-
2700
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
290 mm
-

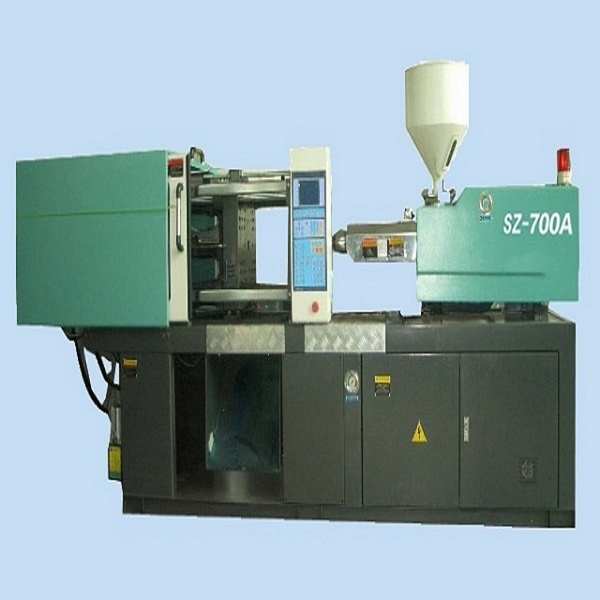

Model Number:
-
SZ-700A
-
Brand Name:
-
AIBIM
-
Power (kW):
-
6.2 kW
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field maintenance and repair service, Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE ISO
Quick Details
-
Plasticizing Capacity(g/s):
-
11
-
Mold Height(mm):
-
100 - 320 mm
-
Ejector Number:
-
1
-
Ejector Stroke(mm):
-
60 mm
-
Ejector Force(kN):
-
27 kN
-
Theoretical Shot Volume(cm³):
-
112.5 cm³
-
Injection Rate (g/s):
-
62 g/s
-
Injection Weight (g):
-
101 g
-
Screw Speed (rpm):
-
100 - 200 rpm
-
Screw diameter (mm):
-
32 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
320 x 320 mm
-
Weight (KG):
-
2700
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
290 mm
-
Model Number:
-
SZ-700A
-
Brand Name:
-
AIBIM
-
Power (kW):
-
6.2 kW
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field maintenance and repair service, Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE ISO
Product Description
Specification
|
item
|
value
|
|
Plastic Processed
|
PP, PC, ABS, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid, AS PS PPS PBT POM PMMA
|
|
Condition
|
New
|
|
Style
|
VERTICAL
|
|
Plasticizing Capacity(g/s)
|
11
|
|
Mold Height(mm)
|
100mm - 320mm
|
|
Ejector Number
|
1
|
|
Ejector Stroke(mm)
|
60mm
|
|
Ejector Force(kN)
|
27kN
|
|
Theoretical Shot Volume(cm³)
|
112.5cm³
|
|
Injection Rate (g/s)
|
62g/s
|
|
Machine Type
|
Electric
|
|
Injection Weight (g)
|
101g
|
|
Screw Speed (rpm)
|
|
|
Screw diameter (mm)
|
32mm
|
|
Screw L/D Ratio
|
20
|
|
Distance between Tie Bars
|
320 x 320 mm
|
|
Weight (KG)
|
2700
|
|
Type
|
Injection Blow Molding
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Open Stroke(mm)
|
290mm
|
|
Model Number
|
SZ-700A
|
|
Brand Name
|
AIBIM
|
|
Certification
|
CE ISO
|
|
Power (kW)
|
6.2kW
|
|
Warranty
|
1 Year
|
|
|
Video technical support, Free spare parts, Field maintenance and repair service, Online support
|
|
Key Selling Points
|
Automatic
|
|
Applicable Industries
|
Food & Beverage Factory, Home Use, Retail, Food & Beverage Shops, Other
|
|
After Warranty Service
|
Video technical support, Online support
|
|
Local Service Location
|
None
|
|
Showroom Location
|
None
|
|
Marketing Type
|
New Product 2020
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Motor, Pump, PLC, Engine
|
Packing & Delivery
sea worthy package
