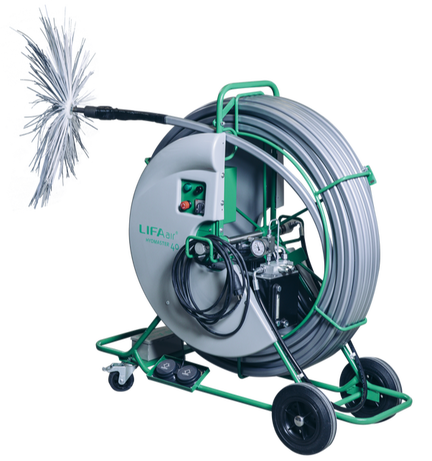

The force that rotates the brush is produced hydraulically along the flexible shaft. The built-in hydraulic pump provides an alternative to large, expensive, noisy, and non-user friendly pneumatic cleaning machines that use compressors. The Hydmaster operates on single phase voltage (240 VAC or 110-120 VAC) and is distinctly quieter than air-jetting machines using compressed air. This makes the Hydmaster extremely easy to carry and use.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Finland, Finland
-
Brand Name:
-
Lifa Air
-
Use:
-
Cleaning
-
Dimension(L*W*H):
-
1100*570*1290mm
-
Weight (KG):
-
93 kg
-
Certification:
-
CE and Others
-
After-sales Service Provided:
-
No overseas service provided
-
Product Name:
-
Lifa CombiClean 40
-
Dimension:
-
1100*570*1290mm
-
Key words:
-
Ventilation Cleaning
-
Shaft length:
-
40m
-
Air flow level:
-
300-600 l/min at 7-10 bar
-
Brush rotation speed:
-
0-760 rpm
-
Control:
-
Hand control
Quick Details
-
Cleaning Process:
-
Compressed air
-
Power:
-
1.1kw
-
Max. Pressure:
-
17Mpa
-
Place of Origin:
-
Finland, Finland
-
Brand Name:
-
Lifa Air
-
Use:
-
Cleaning
-
Dimension(L*W*H):
-
1100*570*1290mm
-
Weight (KG):
-
93 kg
-
Certification:
-
CE and Others
-
After-sales Service Provided:
-
No overseas service provided
-
Product Name:
-
Lifa CombiClean 40
-
Dimension:
-
1100*570*1290mm
-
Key words:
-
Ventilation Cleaning
-
Shaft length:
-
40m
-
Air flow level:
-
300-600 l/min at 7-10 bar
-
Brush rotation speed:
-
0-760 rpm
-
Control:
-
Hand control
Technical Specifications
|
Operating Power
|
Electricity (brush motor hydraulic)
|
|
Operating voltage and frequency
|
240 VAC (or 110-120 VAC), 1 ~, 50 / 60 Hz
|
|
Motor
|
1,1 kW (1.5 hp)
|
|
Fuse
|
16 A
|
|
Max torque
|
10 Nm (7.4 ft-lb)
|
|
Brush Connection
|
M12
|
|
Duct Size Recommendation
|
400 - 1200 mm (15.7 - 47.2")
|
|
Brush Rotation Speed
|
Continuous Adjustment, 225 - 880 rpm
|
|
Rotation Controls
|
Foot Pedal, Remote Hand Control (Accessory)
|
|
Nozzle Connection
|
-
|
|
Air Volume Consumption
|
-
|
|
Measurements (H x L x W)
|
1290 x 1100 x 570 mm (50.8 x 43.3 x 22.4")
|
|
Weight
|
93 kg (205 lbs)
|
|
Cleaning Shaft
|
40 m (131 ft.)
|
|
Accessories
|
Y-Gear
3-Brush-Gear Mechanical Centering Device Hand Controller |
Product Description
The Hydmaster model that comes with a video camera monitors the effects and results of the cleaning that is being performed. The monitor also offers the ability to see any potential obstacles that may prove to be a nuisance. The video camera also monitors silencers and sound attenuators, which are used for noise control. In addition, the camera can also monitor automatic and manual
air volume, as well as, other control apparatus of the ventilation system. Using the video camera monitor enables you to avoid unexpected problems and can save you from a lot of frustrating headaches.
air volume, as well as, other control apparatus of the ventilation system. Using the video camera monitor enables you to avoid unexpected problems and can save you from a lot of frustrating headaches.
The Lifa Hydmaster is designed for both rectangular and round ventilation ducts ranging from 400 - 1200mm (15.7 - 47.2"). The rotating speed is adjustable from 225 to 880 r/min. When set to maximum, Lifa Hydmaster’s torque, otherwise known as brushing force, is more powerful than that of any other cleaning machine. The machine can then rotate its oversized brush in narrow and smaller size ducts. You won’t have to change brushes as often with the Hydmaster, as you do with other machines. It also has and can be used, with Lifa’s specific written approval, for many other purposes (e.g. cleaning of accumulated dirt and sediment from different process pipes).
The Hydmaster is Lifa’s flagship product and is protected by a patent.
Lifa Y-Gear (accessory) gives an extra cleaning force for the corners in rectangular ducts.
* The strongest cleaning machine on the market by far
* 40-metre (131 ft.) range cleaning axis/shaft
* For large ducts: ranging from 400 - 1200mm (15.7 - 47.2")
* Max. torque 10 Nm (7.4 ft-lbs)
* 40-metre (131 ft.) range cleaning axis/shaft
* For large ducts: ranging from 400 - 1200mm (15.7 - 47.2")
* Max. torque 10 Nm (7.4 ft-lbs)
* Adjustable brush rotation speed 225 - 880 rpm
* Pneumatic foot pedal for operating and changing direction of brush rotation
* Wheel mounted for easy mobility
* Operates on single-phase current (normal plug-in electricity)
* Pneumatic foot pedal for operating and changing direction of brush rotation
* Wheel mounted for easy mobility
* Operates on single-phase current (normal plug-in electricity)
