Wire Connector Spade Terminals ST-2 With Custom Color Rubber Insulator

Wire Connector Spade Terminals ST-2 With Custom Color Rubber Insulator

FOB Reference Price: Get Latest Price

≥50 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Red, Black, can be customized

Application:: Cable Connection

Company Certification:: ISO 9001-2008

Quick Details

Place of Origin:: Maharashtra, India

Brand Name:: GAURANG

Model Number:: Spade Terminals ST-2

Color:: Red, Black, can be customized

Application:: Cable Connection

Company Certification:: ISO 9001-2008

Product Description

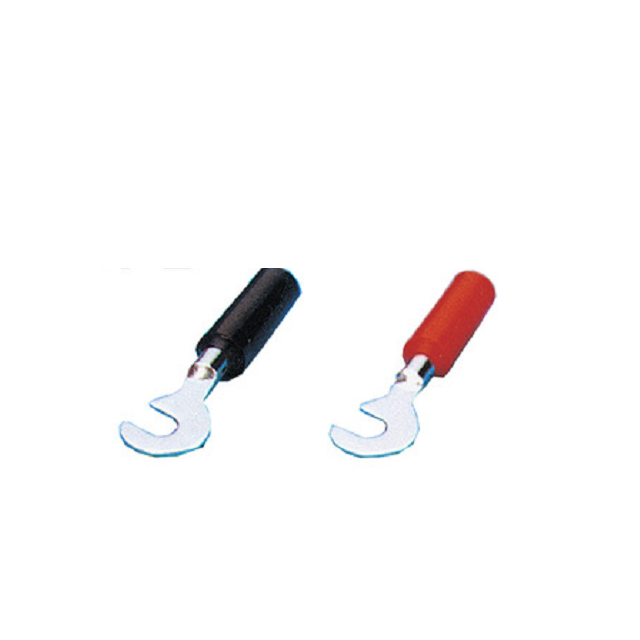

Spade Terminals ST-2

Detail features with all available accesories in Terminals is as follows.

Spade Terminals
Spade Terminal has straight or side slot for connection to spindle of Terminal. It also has solderable lead. Insulating Handle is molded in Thermoplastic material available in Red & Black.

ST-1 STH-1	ST-2	ST-1-90D

Binding Post Terminals
Binding Post Terminals have heads with 4mm socket. (Except GT -3 which has 2mm socket hole). Cross holes are provided in the spindles for cable connection. Panel fitting is achieved by insulating bushes, two lock nuts and plain washer. All Brass parts are Bright Nickel plated.

SPECIFICATION

Parameter	ST - 1 ST - 2	STH - 1	GT - 3	GTO - 5 GTOL - 5	GT - 10	GT - 15	GT - 30
Current Rating	10A	15A	3A	5A	10A	15A	30A
Contact Resistance	5 Mohms Max	5 Mohms Max	10 Mohms Max	5 Mohms Max	5 Mohms Max	5 Mohms Max	5 Mohms Max
Flash over Voltage	1.2 K. V. min.	1.2 K. V. min.	1 K. V. min.	1.2 K. V. min.	1.2 K. V. min.	2 K. V. min.	2 K. V. min.
Insulation Resistance	1000 Mohms Max	1000 Mohms Max	1000 Mohms Max	1000 Mohms Max	1000 Mohms Max	1000 Mohms Max	1000 Mohms Max
Max. Working Temp.	70 ^o C	70 ^o C	70 ^o C	70 ^o C	70 ^o C	100 ^o C	100 ^o C

Detail Drawing
