Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
7600*2100*3100 mm
-
Machine Weight:
-
6300KG
-
Bucket capacity:
-
1.3m3
-
Warranty of core components:
-
1 year
-
Digging Depth:
-
52mm
-
Backhoe Capacity:
-
0.3m3
-
Max. Digging Depth:
-
4082mm
-
Certification:
-
BV CE TUV EPA ISO
Quick Details
-
Engine Brand:
-
Yunnei
-
Power:
-
76KW
-
Brand Name:
-
HERACLES
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
7600*2100*3100 mm
-
Machine Weight:
-
6300KG
-
Bucket capacity:
-
1.3m3
-
Warranty of core components:
-
1 year
-
Digging Depth:
-
52mm
-
Backhoe Capacity:
-
0.3m3
-
Max. Digging Depth:
-
4082mm
-
Certification:
-
BV CE TUV EPA ISO
|

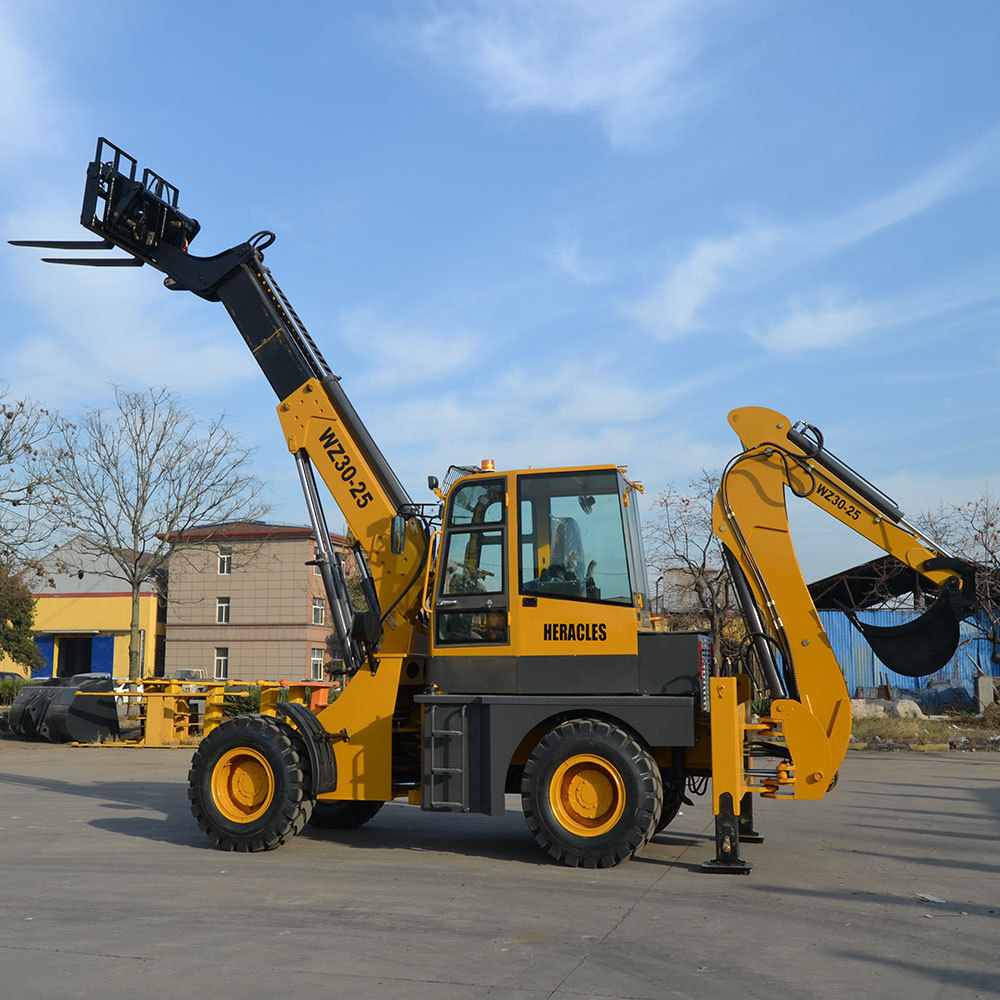

The Performance Parameter of Backhoe Loader WZ30-25 |
|
|
Overall Operating Weight |
6300KG |
|
Transport Dimension |
|
|
L*W*H ( mm ) |
7600×2100×3100 |
|
Wheel base |
2250mm |
|
Min. Ground Clearance |
300mm |
|
Bucket Capacity |
1.3m 3 |
|
Breakout Force |
38KN |
|
Loading Lifting Capacity |
2500KG |
|
Bucket Dumping Height |
3500mm |
|
Bucket Dumping Distance |
1022mm |
|
Digging Depth |
52mm |
|
Backhoe Capacity ( Width ) |
0.3m 3 (520mm) |
|
Max. Digging Depth |
4082mm |
|
Swing Angle of backhoe |
190 o |
|
Max. Pulling Force |
39KN |
|
Engine |
|
|
Model |
YUNNEI 4102 Turbo |
|
Type |
In Line , Direct injection , Four-Stroke, Water Cooling |
|
Rated Power |
76KW |
|
Rated Speed |
2400r/min |
|
Displacement |
4.4L |
|
Steering System |
|
|
Steering Angle |
±36 o |
|
Min. turning radius |
5018mm |
|
Pressure of the system |
12Mpa |
|
Axle |
|
|
Model |
Wheel Hub Reducer |
|
Final Reducer |
Single Stage Final Reducer |
|
Transmission System |
|
|
Torque Converter |
|
|
Model |
YJ280 |
|
Type |
Single-stage Three Elements |
|
Cooling Method |
Oil-cooling Pressure Circulation |
|
Gearbox |
|
|
Type |
Power Transmission |
|
Gears |
Two Gears Ahead, Two Gears Astern |
|
Max.Speed |
28Km/h |
|
Optional Gears |
Four Gears Ahead, Four Gears Astern |
|
Max.Speed |
40Km/h |
|
Tyre |
|
|
Model |
16/70-20 |
|
Pressure of Front wheel |
0.22 Mpa |
|
Pressure of Back Wheel |
0.22 Mpa |
|
Brake System |
|
|
Service Brake |
Air Over Oil Caliper Brake |
|
External Type |
|
|
Self-regulation |
|
|
Self-balance |
|
|
Parking/emergency braking |
Operation Power Implementing brake |
|
Emergency Brake |
Manual Operation Power Terminating Brake |
|
Hydraulic System |
|
|
Pressure of Hydraulic System |
22Mpa |
Standard Configuration
Front shovel with bucket, rear dig bucket, luxury with interior cab, heater, fan, deluxe adjustable swivel seat, adjustable dashboard, front shovel and rear shovel are hydraulic pilot operated, cab With sliding window, the cab can be turned forward (easy for maintenance), cloud 76KW engine, 16 / 70-20 tires, 280 gearbox, double pump, plus major wheel bridge, A-shaped leg with lock, rear digging Swing with buffering.
PS.The parameters or configuration are subject to change without notice.
