Quick Details
-
Power:
-
24V/4.5KW
-
Min. Lifting Height:
-
1920mm
-
Table Size:
-
2270mm*1120mm
-
Overall Dimensions:
-
2480mm*1180mm*2240mm
-
Weight:
-
2840kg
-
Product name:
-

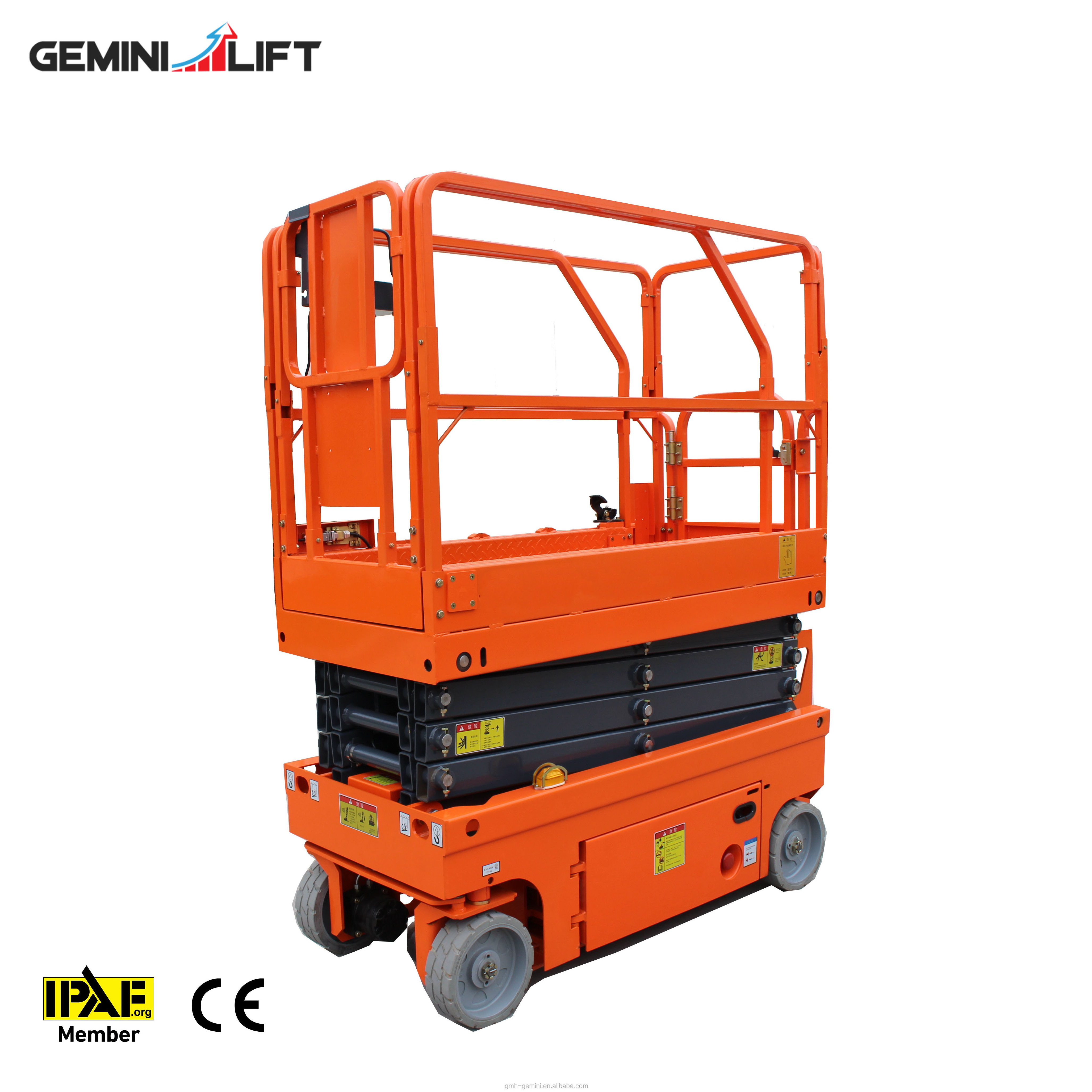

electric scissor lift -- hydraulic drive and electric drive
-
Platform height:
-
10m(1212HD)
-
Certification:
-
CE by TUV SUD, CE,ISO
-
Key point:
-
Dingli Duplicate, but 15% lower in price
-
Factory area:
-
30,000㎡
-
Color:
-
Orange
-
Lifting speed(folded):
-
3.5km/h
-
Overall weight:
-
2840kg
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GMHLIFT
-
Power:
-
24V/4.5KW
-
Min. Lifting Height:
-
1920mm
-
Table Size:
-
2270mm*1120mm
-
Overall Dimensions:
-
2480mm*1180mm*2240mm
-
Weight:
-
2840kg
-
Product name:
-
electric scissor lift -- hydraulic drive and electric drive
-
Platform height:
-
10m(1212HD)
-
Certification:
-
CE by TUV SUD, CE,ISO
-
Key point:
-
Dingli Duplicate, but 15% lower in price
-
Factory area:
-
30,000㎡
-
Color:
-
Orange
-
Lifting speed(folded):
-
3.5km/h
-
Overall weight:
-
2840kg
Product Description
|
Product Series |
electric scissor lift -- hydraulic drive and electric drive.
|
|
Platform height
|
5.8m(0807HD), 8m(1012HD), 10m(1212HD), 12m(1412HD)
|
|
Certification
|
CE by TUV SUD
|
|
Factory area
|
30,000㎡
|
|
Key point
|
Dingli Duplicate, but 15% lower in price.
|
|
Brand name
|
European brand --- Xupley, or Chinese brand GeminiLift
|
Key features
● Strong stability at height;
● Non-marking tires
● True zero inside turning radius, working well in tight areas;
● Swing doors on both sides, easy for maintenance;
● Extended duty cycle due to highly efficient design.
● Safety protections: tilting sensor / overload sensor / pithole protection / automatic braking / manual lowering / automatic stop when overheated / safety valve on hydraulic cylinder
● Non-marking tires
● True zero inside turning radius, working well in tight areas;
● Swing doors on both sides, easy for maintenance;
● Extended duty cycle due to highly efficient design.
● Safety protections: tilting sensor / overload sensor / pithole protection / automatic braking / manual lowering / automatic stop when overheated / safety valve on hydraulic cylinder
Specification
|
Specification
|
Unit
|
HQPT0607
|
HQPT0807HD
|
HQPT0808HD
|
HQPT1008HD
|
HQPT1012HD
|
HQPT1212HD
|
HQPT1412HD
|
HQPT1612HD
|
|
Platform capacity
|
Kg
|
240
|
230
|
380
|
230
|
450
|
320
|
320
|
200
|
|
Extension capacity
|
Kg
|
100
|
113
|
113
|
113
|
113
|
113
|
113
|
113
|
|
Length(L)
|
mm
|
1300
|
1860
|
2480
|
2480
|
2480
|
2480
|
2480
|
2480
|
|
Width(W)
|
mm
|
760
|
760
|
810
|
810
|
1150
|
1180
|
1180
|
1250
|
|
Height(rail up)
|
mm
|
1940
|
2180
|
2200
|
2320
|
2320
|
2440
|
2550
|
2580
|
|
Height(rail down)
|
mm
|
1590
|
1840
|
1870
|
1890
|
1780
|
1920
|
2010
|
2260
|
|
Platform size
|
mm
|
1150x740
|
1670x740
|
2270x810
|
2270x810
|
2270x1120
|
2270x1120
|
2270x1120
|
2640x810
|
|
Extension
|
mm
|
550
|
900
|
900
|
900
|
900
|
900
|
900
|
900
|
|
Ground clearance
(folded)
|
mm
|
50
|
83
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Ground clearance
(raised)
|
mm
|
--
|
16
|
19
|
19
|
19
|
19
|
19
|
19
|
|
Wheel base
|
mm
|
1030
|
1360
|
1870
|
1870
|
1870
|
1870
|
1870
|
2220
|
|
Turning radius
(inner)
|
mm
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
|
Turning radius
(outer)
|
mm
|
--
|
1640
|
2100
|
2100
|
2200
|
2200
|
2200
|
2650
|
|
Lifting motor
|
V/Kw
|
24/0.8
|
24/3.3
|
24/3.3
|
24/3.3
|
24/3.3
|
24/4.5
|
24/4.5
|
24/4.5
|
|
Rising/lowering speed
|
|
|
|
|
|
|
|
|
|
|
Travel speed
(folded)
|
Km/h
|
4.0
|
3.5
|
3.5
|
3.5
|
3.5
|
3.5
|
3.5
|
3.5
|
|
Travel speed
(raised)
|
Km/h
|
0.5
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
|
Battery
|
V/Ah
|
2x12/55
|
4x6/210
|
4x6/225
|
4x6/225
|
4x6/225
|
4x12/300
|
4x12/300
|
4x12/300
|
|
Charger
|
V/A
|
24/11
|
24/25
|
24/25
|
24/25
|
24/25
|
24/25
|
24/25
|
24/25
|
|
Grade ability
|
%
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
|
Max. slope
|
°
|
2
|
1.5/3
|
1.5/3
|
1.5/3
|
1.5/3
|
1.5/3
|
1.5/3
|
1.5/3
|
|
Tires
|
mm
|
Φ230x80
|
Φ305x100
|
Φ381x127
|
Φ381x127
|
Φ381x127
|
Φ381x127
|
Φ381x127
|
Φ381x127
|
|
Overall weight
|
Kg
|
588
|
1465
|
2085
|
2140
|
2485
|
2840
|
2950
|
3100
|
Details Images
Standard configuration
|
American ‘DTC’ main control ECU
|
American ‘DTC’ platform control assy PCU
|
|
American ‘Curtis’ pump station controller
|
Cable & wires - Same as Haulotte supplier
|
|
American ‘Trojan’ battery
|
American ‘White’ manual release pump
|
|
American ‘Parker’ oil pump
|
American valve ‘Hydraforce’
|
|
American ‘Parker’ Tilt sensor
|
American ‘Honeywell’ key lock
|
|
American ‘White’ hydraulic motor
|
Denmak ‘Danfoss’ brake
|
|
Proportional control
|
Automatic baking system
|
|
Automatic pit-hole protection
|
Emergency decline system
|
|
Self-locking door
|
Emergency stop button
|
|
Max. height self-propelled walking
|
Explosion-proof tube
|
|
90°right turning and 75°left turning
|
Fault diagnosis system
|
|
Battery charging protection
|
Inclined protection system
|
|
GPS remote lock function
|
Charging protection
|
|
Overloading protection
|
Maintenance safety bracket
|
Option
1.Maintenance-free battery: USD500 less
2.Chinese brand control system: USD 200 less
2.Chinese brand control system: USD 200 less
The maintenance service policy
1. control system main board: guaranteed for 3 years
2. emergency stop button, operation panel, joy stick : guaranteed for 1 year
3. other spare parts including the hydraulic system, oil pipe, wire & cable, motor, pump etc.: guaranteed for 1 year
4. main structure including the welding, crisscross scissor parts & platform: guaranteed for 5 years
When malfunction occurs, video or picture is required first to pass the our engineer to find out the problem.
After guarantee expires, the cost of spare parts and delivery charge will be afforded by customers. If our engineers' assistance is necessary, the service charge is USD 150/day per person with flights & accommodation afforded by customers.
2. emergency stop button, operation panel, joy stick : guaranteed for 1 year
3. other spare parts including the hydraulic system, oil pipe, wire & cable, motor, pump etc.: guaranteed for 1 year
4. main structure including the welding, crisscross scissor parts & platform: guaranteed for 5 years
When malfunction occurs, video or picture is required first to pass the our engineer to find out the problem.
After guarantee expires, the cost of spare parts and delivery charge will be afforded by customers. If our engineers' assistance is necessary, the service charge is USD 150/day per person with flights & accommodation afforded by customers.
