12mm Momentary Button 3V 5V Blue Red Green Led SPST 12mm 1/2" Mounting Hole Black Aluminum Oxide Metal Push Switch

Momentary 3V Blue LED Illuminated Push Button Switch 1NO SPST DC/AC 36V 2A Aluminum Alloy Metal Shell Suitable for 12mm 1/2" Mounting Hole (Black)

· Momentary Type: Push & Hold - ON, Release – OFF

· Mounting Hole Size: Φ12mm, Switch Rating: 2A/36V DC/AC, Switch Contacts: 1NO

· Tiny Momentary Switch: 1/2" diameter, suitable for tight space application

· IP65 Waterproof & IK08 Protection: Rustproof, can be used in wet or dusty environment

· Used widely: Great for Horn Button Switch, PC Power Switch, Kill Switch or any circuit controls

Product description

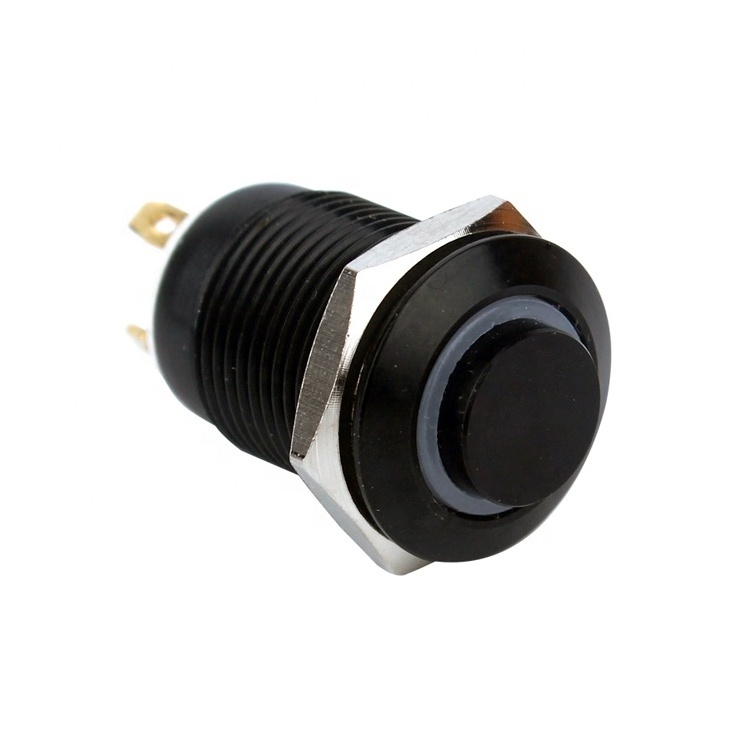

12mm LED Push Button :
These metal buttons are rugged and look real good while doing it! Simply drill a 12mm hole into any material and you can fit these in place, there's even a rubber gasket to keep water out of the enclosure. On the front of the button is a high flush actuator, easy to press. On the back there are 4 contacts for the button. These momentary buttons are rated up to 2A/36VDC.

Momentary Switch:
Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).
These momentary buttons are perfect for Horn Button Switch, PC Power Switch, Kill Switch or any circuit controls. Also great for electronic DIY projects.

Note:
*These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.
*This a SMALL switch, the diameter is 1/2". Maybe it looks smaller than your pinky fingernail. The terminals are very small, need to be very careful when soldering the wires on to them.

Features:
Thread depth: 12mm (1/2")
Drill hole diameter: Φ12mm (1/2")
Head diameter: 14mm (9/16")
Depth include contacts: 19mm (3/4")
Switch rating: 2A / 36VDC
Switch contacts: 1 NO
Operation Type: Momentary
Head shape: High flush
Body material: Aluminum Alloy
Protection level: IP65, IK08
Mechanical life: > 500,000 cycles
Electrical life: > 50,000 cycles

Housing Color: Black

Q1. What is your terms of packing? IP67 waterproof push button switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q9: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
