Quick Details
-
Place of Origin:
-
Guangxi
-
Brand Name:
-
Damo
-
Model Number:
-
DMKG-I
-
Material:
-
Aluminium
-
Switch Type:
-
Momentaru Push Button Switch
-
Mounting Hole:
-
12mm
-
The Front Shape:
-
Ball Head
-
Terminal Type:
-
Default Screw Terminal ( or Pin Terminal)
-
Operatain Type:
-
Momentary
-

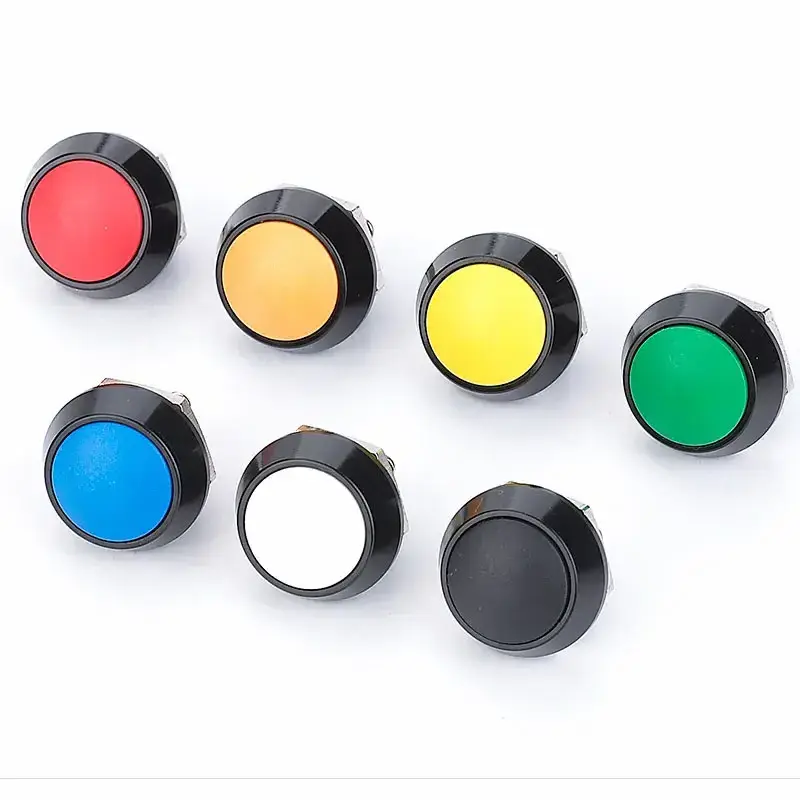

Head color:
-
Default Red (or Blue Yellow Green Orange White Black)
-
Electrical Life:
-
More than 1000000 times
-
Contact configuration:
-
Normal Open
-
illuninated:
-
NO
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
2A
-
Max. Voltage:
-
36V DC
-
Place of Origin:
-
Guangxi
-
Brand Name:
-
Damo
-
Model Number:
-
DMKG-I
-
Material:
-
Aluminium
-
Switch Type:
-
Momentaru Push Button Switch
-
Mounting Hole:
-
12mm
-
The Front Shape:
-
Ball Head
-
Terminal Type:
-
Default Screw Terminal ( or Pin Terminal)
-
Operatain Type:
-
Momentary
-
Head color:
-
Default Red (or Blue Yellow Green Orange White Black)
-
Electrical Life:
-
More than 1000000 times
-
Contact configuration:
-
Normal Open
-
illuninated:
-
NO
Order Note:
Our
RTS order
is f
Pin Terminal
,if you need screw terminal , pls inform us by message,tks!
Product Paramenters
Product Paramenters
|
Brand Name
|
YUESHUN
|
|
Mounting Hole Size
|
12mm
|
|
Max Switch Rating
|
2A / 36VDC
|
|
Contact Configuration
|
1NO
|
|
Operation Type
|
Momentary
|
|
Head Shape
|
Domed
|
|
Terminal Type
|
Default Screw Terminal (or Pin Terminal)
|
|
Head Color
|
Default Red (Or Blue Green Yellow Black White Orange)
|
|
Body Material
|
Aluminum
|
|
Button Material
|
PBT
|
|
Base Material
|
PBT
|
|
Contact Material
|
Silver Plated Copper
|
|
IP Degree
|
IP65
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
Dielectric Strength
|
2000VAC
|
|
Operation Temperature
|
-20℃~+55℃
|
|
Mechanica Life
|
More than 1000,000 cycles
|
|
Electrical Life
|
More than 200000 cycles
|
|
Panel Thickness
|
1-6mm
|
|
Torque
|
5-14Nm
|
|
Operating Pressure
|
About 5N
|
|
Operating Distance
|
About 2.5mm
|
