150/300/420 model feeder is optional. Reasonable structure design, suitable for products of different sizes and thicknesses.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Weight:
-
350 kg
-
Model:
-
MT-CY420
-
Max size of product:
-
420*420mm
-
Min size of product:
-
100*100mm
-
Thickness of products:
-
0.06mm-6mm
-
Stacking height:
-
300mm
-
Counting speed:
-
80-200pcs/min
-
Automatic Grade:
-
Fully automatic
-
Application:
-
Printing Industry
-
Product Type:
-
flat item
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Type:
-
Other
-
Production Capacity:
-
180 m/min
-
Max. workable width:
-
420mm
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Weight:
-
350 kg
-
Model:
-
MT-CY420
-
Max size of product:
-
420*420mm
-
Min size of product:
-
100*100mm
-
Thickness of products:
-
0.06mm-6mm
-
Stacking height:
-
300mm
-
Counting speed:
-
80-200pcs/min
-
Automatic Grade:
-
Fully automatic
-
Application:
-
Printing Industry
-
Product Type:
-
flat item
-
After-sales Service Provided:
-
Online Support
Product Description

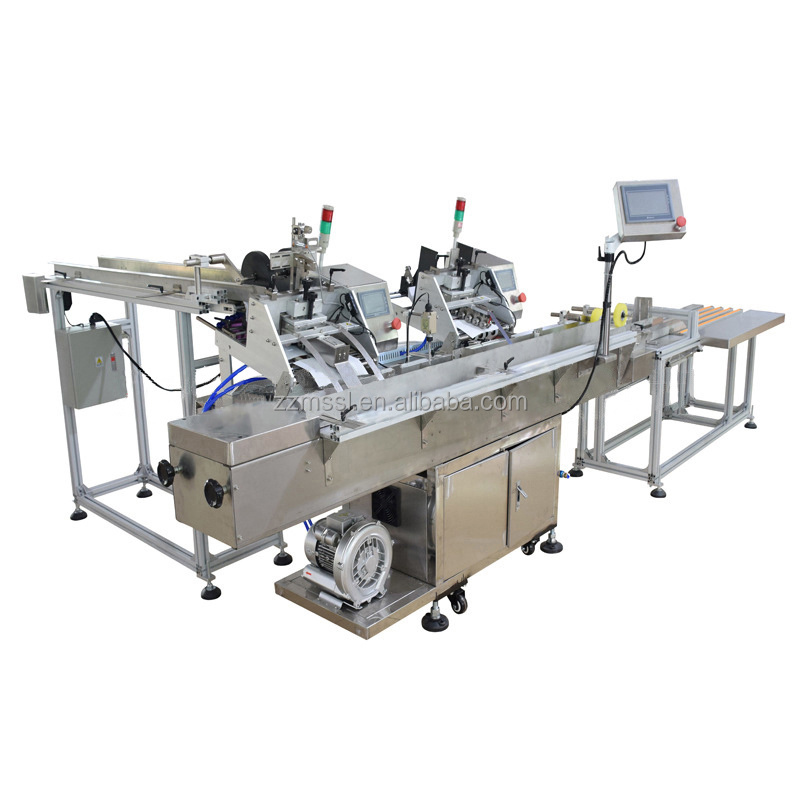

Automatic Paper Sorting Collating Counting Machine Card Collating Flow Packing Machine
Applicable for various card, leaflet, trading card, greeting card,plastic cards, business card, hang tag,envelopes,paper sheets/forms, posters, corrugated material, envelopes, brochures, magazines, all kind of products instruction book, literature any other products to be paging, batch counter and stack.
Specification
|
Model
|
MT-C150
|
MT-C300
|
MT-C420
|
||
|
Max size of product
|
150*150mm
|
300*300mm
|
420*420mm
|
||
|
Min size of product
|
50*50mm
|
60*60mm
|
100*100mm
|
||
|
Thickness of products
|
0.06mm-6mm
|
0.06mm-6mm
|
0.06mm-6mm
|
||
|
Stacking height
|
300mm
|
300mm
|
300mm
|
||
|
Counting speed
|
80-200pcs/min
|
80-200pcs/min
|
80-200pcs/min
|
||
|
Power
|
0.4KW
|
0.4KW
|
0.4KW
|
||
|
Voltage
|
220V/110V,AC
|
220V/110V,AC
|
220V/110V,AC
|
||
|
Weight
|
40kg
|
50kg
|
60kg
|
||
|
Dimension
|
550*500*600mm
|
650*580*600mm
|
750*650*600mm
|
||
|
Optional
|
Collecting hopper, Auto hopper, Conveyor, etc
|
|
|
||
Details Images
Servo motor drive system, PLC controller and touch screen, easy to operate.
Feeding conveyor. The product is at an oblique angle to the belt. Max 300mm height depending on the products.
Ensure product convey is neat and orderly
Chain push rod type conveying, the product is ready to be conveyed and stacked neatly.
Products are neatly stacked and ready for further processing
