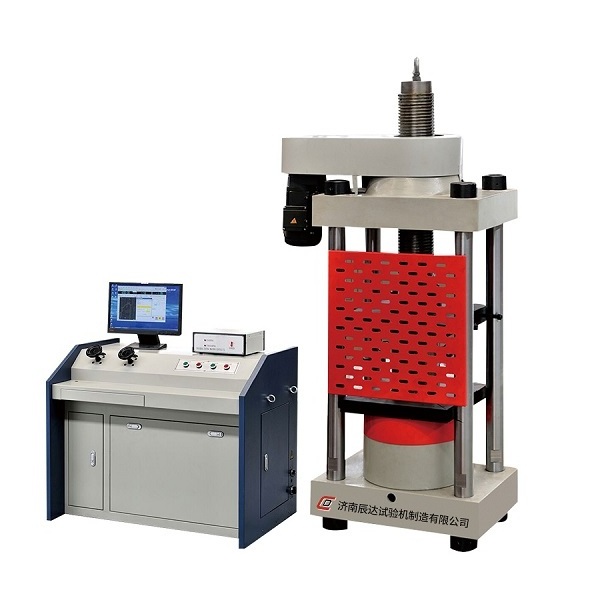

YAW-2000 Hydraulic Compression Testing Machine

Product Application

This machine is computer control. And just can done the test with the constant speed loading. It is can used just after made the machine smoothly and level. It is mainly used for rock, concrete, cement products, hollow bricks, fly ash bricks, refractory materials, engineering materials, stone, rubber bearing compressive strength test and other building materials.

It is a necessary testing machine for the highway, railways, bridge, building materials and other laboratory.

Features:
1> The machine uses precision sensors and computer control, can storage, access and print the test report automatically.
2> The machine uses rotary screw to adjust the compression space, it is greatly accelerate the progress of the trial.
3> The machine can design the report format according to unit requirements.

Elastic modulus of concrete Test device

Test sample size: Φ150×300mm, Φ100×200mm

Micrometer range: 0~1mm

Micrometer Scale value: 0.001mm

Distance between upper and lower ring: 150mm

distance between lower ring ang ground: 75mm

Soft ware with Elastic modulus of concrete test

Maxtest software can show two dial display value and the average value also will be showed on the software
