Quick Details
-
Size:
-
6058*2438*2000mm
-
Place of Origin:
-
Sichuan, China
-
Medium:
-
CNG, Helium, Hydrogen
-
Certification:
-
ISO
-
OE NO.:
-
NTYT-He-12
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
17063KG
-
Brand Name:
-
New Tianyuan
-
Size:
-
6058*2438*2000mm
-
Place of Origin:
-
Sichuan, China
-
Medium:
-
CNG, Helium, Hydrogen
-
Certification:
-
ISO
-
OE NO.:
-
NTYT-He-12
Product Description

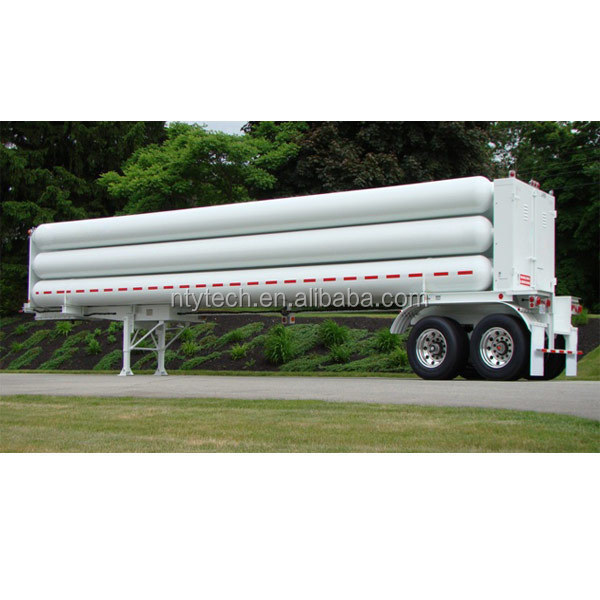

12 Tubes Helium Medium Cylinder Jumbo Tube Semi Trailer
Key Words:
* container trailer
* container semi trailer
* helium gas cylinder
Technical parameters:
| Jumbo tube skid | Item | Specification | |
| Model | GSJ12-1000-He-25 | ||
| Volume | m 3 | 12 | |
| Net weight | kg | 16388 | |
| Load weight | kg | 675 | |
| Full load weight | kg | 17063 | |
| Leakage test pressure | Mpa | 25 | |
| Safety device burst pressure | Mpa | 37.5 | |
| Safety device diameter | mm | ≥Φ20 | |
| Filling connector diameter | mm | 1" | |
| Outside diameter | mm | 6058*2438*2000 | |
| Jumbo tube | Item | ||
| Working pressure | MPa | 25 | |
| Ambient temperature | ℃ | -50 - 65 | |
| Tube material | 30CrMoLX | ||
| Medium | He | ||
| Volume | L | 1000 | |
| Filling weight | kg | 56.25 | |
| Tube weight | kg | 1094 | |
| Hydraulic test pressure | MPa | 37.5 | |
| Leakage test pressure | MPa | 25 | |
| Dimension | mm | Φ559*4950 |
Figure Photos
Gas Cylinder Factory
Steel Gas Cylinders Flow Chart
