Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
HTF
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
1200Mbps Wireless WiFi Router
-
Wireless Speed:
-
2.4/5GHz 300Mbps
-
Chipset:
-
MTK7628A+ MTK7612E
-
Flash:
-
8M
-
SDRAM:
-
64M
-
Ports:
-
1 xWAN 100Mbps, 4xLAN 100Mbps
-
Button:
-
1xReset/WPS, 1x DC connector
-
LED:
-
4 x LAN, 1xWAN, 1x 2.4g WiFi,1x5g WIFI, 1x Power
-
Power Supply:
-
DC5V 1A
-
Warranty:
-
12 months
Quick Details
-
Max. LAN Data Rate:
-
1000Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
HTF
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
1200Mbps Wireless WiFi Router
-
Wireless Speed:
-
2.4/5GHz 300Mbps
-
Chipset:
-
MTK7628A+ MTK7612E
-
Flash:
-
8M
-
SDRAM:
-
64M
-
Ports:
-
1 xWAN 100Mbps, 4xLAN 100Mbps
-
Button:
-
1xReset/WPS, 1x DC connector
-
LED:
-
4 x LAN, 1xWAN, 1x 2.4g WiFi,1x5g WIFI, 1x Power
-
Power Supply:
-
DC5V 1A
-
Warranty:
-
12 months
Related Products
Product Description
|
Model No.
|
HT-AC856
|
|
Ports
|
1 x WAN 100Mbps, 4xLAN 100Mbps,
|
|
Button
|
1xReset/WPS, 1x DC connector
|
|
LED
|
4 x LAN, 1xWAN, 1x 2.4g WiFi,1x5g WIFI, 1x Power
|
|
Chipset
|
MTK7628A+ MTK7612E
|
|
5G PA Amplifier
|
RTC5638HE * 2
|
|
Flash
|
8MB
|
|
DDR
|
64MB
|
|
Power Supply
|
DC 9V/1A
|
|
Rated Voltage/ Frequency
|
input:100-240V. 50/60Hz
|
|
Wireless Standard
|
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz |
|
Transmit Power
|
<20dBm(2.4GHz)
<23dBm(5GHz) |
|
Reception Sensitivity
|
5GHz:
11a 6Mbps:-93dBm;11a 54Mbps:-78dBm; 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm; |
|
Wireless Functions
|
Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics |
|
Signal Rate
|
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps |
|
Wireless Security
|
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
|
|
Antennas
|
4x5dBi Omni Direction
|
|
Management
|
Access Control, Local Management, web Remote Management
|
|
WAN Type
|
Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual
Access), |
|
DHCP Settings
|
Server, DHCP Client List, Address Reservation
|
|
Protocols
|
IPv4, IPv6
|
|
Function
|
WIPS Mode
Bridge Mode Repeater Mode Static Router DHCP Server Wireless Setting IPTV/IGMP Snooping Web remote management |
Feature
* The New Wi-Fi technology, leading IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
* Simultaneous 2.4G/5GHz 1200Mbps Dual band connections
* 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
* External antennas provide Omni Direction stable signal and superior wireless coverage
* Provides 1 x 10/100Mbps Auto-Negotiation Ethernet WAN port
* Provides 4 x 10/100Mbps Auto-Negotiation Ethernet LAN port
* Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
* Built-in firewall features IP, MAC, URL filtering which flexibly controls online access and time
* Built-in DHCP server with automatic dynamic IP address distribution
* Easy one-touch wireless security encryption with the WPS button
* Easy Setup Assistant with multi-language support provides a quick & hassle free installation process
* Simultaneous 2.4G/5GHz 1200Mbps Dual band connections
* 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
* External antennas provide Omni Direction stable signal and superior wireless coverage
* Provides 1 x 10/100Mbps Auto-Negotiation Ethernet WAN port
* Provides 4 x 10/100Mbps Auto-Negotiation Ethernet LAN port
* Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
* Built-in firewall features IP, MAC, URL filtering which flexibly controls online access and time
* Built-in DHCP server with automatic dynamic IP address distribution
* Easy one-touch wireless security encryption with the WPS button
* Easy Setup Assistant with multi-language support provides a quick & hassle free installation process

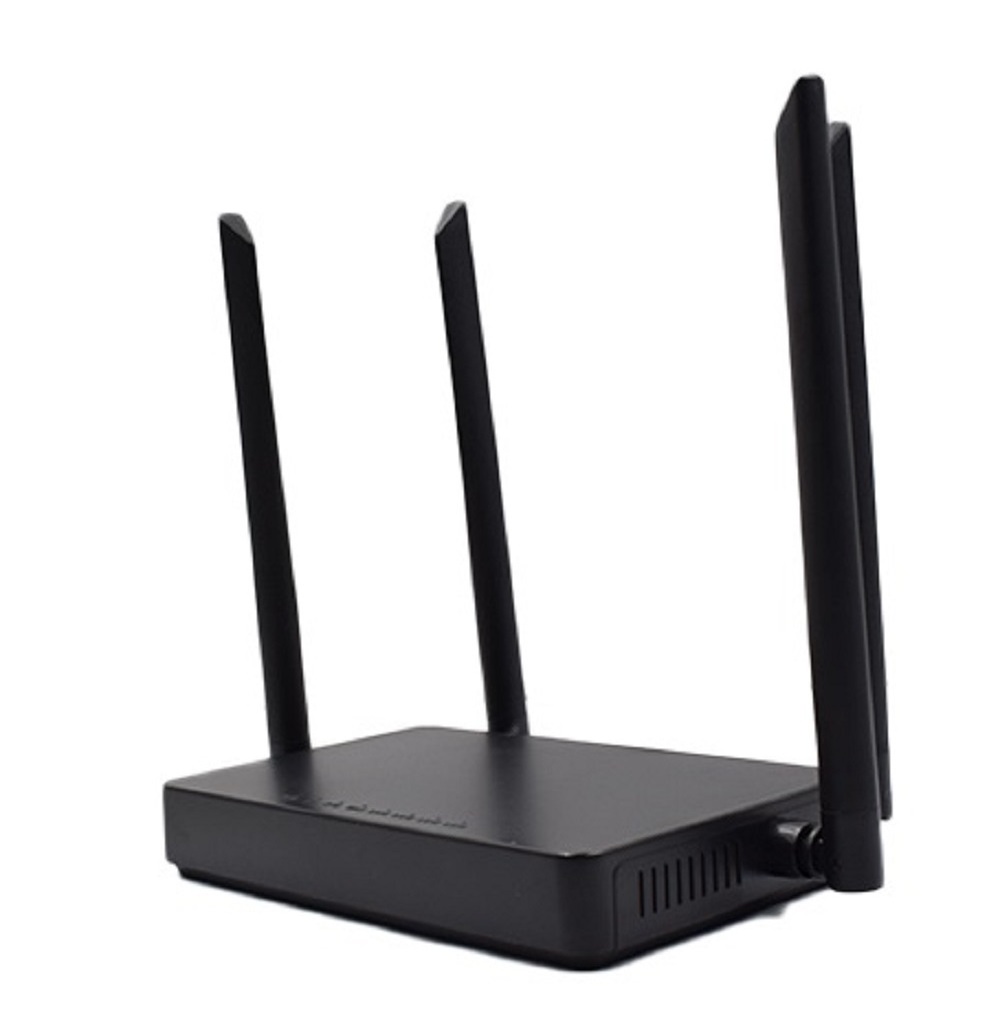

Product Photos
Details Images
Company Introduction
How to Start Business With US?
1. Send us inquiry from Alibaba or contact us directly via trade manager
2. Place sample order online or provide details to us for issuing an invoice
3. Payment via Alibaba online order or PayPal, Western Union, T/T etc.
What Certificates available?
CE, RoHS and Patent Certification
How is Quality Control and Warranty?
1. All products have been 100% strictly Quality Checked in-house before packing.
2. All products have been well packed before shipping.
3. 24 Months warranty is provided
1. Send us inquiry from Alibaba or contact us directly via trade manager
2. Place sample order online or provide details to us for issuing an invoice
3. Payment via Alibaba online order or PayPal, Western Union, T/T etc.
What Certificates available?
CE, RoHS and Patent Certification
How is Quality Control and Warranty?
1. All products have been 100% strictly Quality Checked in-house before packing.
2. All products have been well packed before shipping.
3. 24 Months warranty is provided
Our Services
Reply your inquiry in 24 working hours;
Customization is available, OEM/ODM is warm welcome;
Delievery goods to our partners all over the world with high speed and great precision;
Offer our customers the most competitive with good quality wireless networking equipment.
Reply your inquiry in 24 working hours;
Customization is available, OEM/ODM is warm welcome;
Delievery goods to our partners all over the world with high speed and great precision;
Offer our customers the most competitive with good quality wireless networking equipment.
