Quick Details
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
6500K
-
Product Weight（kg）:
-
0.27
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ASENWARE
-
Supply work voltage range:
-
110V-127VAC 50/60Hz; Or 220V-240VAC 50/60Hz
-
Operation mode:
-
Non-maintained
-
Battery protection:
-
Yes
-
Battery:
-
Nickel-cadmium Or Lead-acid
-
Charging time:
-
<24 hours
-
Self-test:
-
Available
-
Control mode:
-
Emergency only Or On/Off switch +Emergency
-
Installation:
-
Wall mounted
-
Protection level:
-
IP30
-
Product size:
-
345x110x80mm
Quick Details
-
Battery Type:
-
Nickel-cadmium Or Lead-acid
-
Material:
-
Fire proof plastic
-
Usage:
-
Lighting or Exit Sign
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
6500K
-
Product Weight（kg）:
-
0.27
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ASENWARE
-
Supply work voltage range:
-
110V-127VAC 50/60Hz; Or 220V-240VAC 50/60Hz
-
Operation mode:
-
Non-maintained
-
Battery protection:
-
Yes
-
Battery:
-
Nickel-cadmium Or Lead-acid
-
Charging time:
-
<24 hours
-
Self-test:
-
Available
-
Control mode:
-
Emergency only Or On/Off switch +Emergency
-
Installation:
-
Wall mounted
-
Protection level:
-
IP30
-
Product size:
-
345x110x80mm

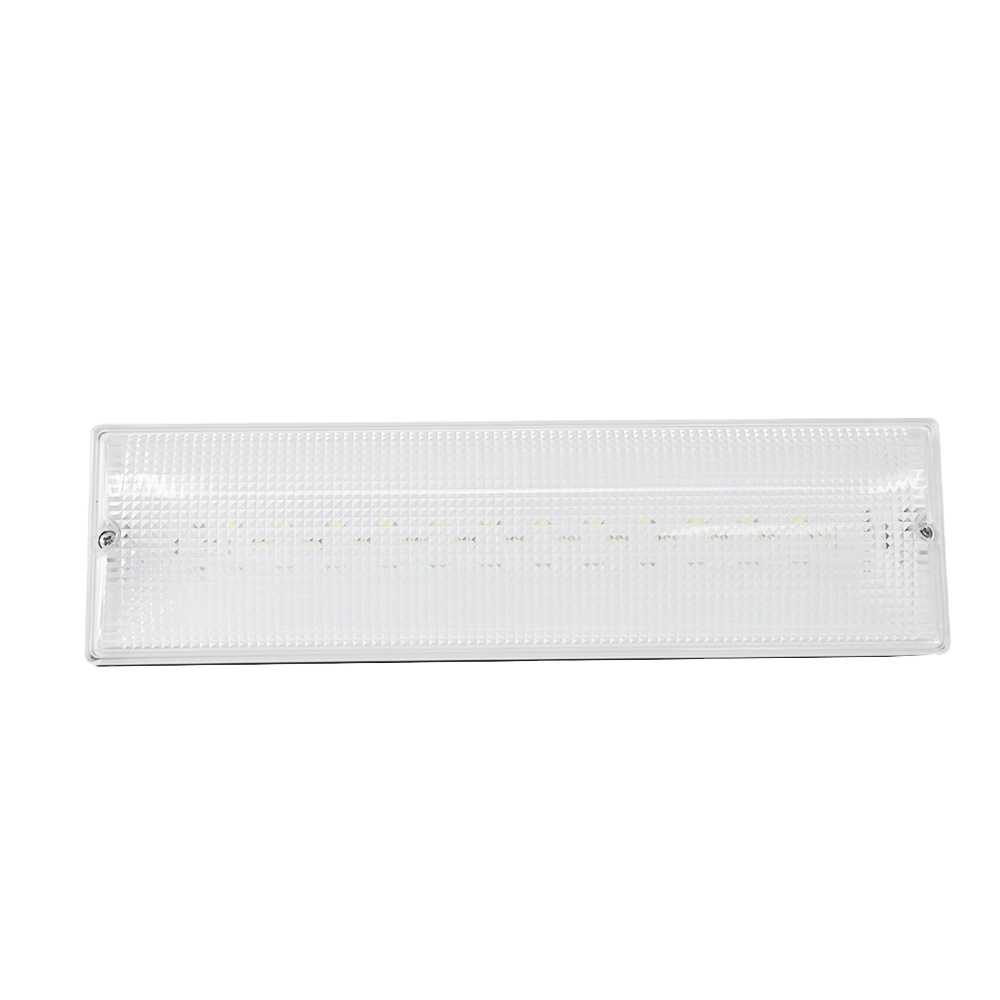

Emergency Light
AW-EL101
✍ Product Features
|
Operating Voltage
|
220VAC 50/60Hz
|
|
|
|
|||
|
Rated Wattage
|
3 W under charge mode; 1W under emergency mode
|
|
|
|
|||
|
Rated Lumen output
|
≥130lm
|
|
|
|
|||
|
Rated duration of operation
|
3h
|
|
|
|
|||
|
Charging time
|
＜24 h
|
|
|
|
|||
|
Battery type
|
Li-ion 3.7V 1200mAh
|
|
|
|
|||
|
Battery discharge cut-off voltage
|
6V
|
|
|
|
|||
|
Battery charge voltage limits
|
4.2V
|
|
|
|
|||
|
Maximum charge current
|
120mA
|
|
|
|
|||
|
Protection class
|
IP20
|
|
|
|
|||
|
Environmenta
|
Temperature range: -5 to 40°C (23~104°F) Humidity: 5 to 95% RH, non-condensing
|
|
|
|
|||
|
Materials and colors
|
ABS White
|
|
|
|
|||
|
Application
|
For indoor use only
|
|
|
|
|||
|
Size
|
300mm* 85mm* 51mm
|
|
|
|
|||
|
Weight
|
About 270g
|
|
|
|
|||
