Products Description

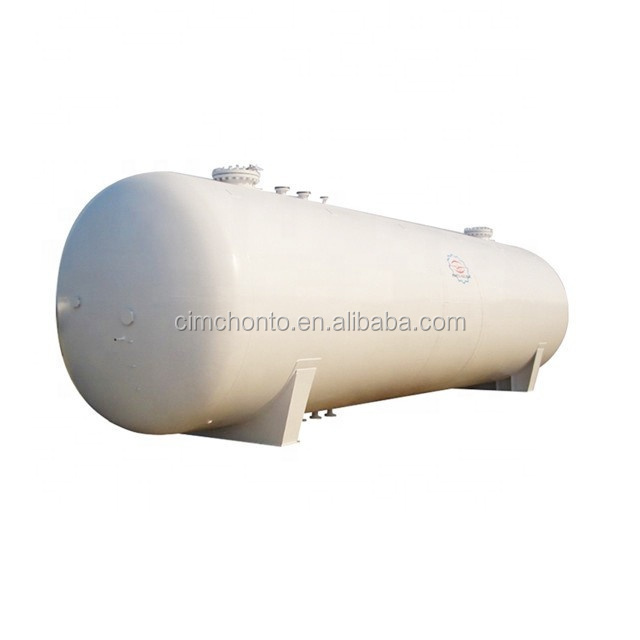

Above-ground LPG Storage Tank
U
nderground LPG Storage Tank
Mounded LPG Storage Tank
LPG Storage Tanks
HONGTU has the design & fabrication capacity of LPG stationary storage tanks including above-ground tanks, underground storage tanks and horizontal storage tanks and vertical storage tanks etc., which is customized according to the customers' requirements.
Design Code:
ASME BPVC Ⅷ-1/VIII-2 ; GB/T150 JB 4732
Design Code:
ASME BPVC Ⅷ-1/VIII-2 ; GB/T150 JB 4732
Vessel Capacity:
≥5m3
Main Material:
SA-516, SA-612,Q370R etc.
Main Material:
SA-516, SA-612,Q370R etc.
Product Paramenters
Above-ground LPG Storage Tank
|
Capacity
(m³)
|
Inner Diameter x Height x Length
(mm)
|
Net Weight
(kg)
|
Thickness of Shell
(mm)
|
Thickness of Heads
(mm)
|
|
10
|
φ1600×2370×5300
|
3400
|
8.53 (10)
|
8.51 (10)
|
|
12
|
φ1600×2370×6300
|
3800
|
8.53 (10)
|
8.51 (10)
|
|
20
|
φ2200×2970×5680
|
5150
|
11.35 (12)
|
11.33 (13)
|
|
25
|
φ2200×2970×7000
|
6000
|
11.35 (12)
|
11.33 (13)
|
|
32
|
φ2200×2970×8850
|
7200
|
11.35 (12)
|
11.33 (13)
|
|
40
|
φ2470×3240×8843
|
8780
|
12.62 (13)
|
12.59 (14)
|
|
50
|
φ2600×3370×9898
|
11000
|
13.23 (14)
|
13.2 (15)
|
|
63
|
φ2470×3240×13623
|
12600
|
12.62 (13)
|
12.59 (14)
|
|
80
|
φ3100×3800×11170
|
16700
|
15.58 (16)
|
16.19 (18)
|
|
100
|
φ3100×3800×13850
|
20000
|
15.58 (16)
|
15.87 (18)
|
|
150
|
φ3400×4104×17140
|
29800
|
17.71 (18)
|
17.67 (20)
|
|
200
|
φ3800×4560×18324
|
40100
|
19.27 (20)
|
19.22 (22)
|
|
Main Material
|
Q345R
|
Design Pressure
|
1.61MPa
|
|||
|
Hydraulic Test Pressure
|
2.21 MPa
|
Working Pressure
|
≤1.60MPa
|
|||
|
Corrosion Allowance
|
1.0mm
|
Design Temperature
|
-20/50℃
|
|||
|
MAWP
|
1.77MPa
|
Working Temperature
|
≤50℃
|
|||
|
Notes:
Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.
|
|
|
|
|||
|
II. ASME Standard
|
|
|
|
|
|
|
|
|||||||
|
Water Capacity
|
Inner Diameter
|
Overall Length
|
Height
|
Weight
|
Payload
（85% Filling Ratio）
|
Thickness
|
|
|||||||
|
|
|
|
|
|
|
Shell
|
Heads
|
|||||||
|
10m³
|
1600mm
|
5308mm
|
2440mm
|
3850kg
|
4630kg
|
11.09mm
|
11.02mm
|
|||||||
|
12m³
|
1600mm
|
6308mm
|
2440mm
|
4340kg
|
5560kg
|
|
|
|||||||
|
20m³
|
2200mm
|
5690mm
|
3050mm
|
6920kg
|
9260kg
|
14.86mm
|
14.78mm
|
|||||||
|
25m³
|
2200mm
|
7010mm
|
3050mm
|
8100kg
|
11580kg
|
|
|
|||||||
|
32m³
|
2200mm
|
8860mm
|
3050mm
|
9750kg
|
14820kg
|
|
|
|||||||
|
40m³
|
2470mm
|
8851mm
|
3320mm
|
11930kg
|
18530kg
|
16.56mm
|
16.47mm
|
|||||||
|
50m³
|
2470mm
|
10911mm
|
3320mm
|
15420kg
|
25470kg
|
|
|
|||||||
|
60m³
|
2470mm
|
13001mm
|
3320mm
|
16600kg
|
27790kg
|
|
|
|||||||
|
80m³
|
3100mm
|
11178mm
|
3960mm
|
22820kg
|
37060kg
|
20.53mm
|
20.41mm
|
|||||||
|
100m³
|
3100mm
|
13858mm
|
3960mm
|
27430kg
|
46320kg
|
|
|
|||||||
|
Main Material
|
SA-516 Gr.70
|
Design Pressure
|
1.724MPa
|
|||
|
Hydraulic Test Pressure
|
2.25MPa
|
Working Pressure
|
≤1.724MPa
|
|||
|
Corrosion Allowance
|
1.0mm
|
Design Temperature
|
50℃
|
|||
|
Specific Gravity
|
0.545@15℃
|
Working Temperature
|
-20/50℃
|
|||
|
Notes:
Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.
|
|
|
|
|||
Underground LPG StorageTank
|
Chinese GB Standard
|
|
|
|
|
|
|
|
|||||||
|
Water Capacity
|
Inner Diameter
|
Overall Length
|
Height
|
Weight
|
Payload
（
90% Filling Ratio
）
|
Thickness
|
|
|||||||
|
|
|
|
|
|
|
Shell
|
Heads
|
|||||||
|
7m³
|
1200mm
|
6560mm
|
2430mm
|
3100kg
|
2820kg
|
7.5mm
|
6.64mm
|
|||||||
|
10m³
|
1600mm
|
5300mm
|
2870mm
|
3800kg
|
4035kg
|
8.53mm
|
8.51mm
|
|||||||
|
20m³
|
2000mm
|
6800mm
|
3290mm
|
5900kg
|
8070kg
|
10.41mm
|
10.39mm
|
|||||||
|
25m³
|
2200mm
|
7000mm
|
3484mm
|
6300kg
|
10090kg
|
11.36mm
|
11.33mm
|
|||||||
|
50m³
|
2470mm
|
10903mm
|
3756mm
|
11220
|
20180kg
|
12.62mm
|
12.59mm
|
|||||||
|
Main Material
|
Q345R
|
Design Pressure
|
1.61MPa
|
|||
|
Hydraulic Test Pressure
|
2.22MPa
|
Working Pressure
|
≤1.61MPa
|
|||
|
Corrosion Allowance
|
1.0mm
|
Design Temperature
|
-20/50℃
|
|||
|
Life Expectancy
|
20 years
|
Working Temperature
|
-20/50℃
|
|||
|
Notes:
Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.
|
|
|
|
|||
LPG Mounded Tank
|
ASME Standard
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Water Capacity
|
Inner Diameter
|
Overall Length
|
Height
|
Weight
|
Payload
（90% Filling Ratio）
|
Material
|
Design Pressure
|
Thickness
|
|
|||||||||
|
|
|
|
|
|
|
|
|
Shell
|
Heads
|
|||||||||
|
22m³
|
2000mm
|
7420mm
|
2774mm
|
6200kg
|
8876kg
|
Q345R
|
1.61MPa
|
11.56mm
|
10.47mm
|
|||||||||
|
98.5m³
|
3500mm
|
11588mm
|
3548mm
|
25100kg
|
47073kg
|
SA-516 GR.70
|
1.724MPa
|
23.05mm
|
13.21mm
|
|||||||||
|
124m³
|
3450mm
|
14410mm
|
5140mm
|
26500kg
|
60890kg
|
|
1.38MPa
|
18.98mm
|
10.28mm
|
|||||||||
|
Notes:
Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.
|
|
|
|
|
|
|
|
|
|
|||||||||
