Quick-Delivery 3 In 1 Beverage Juice Filling Machine Liquid Quantitative Filling Machine for Water bottle

Quick-Delivery 3 In 1 Beverage Juice Filling Machine Liquid Quantitative Filling Machine for Water bottle

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

≥5 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ±2mm

Voltage:: 380/50Hz,380/60Hz,220/50Hz,220/60Hz

Place of Origin:: Zhejiang, China

Brand Name:: PAIRUI

Dimension(L*W*H):: 2200*1600*2200mm

Weight:: 2200 KG

Machine Name:: Water Filling Machine

Bottle type:: PET Bottles

Capacity:: 2000-24000BPH

Usage:: Pure water, mineral water,juice,etc

Machine material:: SUS304/316

Control:: PLC+ Touch Screen

Function:: Bottle Washing Filling Capping

Quick Details

Machinery Capacity:: 3000-4000BPH

Packaging Material:: Wood

Filling Material:: Beer, Milk, Water, Oil, Juice

Filling Accuracy:: ±2mm

Voltage:: 380/50Hz,380/60Hz,220/50Hz,220/60Hz

Place of Origin:: Zhejiang, China

Brand Name:: PAIRUI

Dimension(L*W*H):: 2200*1600*2200mm

Weight:: 2200 KG

Machine Name:: Water Filling Machine

Bottle type:: PET Bottles

Capacity:: 2000-24000BPH

Usage:: Pure water, mineral water,juice,etc

Machine material:: SUS304/316

Control:: PLC+ Touch Screen

Function:: Bottle Washing Filling Capping

Product Description

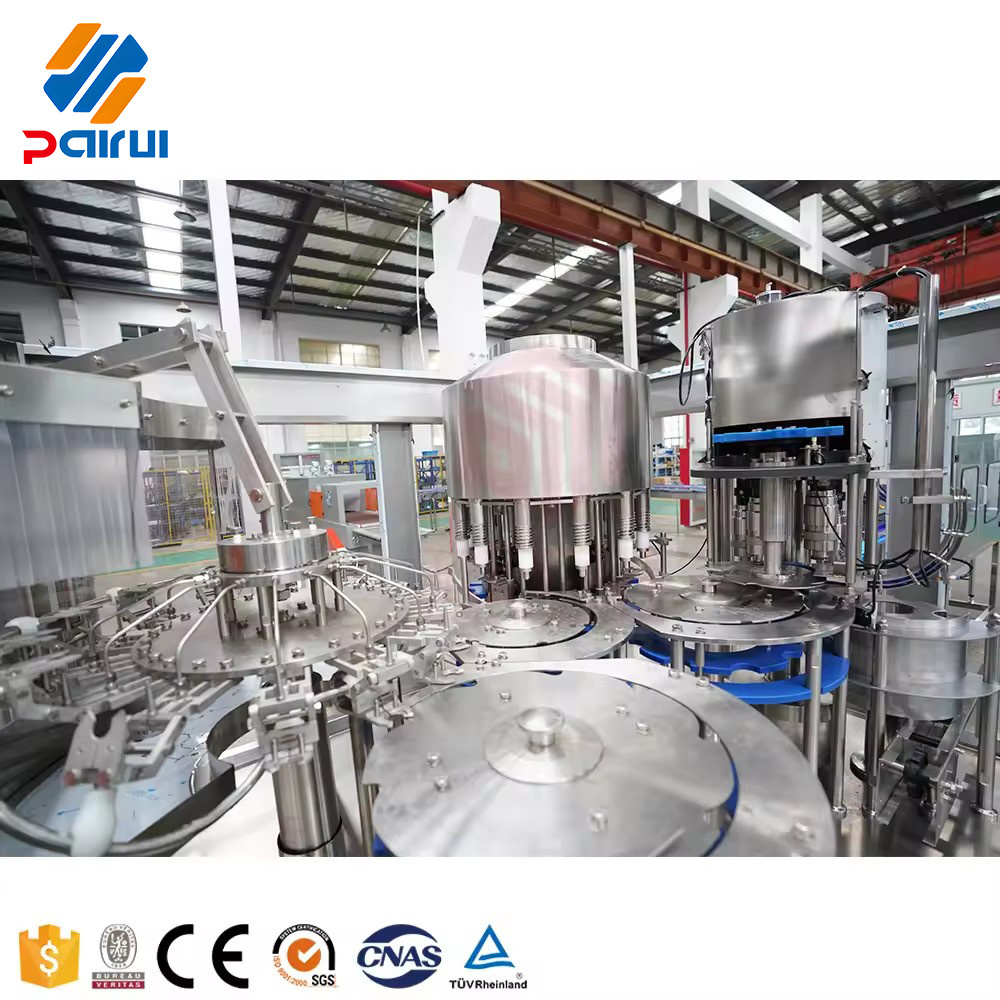

Full-Auto 3-In-1 Washing，Filling，Capping Machine For Water
MODEL	8-8-3C	12-12-5C	18-18-6C	24-24-8C	32-32-10C	40-40-12C	50-50-12C	60-60-15C
Capacity(bph)	2000	3000-4000	6000-8000	10000	15000	18000	21000	24000
Power(kw)	3.0	4.3	4.8	5.6	8.2	9.5	11	13
Size(mm)	200015002200	220016002200	250017502200	295021502200	372028002200	418032002200	472035502750	600054502750
Weight(kg)	1850	2200	2600	2900	3400	4500	5800	6800
Voltage	380/50Hz，380/60Hz，220/50Hz，220/60Hz

Brief Introduction Of Water Filling Machine

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. The water filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine tofill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Main Features Of Water Filling Machine

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this nable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Product Details

Characteristic Of Water Filling Machine

1. Intelligent contact screen, human design, easy operation.

2. Imported filling valve, avoiding drop leaking, accurate filling quantity.

3. Program logic controller(PLC), easy for changing size or modifying parameters.

4. Pneumatic elements are all imported, stability and reliability.

5. Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters.

6. Solely and specially-designed whole lifting device, easy governing to meet the needs of all kindsof container packing.

7. Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.

8. Pneumatic executive control valve, high efficiency and safety. Each flow passage can be separately governed and cleaned.

9. Close positioning design, easy governing, suitable for packing of all sizes of bottles.

10. The whole machine is designed according to requirements of buyer's.

Washing heads

1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.

2.Washing pump is made of stainless steel.

3. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.

4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.

Filling heads

1.Filling method for gravity filling.

2.Filling valve manufactured SUS 304/316L.

3.High precision, high speed liquid filling.

4.Filling move by the rack drive system through gear transmission.

5.Hydraulic cylinder controlled by a float liquid level.

6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.

Capping heads

1.Automatic check,no bottle no capping.

2.Capping heads in stainless steel 304/316L.

3.Capping heads stop working when lack of bottle.

4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
