Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUI CHENG
-
Model Number:
-
WNB
-
Size:
-
3800*380*16/30/40/50mm
-
Surface Textures:
-
Coarse brick,Wide or narrow brick,Standard brick, and so on
-
Panel core:
-
PU and Rock wool
-
Thickness of Steel:
-
0.3mm-0.5mm
-
The bottom layer:
-
Aluminum foil
-
Characteristic:
-
Good temp-keeping and heat insulation
-
MOQ:
-
100 Pieces
Quick Details
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Outdoor
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUI CHENG
-
Model Number:
-
WNB
-
Size:
-
3800*380*16/30/40/50mm
-
Surface Textures:
-
Coarse brick,Wide or narrow brick,Standard brick, and so on
-
Panel core:
-
PU and Rock wool
-
Thickness of Steel:
-
0.3mm-0.5mm
-
The bottom layer:
-
Aluminum foil
-
Characteristic:
-
Good temp-keeping and heat insulation
-
MOQ:
-
100 Pieces
white/red/gray Polyurethane foam Sandwich Panels
Pu foam sandwich panels/carved external insulation metal wall boards

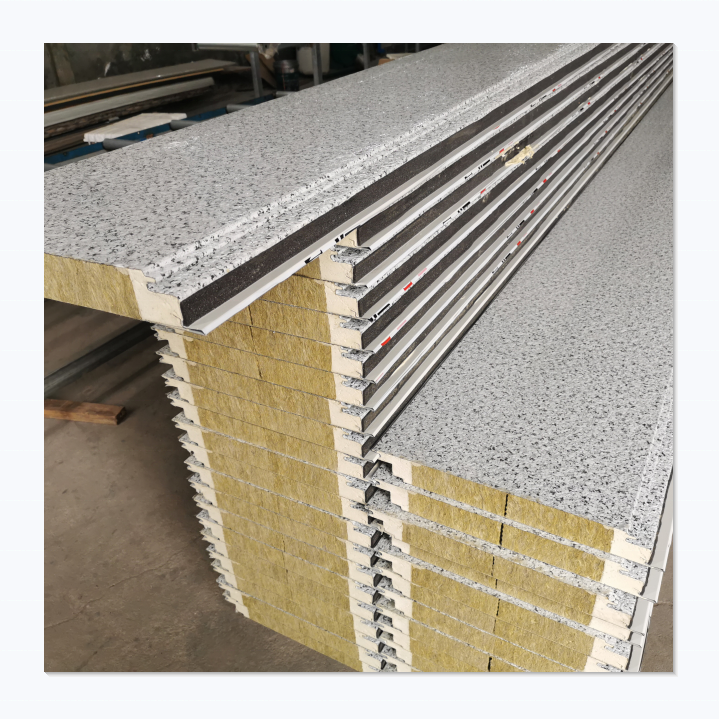

PU /Rock wool sandwich panel Carved Metal Insulation Board
|
Size |
3800*383*16/30/40/50mm (Length can be customized,MOQ>100Sqm) |
|
Material of the panels |
composed of colorful steel sheets and PU/EPS |
|
Surface Textures and Appearance |
Coarse brick veins;Wide or narrow brick veins;Standard brick veins;Standard brick veins;Bark veins;Stone veins;Plain veins |
|
Color |
White,gray,blue,red,yellow ,and so on |
|
Panel core |
Polyurethane ( PU),Rock wool |
|
Thickness of Colorful Steel |
0.3mm-0.5mm |
|
The bottom layer |
Aluminum foil |
|
Characteristic |
Good temp-keeping and heat insulation |
|
Fine fireproof |
Test by national quality inspection center for fireproof building material, all its index reach grade B1 According to your requirement(B1/B2) |
|
Technical support |
Incidental engineering drawings |
|
Characteristic |
Good temp-keeping and heat insulation |
|
Use |
Various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums, freezing stores and purification workshops |
|
Installation |
Convenient and flexible without the large- size lifting devices so that the construction period is limited with the lower comprenhensive costs |
|
Heavy load bearing capacity |
High strength and high rigidness and is suitable either for the weight - bearing structure or for the protective structure |
|
MOQ |
100 Sqm |
Test Data of physical property in carved metal boards
Testing items Technical requirements Testing results Testing method
1
Thermal conductivity
(core material), W/(M*K)
≤0.025 0.025 GB/T 10295 --1998
2
Compression strength , KPA
≥120 295 GB/T 8813 -- 1998
3
Water absorption ,%
≤5 4.8 GB/T 8810 -- 2005
4
Apparent density
(recombination of
three layers) ,KG/ (M2)
≥3.6 3.78 GB/T 6343 -1995
5
Deflection under
0.5kn flexural capacity,MM ≤18.3 13.3 GB/T 9341-- 2000
6
Bonding strength, MPA
≥0.10 0.238 JC/T 868 -- 2000
7
Salt spray resistance
property, H ≥1000 No changes in color
and no decay on surface QB/T3826 --1999
8
Weather fastness, H
≥1000 no damages on surface
with 4-5 color change GB/T 16442.2 --1999
9 Oxygen index, % ≥26 26.1 GB/T 2046 --1993
10 Horizontal foam
flame test, S
Average flame time≤90 77 GB/T 8332 --1987
MM
Average flame range≤50 37 GB/T 8332 --1987
11
Wind-resistance value ,KPA
8.0 JG149 -- 2003
S tructure of the steel board:
Products usage and Construction case
Why choose our company?????!!!!
About us
Shandong Hui Cheng Building Materials Co., Ltd was established in June 17, 2011,with registered capital of 10 million RMB.We mainly produce and operation metal insulation decorative board.
The metal insulation decorative board is a new type of environmentally-friendly wall materials,has a great potential and prospect for development.We will firmly establish the philosophy of "To seek existence with good quality and promote development with service"in production and management and adhere to the win-win concept to make common growth and development with customers.
Welcome to customers around the world advice and purchase, we will provide you with the best quality service and the best price,
Thank you for your trust!
Tel: 86-18754300275 maggie
