Quick Details
-
Brand Name:
-
IGERCN
-
Model Number:
-
DTSY1877
-
Accuracy Class:
-
1.0
-
Output Voltage:
-
3*220/380V
-
Operating Temperature:
-
-20℃~70℃
-
Dimensions:
-
220mm*145mm*70mm
-
Communication:
-
WIFI
-
Product name:
-
Three Phase Four Wire Electronic Prepaid Electricity Meter
-
Display:
-
LCD Digital Display
-
Certificate:
-
IEC
-
Installation:
-
Wall Mounted Installation
-
Warranty:
-
18 Months
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
<2W / <10VA @ Un
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IGERCN
-
Model Number:
-
DTSY1877
-
Accuracy Class:
-
1.0
-
Output Voltage:
-
3*220/380V
-
Operating Temperature:
-
-20℃~70℃
-
Dimensions:
-
220mm*145mm*70mm
-
Communication:
-
WIFI
-
Product name:
-
Three Phase Four Wire Electronic Prepaid Electricity Meter
-
Display:
-
LCD Digital Display
-
Certificate:
-
IEC
-
Installation:
-
Wall Mounted Installation
-
Warranty:
-
18 Months
Product Description
Specification
1.

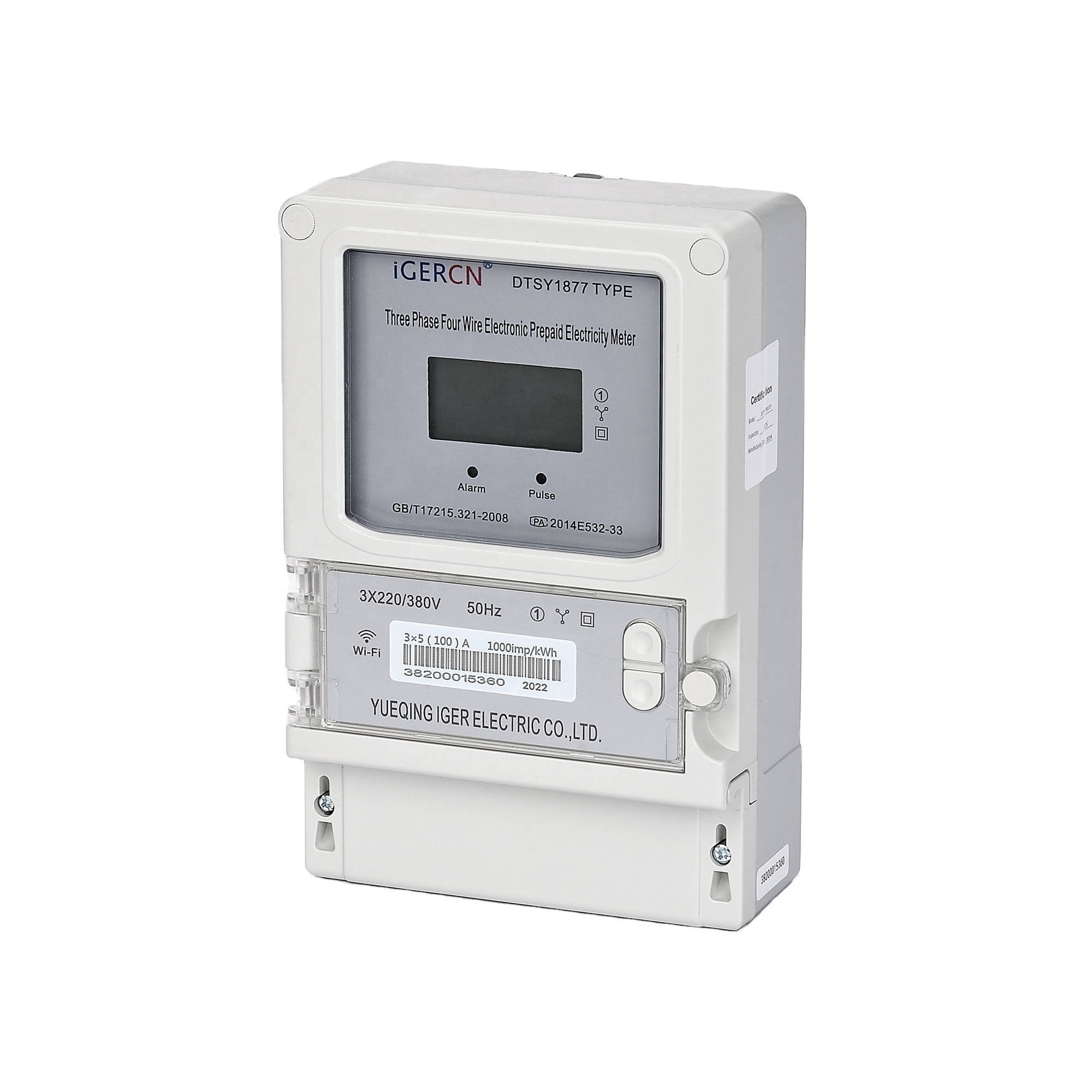

DTSY1877
three phase smart prepaid meter with Wall Mounted installation. There are several
advantages
in this meter such as
built-in relay which
can trip when over load, balance run out, and so on
.
And there are more functions in our AMI
system such as remote control, remote recharge, remote reading,
remote clear balance and so
on functions.
For CT connection type, built-in signal relay, which is used to
send signal to external
switch
2.
Features
2.1 Measurement: three phase active energy(both forward and reverse energy), class1
2.1 Measurement: three phase active energy(both forward and reverse energy), class1
2.2: Prepayment: first recharge then using, meter will cut off power when balance run out.
2.3: Built-in relay: meter(relay) will open automatically when balance off or over power limit,
manual close relay through AMI system remotely.
2.4: Alarm: yellow LED will fast flash when balance is less than 50kWh.
2.5: Communication: WiFi communication, it works like mobile phone, as soon as access
2.6: Display: display real time parameters, meter ID, signal intensity, network connection status, see
below
details.
2.7: Friendly overdraft: meter will cut off power(relay open)automatically when balance off, the
administrator can turn on through AMI system, or press the meter DOWN button more
function can be used only one time, after using the overdraft 50kWh, user can only recharge
to close meter relay.
2.8: overload protection: The relay will open when overload lasts for 30 seconds and close after 60
2.9. data storage: the meter has nonvolatile storage, the energy record is kept forever, it will not lose
2.8: overload protection: The relay will open when overload lasts for 30 seconds and close after 60
seconds. If the above situation happens for more than 5 times in 30 minutes, the relay will open
30minutes, this function will recover after 30minutes.
2.9. data storage: the meter has nonvolatile storage, the energy record is kept forever, it will not lose
when power off or network off.
3.Technology data:
|
Product name
|
Three Phase Four Wire Electronic Prepaid Electricity Meter
|
|
Place of Origin
|
China
|
|
Brand Name
|
iGERCN
|
|
Model Number
|
DTSY1877
|
|
Display Type
|
LCD6+2
|
|
Phase
|
Three Phase
|
|
Measuring Energy Range
|
<2W / <10VA @ Un
|
|
Accuracy Class
|
1.0
|
|
Output Voltage
|
3*220/380V
|
|
Operating Temperature
|
-20℃~70℃
|
|
Current
|
Direct type: 3*5(100)A
CT type: 3*1.5(6)A |
|
Dimensions
|
220mm*145mm*70mm
|
|
Communication
|
WIFI
|
|
Display
|
LCD Digital Display
|
|
Certificate
|
IEC
|
|
Installation
|
Wall Mounted Installation
|
|
Warranty
|
18 Months
|
|
Constant
|
Direct type:1000imp/kWh
CT type: 10000imp/kWh |
Packing & Delivery
10PCS/CTN. each unit packing in 1 white box .
packing dimension:41.5*32.5*24cm
G.W:11KGS
