Quick Details
-
Model Number:
-
MG1 MG12 MG13
-
Product name:
-
Factory price wholesale MG1 MG12 MG13 replacement Burgmann
-
Keyword:
-
MG1 MG12 MG13 mechanical seal
-
Feature:
-
Replacement burgmann mechanical seal
-
Temperature:
-
-20°C to +140°C
-
Pressure:
-
≤ 1.5MPa
-
Linear velocity:
-
≤ 10m/s
-
Service:
-
OEM Customized Services
-
Certificate:
-
ISO9001:2015
-
MOQ:
-
1set
-
Application:
-
Pump
Quick Details
-
Size:
-
Standard Size
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Zhaoqiang
-
Model Number:
-
MG1 MG12 MG13
-
Product name:
-
Factory price wholesale MG1 MG12 MG13 replacement Burgmann
-
Keyword:
-
MG1 MG12 MG13 mechanical seal
-
Feature:
-
Replacement burgmann mechanical seal
-
Temperature:
-
-20°C to +140°C
-
Pressure:
-
≤ 1.5MPa
-
Linear velocity:
-
≤ 10m/s
-
Service:
-
OEM Customized Services
-
Certificate:
-
ISO9001:2015
-
MOQ:
-
1set
-
Application:
-
Pump

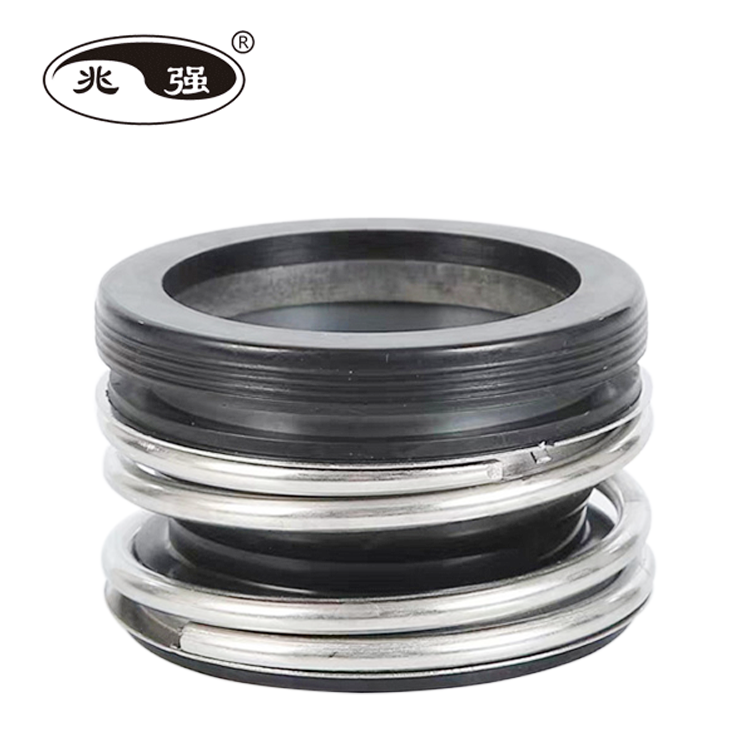

Sellos mecanicos rubber bellow shaft seal mechanical seal type 6 E 5/8 for piston 12mm water pump
The bellows is not subjected to any torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing element and drive collar.
The seal face is driven through the spring and “L“-rings.
There are no bonded joints and all the face materials are interchangeable without having to modify any dimensions.
Highly recommended for duties with media containing solids eg. in waste water and sewage applications
Mechanical Seal Operating Limits
Pressure: ≤ 1.5Mpa
Linear velocity: ≤ 10m/s
Temperature: -20~140℃
Mechanical Seal Material
•Rotary Ring(Carbon/SiC/TC)
•Stationary Ring(Ceramic/SiC/TC)
•Secondary Seal(NBR/EPDM/
FKM/PTFE
)
•Spring & Other Parts(SUS304/SUS316/Hastelloy)
Application equipment : Pipeline pumps, centrifugal pumps, submersible pumps, fresh water pumps, sewage pumps, chemical pumps. etc.
Application industry: petroleum,metallurgy industry,papermaking,oil refining industry,energy material industry,pharmaceuticals industry and water treatmentsystem etc.
