Quick Details
-
Weight (KG):
-
150 KG
-
clean:
-
easy to clean
-
spraying type:
-
airless spraying
-
air pollution:
-
low
-
raw material waste:
-
low
-
structure:
-
new separate generation
-
color:
-
can be customized
-
valve type:
-
manual
-
advantage:
-
auomatic mixing spray and cutting
-
Resin spraying capacity:
-
3-6kg/min
-
Item:
-

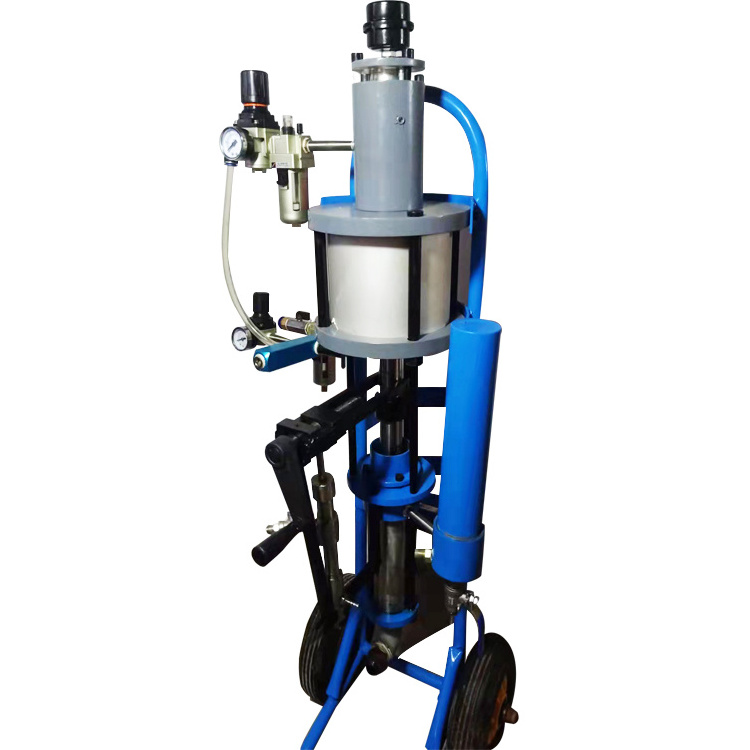

machine resin fiberglass rovings spraying
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BW
-
Machine Type:
-
foam machine
-
Weight (KG):
-
150 KG
-
clean:
-
easy to clean
-
spraying type:
-
airless spraying
-
air pollution:
-
low
-
raw material waste:
-
low
-
structure:
-
new separate generation
-
color:
-
can be customized
-
valve type:
-
manual
-
advantage:
-
auomatic mixing spray and cutting
-
Resin spraying capacity:
-
3-6kg/min
-
Item:
-
machine resin fiberglass rovings spraying
Product Description
Product Description
Spiral Tube Forming Machine BTF-II
The spiral duct machine BTF-II is widely used in air conditioning ducts,and prefabricated pipes for construction works. High standards to meet customer needs, a number of safety protection measures, cast aluminum molds. More automation. Minimize labor intensity and maximize production efficiency. It is the best choice for high standards.
Product details
Product details
Uncoiler
The decoiler of this model has a vertical structure and is integrated with the main machine. It is equipped with a pneumatic brake device and a belt buffer device. The specifications of the rolls that can be supported are: inner roll diameter 460-520mm, outer roll maximum diameter 1200mm, maximum load 1100kg.
Profile roll
The machine is equipped with two sets of rolling mechanisms, respectively 0.5-1.0mm and 1.0-1.2mm
Mold
The mold is a steel fixed mold with copper skin inside, which has precise dimensions and is easy to install. Diameter 100-1800mm
Cutting way :
Rolling shear
Advantage:smooth and the cutting is pollution-free. Disadvantage:when changing the mold, need to readjust the cutting angle and adjust the blade gap according to the plate thickness.
Plasma cutting
Advantage :suitable for any pipe diameter and thickness, Disadvantage:a lot of smoke during cutting.
Duct bracket
This air duct bracket is height-adjustable and is suitable for pneumatic turning of air ducts below 800mm. Function. One bracket can accommodate 2-4 meters of pipe, and multiple brackets can be optionally installed.
Optional: Reinforcer
There are two styles: single wave and double wave, which can be installed on the mold. Generally, pipes with a diameter of 250-1000 can be reinforced to increase their strength.
Finished Product
Finished Product
Accessories
Accessories
|
No
|
Description
|
Brand 1
|
Brand 2
|
|
1
|
Motor reducing
|
Guomao or Zhongyan
|
|
|
2
|
Inverter
|
Three acer
|
ABB
|
|
3
|
PLC
|
Xinjie
|
Siemens
|
|
4
|
Electric elements
|
Chint
|
Schneider
|
|
5
|
Touch screen
|
Weikong
|
Siemens
|
|
6
|
Hydrovalve
|
Ward
|
|
|
7
|
Pneumatic component
|
Domestic
|
|
|
8
|
Rail
|
TBI
|
|
|
9
|
Plasma power supply
|
Jiashi
|
|
Packaging & Shipping
Packaging & Shipping
Packaging:
Stable wooden package protects machine from strike and damage. Wound plastic film keeps machine out of damp and corrosion. Fumigation-free package helps the smooth customs clearance. The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely. For FCL, we get the container and do container loading by our skillful workers carefully. For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
