Quick Details
-
Material:
-
Natural Rubber
-
Frame material:
-
Nylon Tire Cord Fabric
-
Layer:
-
Customized
-
Diameter:
-
Customized
-
Length:
-
Customized
-
Usage:
-
Widely
-
Certificate:
-
DNV GL BV CCS LR
-
Standard:
-
ISO14409: 2011
-
Lifespon:
-
6-10 years
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ocean Shield
-
Product Name:
-

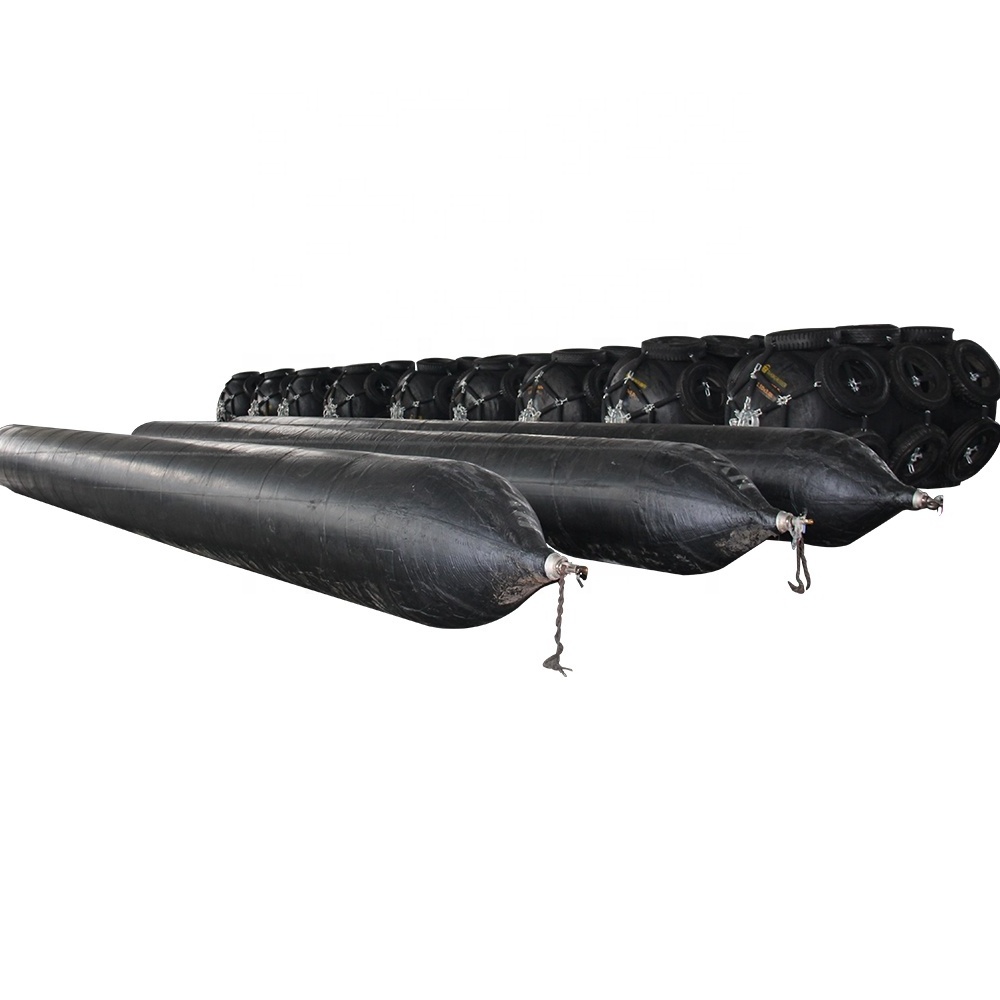

Marine Rubber Airbag Barge Tug Boat Ship Launching Moving Salvaging
-
Material:
-
Natural Rubber
-
Frame material:
-
Nylon Tire Cord Fabric
-
Layer:
-
Customized
-
Diameter:
-
Customized
-
Length:
-
Customized
-
Usage:
-
Widely
-
Certificate:
-
DNV GL BV CCS LR
-
Standard:
-
ISO14409: 2011
-
Lifespon:
-
6-10 years
Product Description
Features of our
Marine Rubber Airbag For Barge and Tug Boat Ship Launching Moving Salvaging
:
Fully compliant with ISO 14409 standard
Fully compliant with ISO 14409 standard
Customizable size and printing
High-Pressure Design
High bearing capacity and gas tightness
High resistance to knead ability
The new structure design of accounts at the end
Optimization of structural layout
High bearing capacity and gas tightness
High resistance to knead ability
The new structure design of accounts at the end
Optimization of structural layout
Equipped complete with accessories
Durable anti-aging abilities and wear characteristics
Higher flexibility and shock absorption ability
The cord layers produced by polyamide fiber 3 ply which can extend the airbags' lifespan
Durable anti-aging abilities and wear characteristics
Higher flexibility and shock absorption ability
The cord layers produced by polyamide fiber 3 ply which can extend the airbags' lifespan
Specification
|
TYPE
|
Guaranteed Working Pressure
|
|
|
|
|
|
|||||
|
|
D=0.8m
(D=2.62ft)
|
D=1.0m
(D=3.28ft)
|
D=1.2m
(D=3.94ft)
|
D=1.5m
(D=4.92ft)
|
D=1.8m
(D=5.90ft)
|
D=2.0m
(D=6.56ft)
|
|||||
|
LA-3
|
0.13Mpa
(18.85psi)
|
0.10Mpa
(14.50psi) |
0.09Mpa
(13.05psi) |
0.07Mpa
(10.15psi) |
0.06Mpa
(8.70psi) |
0.05Mpa
(7.25psi) |
|||||
|
LA-4
|
0.17Mpa
(24.66psi) |
0.13Mpa
(18.85 psi) |
0.11Mpa
(15.95 psi) |
0.09Mpa
(13.05psi) |
0.08Mpa
(11.60psi) |
0.07Mpa
(10.15psi) |
|||||
|
LA-5
|
0.21Mpa
(30.46psi) |
0.17Mpa
(24.66psi) |
0.13Mpa
(20.31psi) |
0.11Mpa
(15.95psi) |
0.09Mpa
(13.05psi) |
0.08Mpa
(11.60psi) |
|||||
|
LA-6
|
0.25Mpa
(36.26psi) |
0.20Mpa
(29.01psi) |
0.17Mpa
(24.66psi) |
0.13Mpa
(18.85psi) |
0.11Mpa
(15.95psi) |
0.10Mpa
(14.50psi)
|
|||||
