Quick Details
-
Graphic Format Supported:
-
AI, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD
-
Dimension(L*W*H):
-
400*600*200mm
-
Weight (KG):
-
120 KG
-
Laser power:
-
60w
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Software:
-
RD Works V8
-
Working area:
-
400*600 mm
-
Power supply:
-
220V/50HZ
-
Laser tube type:
-
Sealed CO2 Laser Glass Tube
-
Working table:
-
Honeycomb Table
-
Laser source:
-
MINGYU
Quick Details
-
Engraving Area:
-
600x400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1200mm/s
-
Graphic Format Supported:
-
AI, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD
-
Dimension(L*W*H):
-
400*600*200mm
-
Weight (KG):
-
120 KG
-
Laser power:
-
60w
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Software:
-
RD Works V8
-
Working area:
-
400*600 mm
-
Power supply:
-
220V/50HZ
-
Laser tube type:
-
Sealed CO2 Laser Glass Tube
-
Working table:
-
Honeycomb Table
-
Laser source:
-
MINGYU

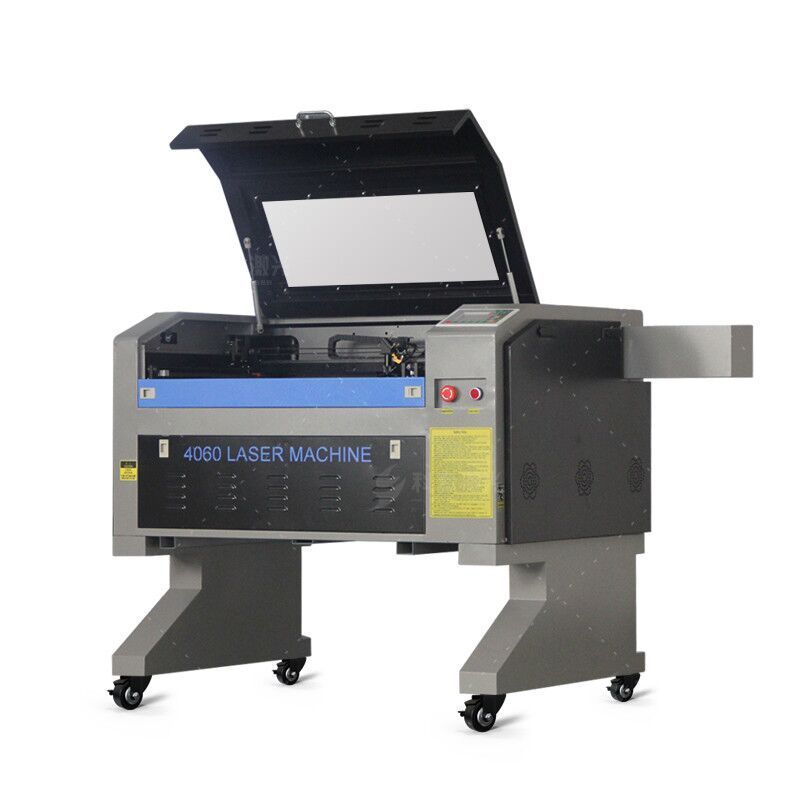

1- The table size of this machine is 400mmX600mm.It is equipped with 50W 60W 80W 100W laser power supply with 50W 60W laser tube,mainly used in different materials engraving.
2- This model Laser machine uses blocking design, easy to install and adjust, the machine frame in reason, the materials can put into from the front and behind, it can Exhaust the smoke on the above and below of the laser machine.
3- it uses offline control system, English LCD, USB interface, support CAD and CorelDraw output directly.
4- This machine is equipped with high precision ball screw up and down working table, that can be up and down by motor.
|
Laser Power |
50W 60W 80W 100W |
|
Supply Voltage |
110/220V±10% ,50/60Hz |
|
Max width |
600mmx400mm |
|
Working table |
honeycomb |
|
Up and down size |
250mm |
|
Table control mode |
Manual/Electric |
|
Max engraving Speed |
1000mm/s |
|
Max cutting speed |
600mm/s |
|
Locating Precision |
<0.01mm |
|
Min shaping character |
Character 2x2mm ,Letter 1x1mm |
|
Resolution |
0.0125mm |
|
Cutting thickness |
0-15mm |
|
Control Configuration |
Ruida |
|
Data transfer Interface |
USB |
|
System Environment |
WINDOWS XP/Win7/8 |
|
Graphic file format |
BMP,PLT,AI,CDR,DXF |
|
256 Color separation output |
Support |
|
360 degree slope engraving |
Support |
|
Off line working |
Support |
|
Cooling Way |
Water Cooling |
|
Operating temperature |
5°C -35°C |
|
Water protecting sensor and alarm |
Yes |
|
Net Weight |
120Kg |
|
Machine dimension |
1150x850x1000mm |
