- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
VANSHUI
-
Model Number:
-
GL-AC08
-
Type:
-
Fingerprint+APP+Passord+RFID Card
-
Product name:
-
Biometric Smart Access Control Reader
-
User Capacity:
-
1000 users (988 common users + 2 panic users +10 visitor users)
-
PIN Length:
-
4~6 digits
-
Operating Voltage:
-
12~28V AC/DC
-
Proximity Card Reader:
-
125KHz(ID carfd) or 13.56MHz(IC card)
-
Wiring Connections:
-
Relay output, exit button, alarm, door contact, Wiegand input/output
-
Relay:
-
One (NO, NC, Common)
-
Adjustable Relay Output Time:
-
0~99 Seconds (5 seconds default)
-
Waterproof:
-
IP66
-
Operating Temperature:
-
-30°C ~ 60°C
Quick Details
-
Special Features:
-
Waterproof / Weatherproof, Door Bell Button, Fingerprint Sensor
-
Customized support:
-
Customized logo, TT LOCK or TUYA APP Control
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
VANSHUI
-
Model Number:
-
GL-AC08
-
Type:
-
Fingerprint+APP+Passord+RFID Card
-
Product name:
-
Biometric Smart Access Control Reader
-
User Capacity:
-
1000 users (988 common users + 2 panic users +10 visitor users)
-
PIN Length:
-
4~6 digits
-
Operating Voltage:
-
12~28V AC/DC
-
Proximity Card Reader:
-
125KHz(ID carfd) or 13.56MHz(IC card)
-
Wiring Connections:
-
Relay output, exit button, alarm, door contact, Wiegand input/output
-
Relay:
-
One (NO, NC, Common)
-
Adjustable Relay Output Time:
-
0~99 Seconds (5 seconds default)
-
Waterproof:
-
IP66
-
Operating Temperature:
-
-30°C ~ 60°C
PRODUCT DESCRIPTION

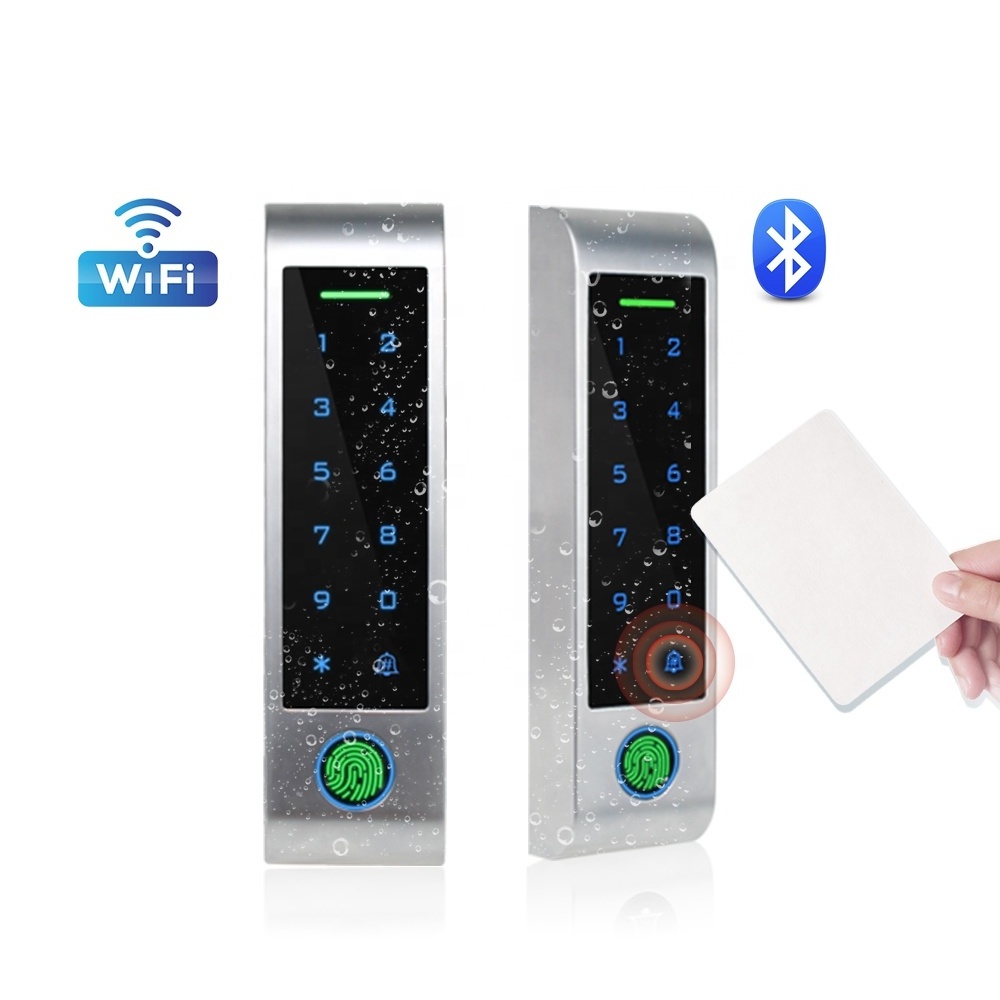

WIFI Tuya Smart Security Door Lock
Biometric Fingerprint Access Control Reader
with Metal Keypad IP66 Waterproof
FEATURES
Outdoor Touch Keypad & Reader
1/Metal housing,anti-vandal,waterproof,conforms to IP66
2/Card type:EM Card or IC Card
3/lOS and Android available
4/Add/Delete users by APP
5/Support checking Opening Record
6/Multiple Access Modes:Smartphone,Fingerprint,Card,PIN
7/Support Gateway(Bluetooth)
8/Can set Time Restriction for users(WiFi)
9/Temporary Password (One-time Or Period Code)(WiFi)
10/Remotely Access(Support 3G/4G/5G)(WiFi)
11/Doorbell Call Notice(WiFi)
1/Metal housing,anti-vandal,waterproof,conforms to IP66
2/Card type:EM Card or IC Card
3/lOS and Android available
4/Add/Delete users by APP
5/Support checking Opening Record
6/Multiple Access Modes:Smartphone,Fingerprint,Card,PIN
7/Support Gateway(Bluetooth)
8/Can set Time Restriction for users(WiFi)
9/Temporary Password (One-time Or Period Code)(WiFi)
10/Remotely Access(Support 3G/4G/5G)(WiFi)
11/Doorbell Call Notice(WiFi)
SPECIFICATION
|
Model
|
GL-AC08
|
|
User Capacity
|
TUYA WIFI: Hardware User:1,000,APP User:500;
TTLOCK BT:Hardware User:1,000,APP User:100(including 255 card/PIN users); Common User:988 (100 Fingerprint Users+888 PIN/Card Users),Visitor User:10,Panic User:2 |
|
APP option
|
Tuya (WIFI or BT) or TTLock APP
|
|
PIN Length
|
4~6 digits
|
|
Operating Voltage
|
12~28V AC/DC
|
|
Idle Current
|
≤ 60mA
|
|
Active Current
|
≤ 150mA
|
|
Proximity Card Reader
|
EM or Mifare
|
|
Radio Technology
|
125KHz or 13.56MHz
|
|
Read Range
|
2~6cm
|
|
Wiring Connections
|
Relay output, exit button, alarm, door contact,
Wiegand input/output
|
|
Relay
|
One (NO, NC, Common)
|
|
Adjustable Relay Output Time
|
0~99 Seconds (5 seconds default)
|
|
Lock Output Load
|
2 Amp Maximum
|
|
Wiegand Interface
|
EM card version: Wiegand 26~44 bits input & output
(Factory default: Wiegand 26bits)
Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output
(Factory default: Wiegand 34bits)
|
|
PIN Output
|
4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
|
|
Environment
|
IP66
|
|
Operating Temperature
|
-30°℃～60℃ (-22°F～140°F)
|
|
Operating Humidity
|
0%RH ~ 98%RH
|
|
Physical
|
Zinc-Alloy
|
|
Color
|
Sliver & Black
|
|
Dimensions
|
L165x W44 x H22 (mm)
|
|
Weight
|
Unit Weight:1KG;Shipping Weight:1.5KG
|
DIAGRAM
DETAILS
PRODUCTS PACKAGE
APP INTRODUCTION
TUYA APP INTRUCTION
TTLOCK APP INTRUCTION
