Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANDER / OEM
-
Model Number:
-
LDTC-120B
-
Warranty:
-
12 Months
-
Product Name:
-
Cheap Car Swing Arm Tyre Changing Machine
-
External Rim Diameter Range:
-
10-22''
-
Internal Rim Diameter Range:
-
13-24''
-
Color:
-
Red, Blue, Customizable
-
Clamping Type:
-
Table Top
-
Bead Loosening Type:
-
Side Shovel
-
Shipping weight:
-
242KGS/533LBS
-
Shipping size:
-
1130*950*930mm
-
Max. Rim Diameter:
-
41"(1050mm)
-
Max. Rim Width:
-
3-15"(76--381mm)
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Operating Pressure:
-
8-10 Bar
-
Power Supply:
-
110V/220V/240V//50HZ/60HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANDER / OEM
-
Model Number:
-
LDTC-120B
-
Warranty:
-
12 Months
-
Product Name:
-
Cheap Car Swing Arm Tyre Changing Machine
-
External Rim Diameter Range:
-
10-22''
-
Internal Rim Diameter Range:
-
13-24''
-
Color:
-
Red, Blue, Customizable
-
Clamping Type:
-
Table Top
-
Bead Loosening Type:
-
Side Shovel
-
Shipping weight:
-
242KGS/533LBS
-
Shipping size:
-
1130*950*930mm
-
Max. Rim Diameter:
-
41"(1050mm)
-
Max. Rim Width:
-
3-15"(76--381mm)

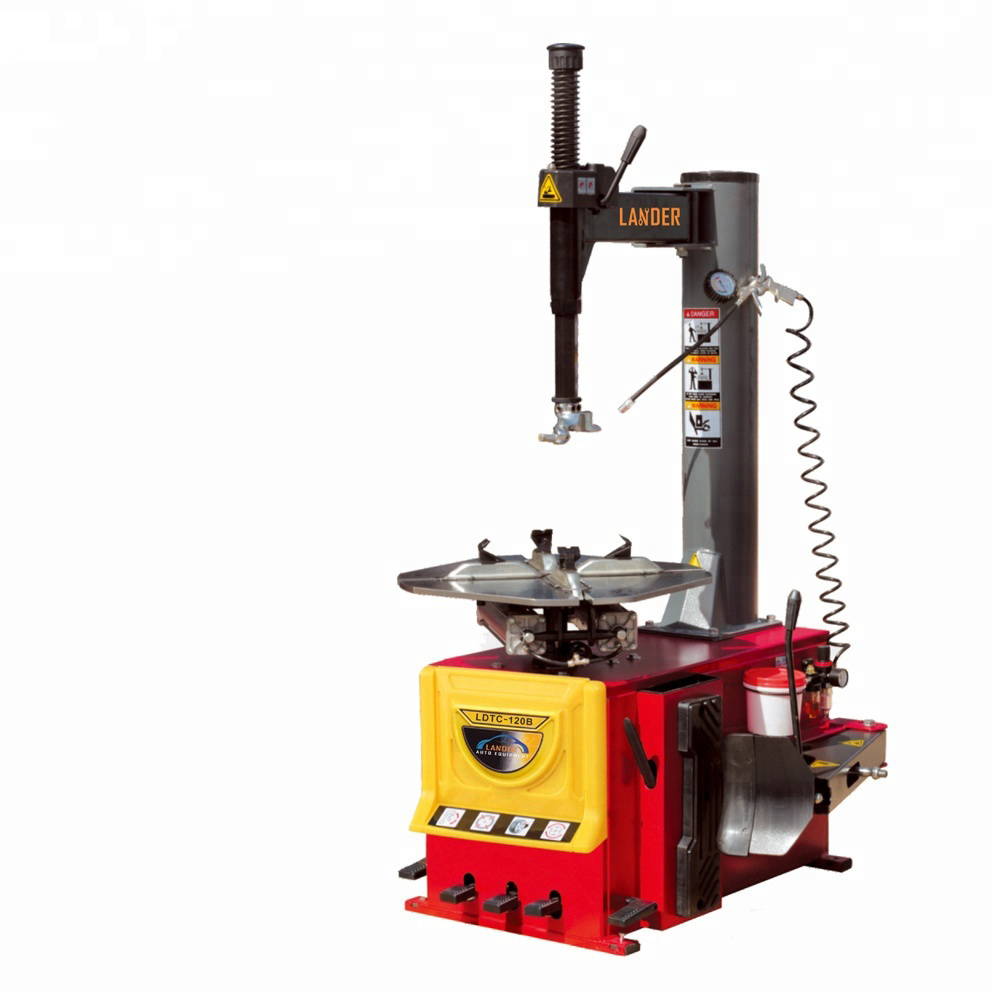

Cheap Car Swing Arm Tyre Changing Machine
Tire Changer LDTC-120B Sepcifications:
| External Rim Diameter Range | 10-22" |
| Internal Rim Diameter Range | 13-24" |
| Maximum Tire Diameter | 41.3"(1050mm) |
| Tire Width | 3-15"(76-381mm) |
| Working Pressure | 8-10Bar |
| Operating Voltage | 110V/220v/240V |
| Motor Power | 0.75/1.1kw |
| Machine Weight | 192kgs(423lbs) |
Application range:
Applicable for changing and inflating car tyres whose rim diameter is between 10”-24”.
Product features:
Adopting semi-automatic lateral swinging arm to change tyres.
Machine functions:
1
. Central
pressing tyre function makes jaws grip rim fastly.
2
. Adjusting
mobile slider to be suitable for different rim ranges.
3
. The
motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
4
. The
once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
5
. The
working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
6
. The
round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
7
. The
tools touching rim directly like changing working head,jaws,crwobar and spade are all
equipped
with protector,these protectors ensure no hurt to the rim.
8
. It
has good personal presentation,thick steel plate and super strong rigidness
.
9. European CE approved.
10. One Year Warranty.
Export Wooden Pallet for tire changer:
