Quick Details
-
Brand Name:
-
ZJIVNV
-
Theory:
-
switch
-
Output:
-
NPN NO
-
Description:
-
PHOTOELECTRIC SENSOR
-
name:
-
m18 photoelectric sensor
-
Product diameter:
-
18mm(M18)
-
Detection distance:
-
10cm
-
MOQ:
-
10
Quick Details
-
Usage:
-
Inductry
-
Model Number:
-
E3F-DS10C4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZJIVNV
-
Theory:
-
switch
-
Output:
-
NPN NO
-
Description:
-
PHOTOELECTRIC SENSOR
-
name:
-
m18 photoelectric sensor
-
Product diameter:
-
18mm(M18)
-
Detection distance:
-
10cm
-
MOQ:
-
10
Advantage:

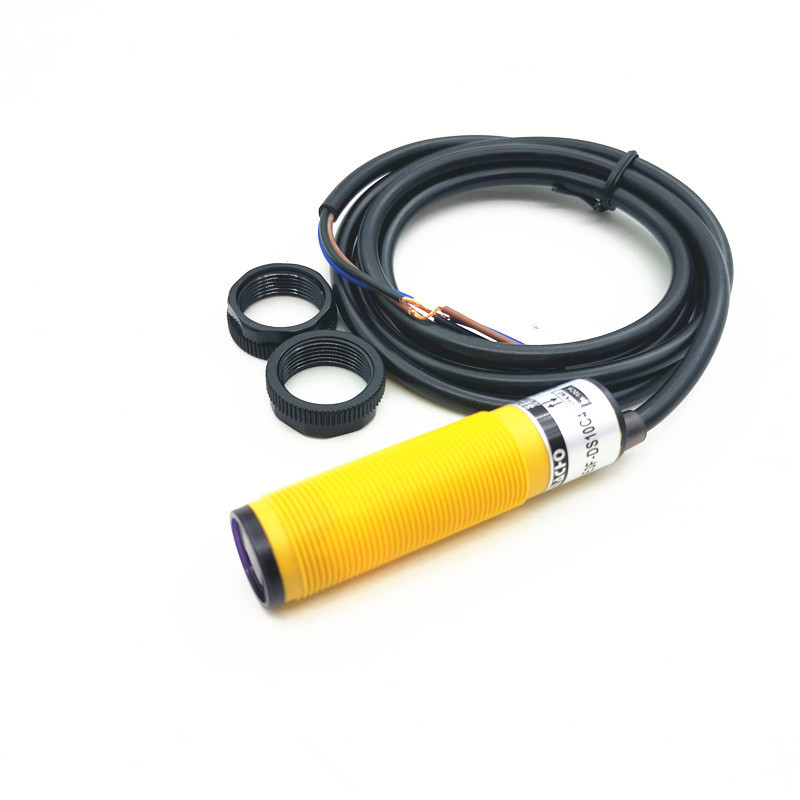

18mm NPN NO Photoelectric Sensor Diffuse Type Switch 6-36VDC 300mA Plastic shell+ 1.2m PVC cable IP67 Detecting Distance:10cm
|
Product Name
|
Photoelectric sensor ( E3F-DS10C4)
|
|
Switch Appearance Type
|
Cylinder Type
|
|
Theory
|
Photoelectric sensor diffuse type
|
|
Output form
|
NPN NO
|
|
Diameter of Head
|
18 mm
|
|
Detecting Distance
|
10cm
|
|
Detecting Object
|
Metal, non metal (body, hand, paper, food ...), Transparent or opaque boday
|
|
Supply Voltage
|
6-36VDC
|
|
Current Output
|
300mA
|
|
Response Frequency
|
100Hz
|
|
External Material
|
Plastic shell+ PVC cable
|
|
Portection grade
|
IP67
|
|
Cable length
|
1.2m length
|
Other mould, if you need contact with us
Applications
1. How we control the quality?
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available?
Yes, we accept customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
