- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
25
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Field installation, commissioning and training, Online support
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8214x2496x3386
-
Cargo Tank Dimension:
-
8214x2496x3386
-
Engine Type:
-
WD615.69
-
Rated power:
-
247kw/2200rpm
-
Color:
-
customized color
-
Fuel tank:
-
300L
-
Drive model:
-
6x4
-
Number of wheel:
-
10 wheel
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
25
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Field installation, commissioning and training, Online support
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8214x2496x3386
-
Cargo Tank Dimension:
-
8214x2496x3386
-
Engine Type:
-
WD615.69
-
Rated power:
-
247kw/2200rpm
-
Color:
-
customized color
-
Fuel tank:
-
300L
-
Drive model:
-
6x4
-
Number of wheel:
-
10 wheel
Products Description
Cabin:
HOWO cab, single/two sleepers, with air-condition, 4 point full-floating air suspension,
adjustable steering wheel with various heights and angles,air suspension seat,etc.
HOWO cab, single/two sleepers, with air-condition, 4 point full-floating air suspension,
adjustable steering wheel with various heights and angles,air suspension seat,etc.
Specification
|
Specifications
|
|
|
|
Model
|

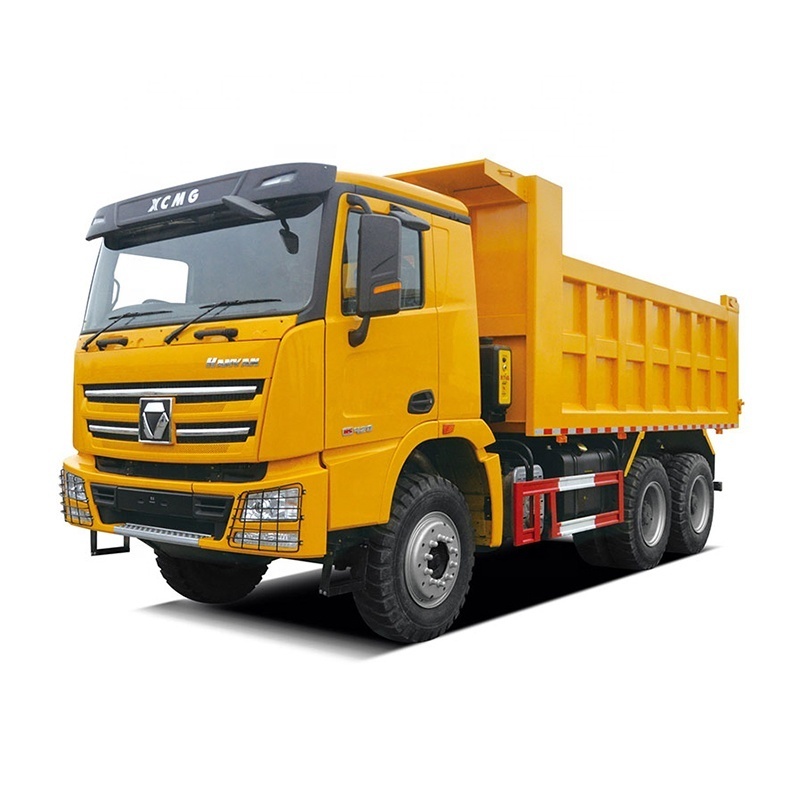

30 ton payload capacity dump truck
|
|
|
Traction
|
6X4, 8*4
|
|
|
Power
|
336HP, 340HP, 371HP, 380HP
|
|
|
Weight Parameter
|
|
|
|
Complete Vehicle Kerb Mass(kg)
|
12250
|
|
|
Maximum authorized total mass (kg)
|
30000
|
|
|
Dimension Parameter
|
|
|
|
External Dimensions(mm)
|
8545X2496X 3170
|
|
|
wheelbase(mm)
|
3625+1350
|
|
|
Internal cargo Sizes
|
6000X2300X1500
|
|
|
Recommended Configuration
|
|
|
|
Engine Type
|
WD615.69
|
|
|
Rated power(kW)/Rev(r/min)
|
247/2200
|
|
|
Transmission
|
Manual operation,10 forward & 2reverse with
no synchronizer |
|
|
Front Axle Payload(kg)
|
9000
|
|
|
Rear Axle Payload(kg)
|
16000x2
|
|
|
Fuel Tank(L)
|
300
|
|
|
Track(mm)
|
2022+1830
|
|
|
Front overhang/rear overhang(mm)
|
1500/2295
|
|
|
Tire
|
12.00-20
|
|
|
Cabin
|
Standard cab with One sleeper, with 4-point support
fully floating suspension and shock absorbers, with air conditioner |
|
