Quick Details
-
Product name:
-
stainless steel banding strap
Quick Details
-
Brand Name:
-
POWTECH
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
YR
-
Product name:
-
stainless steel banding strap

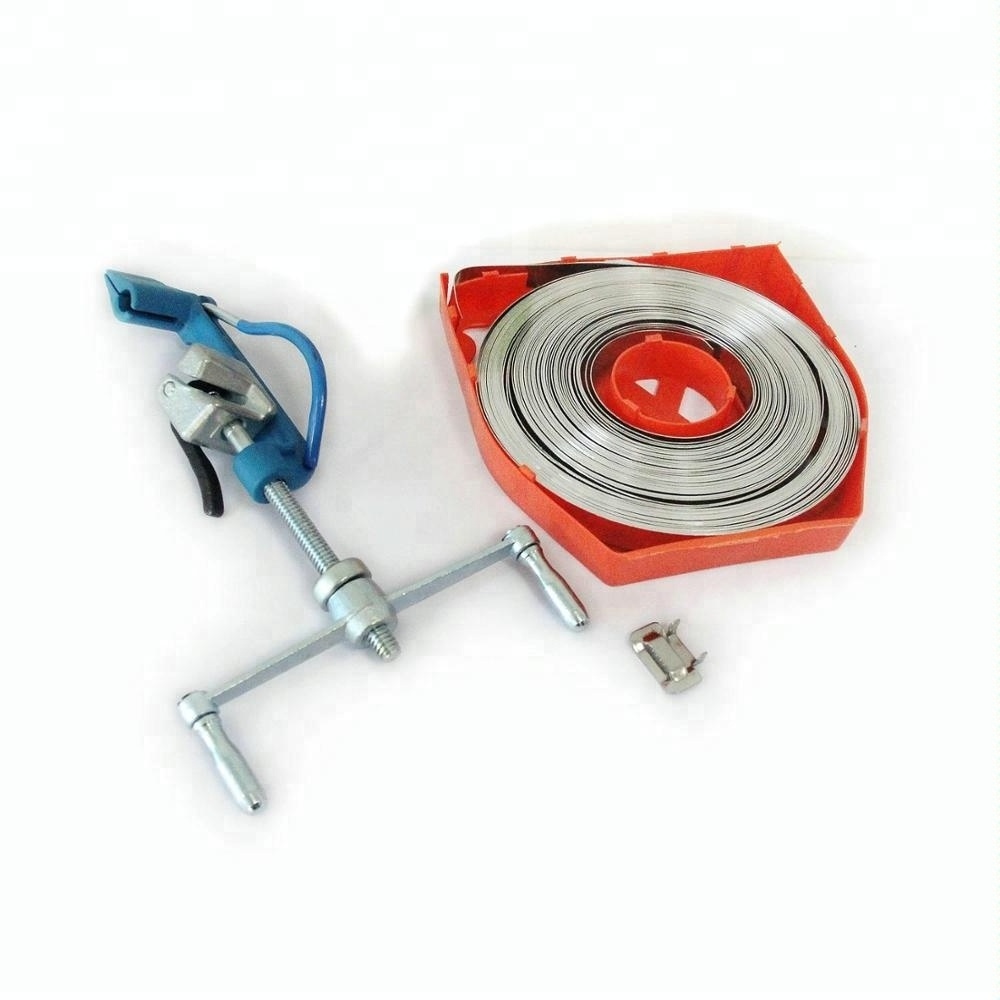

SS304 stainless steel banding strap and tools
Stainless steel banding strap are long pieces of stainless steel used in many industries to bind items together or to affix loose items to more stable ones. These metal straps are superior to straps made from other materials because they are more durable and resistant to wear. When other types of straps will not suffice, stainless steel banding straps get the job done.
Application:
For use on band widths of 1/4" to 3/4" (6-20mm), thickness 0 .015" - 0 .030" (0.4-0.76mm) . Strapping tool with built in cutter, spring loaded gripper lever improves ease of use.
Specification:
|
Description |
Dimension(mm) |
|
|
YRBT001 |
YRBT00 2 |
|
|
Tape entry width |
25 |
25 |
|
Cutting blade width |
25 |
25 |
|
Grip clamp width |
2 0 |
20 |
|
Screw rod maximum operation length |
80 |
N/C |
|
Product length |
2 90 |
235 |
|
Weight |
1.8kg |
1. 2 kg |
|
Material |
Made by Molybdenum vanadium stee l |
|
|
Surface treatment |
E lectrical galvanized or plastic spray |
|
Bandings
| Item No. | Width | Thickness | Length | |||
| in | mm | in | mm | in | mm | |
| YR1450 | 1/4 | 6.35 | 0.02 | 0.5 | 100 | 30.5 |
| YR3840 | 3/8 | 9.35 | 0.016 | 0.4 | 100 | 30.5 |
| YR3850 | 3/8 | 9.35 | 0.02 | 0.5 | 100 | 30.5 |
| YR3860 | 3/8 | 9.35 | 0.024 | 0.6 | 100 | 30.5 |
| YR1240 | 1/2 | 12.7 | 0.016 | 0.4 | 100 | 30.5 |
| YR1250 | 1/2 | 12.7 | 0.02 | 0.5 | 100 | 30.5 |
| YR1260 | 1/2 | 12.7 | 0.024 | 0.6 | 100 | 30.5 |
| YR1270 | 1/2 | 12.7 | 0.028 | 0.7 | 100 | 30.5 |
| YR1276 | 1/2 | 12.7 | 0.03 | 0.76 | 100 | 30.5 |
| YR5840 | 5/8 | 15.88 | 0.016 | 0.4 | 100 | 30.5 |
| YR5850 | 5/8 | 15.88 | 0.02 | 0.5 | 100 | 30.5 |
| YR5860 | 5/8 | 15.88 | 0.024 | 0.6 | 100 | 30.5 |
| YR5870 | 5/8 | 15.88 | 0.028 | 0.7 | 100 | 30.5 |
| YR5876 | 5/8 | 15.88 | 0.03 | 0.76 | 100 | 30.5 |
| YR3440 | 3/4 | 19.05 | 0.016 | 0.4 | 100 | 30.5 |
| YR3450 | 30.5 | 19.05 | 0.02 | 0.5 | 100 | 30.5 |
| YR3460 | 3/4 | 19.05 | 0.024 | 0.6 | 100 | 30.5 |
| YR3470 | 3/4 | 19.05 | 0.028 | 0.7 | 100 | 30.5 |
| YR3476 | 3/4 | 19.05 | 0.03 | 0.76 | 100 | 30.5 |
--Stainless Steel Buckle
--Installation Tool
