- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
0.9cbm
-
Product name:
-
Mesh Wire Container
-
Material:
-
Steel Q235
-
Surface treatment:
-
Electro Galvanized
-
Size:
-
1200*1000*890mm
-
Certification:
-
ISO9001:2008
-
Feature:
-
Corrosion Protection
-
Color:
-
Silver
-
Use:
-
Industrial Warehouse Storage
-
Usage:
-
Warehouse
-
Welding:
-
Weld for automatic welding
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SR
-
Model Number:
-
C-1
-
Capacity:
-
0.9cbm
-
Product name:
-
Mesh Wire Container
-
Material:
-
Steel Q235
-
Surface treatment:
-
Electro Galvanized
-
Size:
-
1200*1000*890mm
-
Certification:
-
ISO9001:2008
-
Feature:
-
Corrosion Protection
-
Color:
-
Silver
-
Use:
-
Industrial Warehouse Storage
-
Usage:
-
Warehouse
-
Welding:
-
Weld for automatic welding

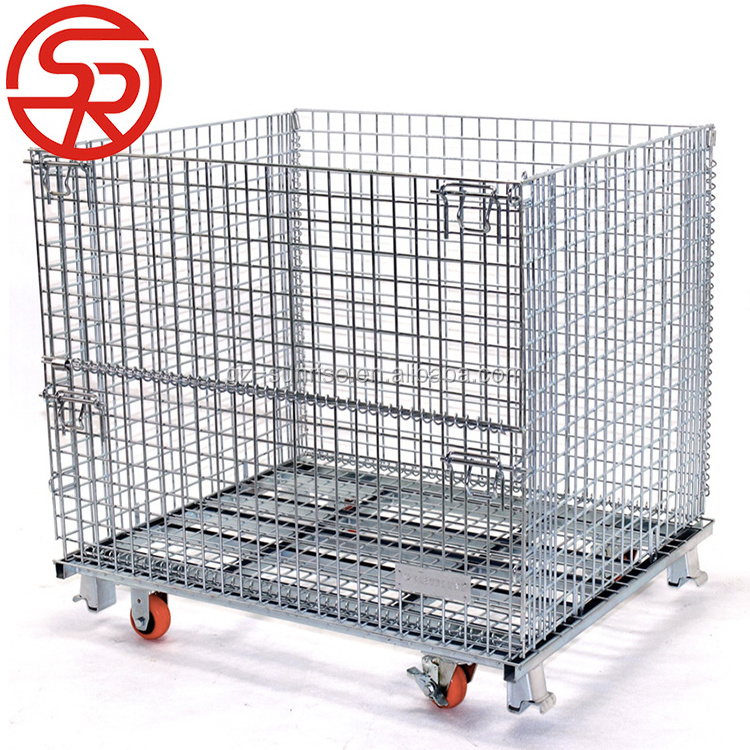

Wire Mesh Container Pallet Metal Logistic Box Steel Stackable Collapsible Galvanized Storage Cage
Product Description:
| ITEM | MODEL | Size(mm) | Mesh size(mm) | Wire dia. (mm) | N.W(kg) | Capacity (kg) |
| A series | A-1 | 800*600*640 | 50*50 | 6 | 29 | 800 |
| SA-1 | 5.8 | 27.7 | 600 | |||
| A5.3 | 5.5 | 23.2 | 400 | |||
| A4.8 | 5 | 20.8 | 300 | |||
| B series | B-1 | 1000*800*840 | 50*50 | 6 | 44.6 | 1000 |
| SB-1 | 5.8 | 42.8 | 800 | |||
| B5.3 | 5.5 | 35.6 | 600 | |||
| B4.8 | 5 | 31 | 500 | |||
| C series | C-1 | 1200*1000*890 | 50*50 | 6 | 60.8 | 1500 |
| SC-1 | 5.8 | 55.6 | 1200 | |||
| C-2 | 50*100 | 6 | 53.4 | 1000 | ||
| SC-2 | 5.8 | 48.4 | 800 |
Bending handle is easy to open and close.
The bottom is adopted the U-channel steel to strengthen the loading intensity.
The special foot base structure assures the stability of wire container when loading and heaping.
Spiral spring hinge connects the reticular pieces, which makes the wire container can be folded when they are idle.
The top is fixed by clamp that assures the intensity of the hinge.
Auxiliary strengthened structure assures the stability of wire container when heaping.
Adopting the multipoint spot welding technique assures the wire container durable.
Individual bolt assures the easy opening of the door when the wire container is heaped
This product is made of welded steel wire. To weld U-shaped stiffener at bottom better for strengthening structure itself. To place cardboard in it so as to protect fragile goods or easily-scratched-surface goods. If assisted by transportation equipment, it can be used in logistic steps, such as transportation, load and unload, and storage.
(1)Size: 800mm*600mm*640mm, 1000mm*800mm*840mm, 1200mm*1000mm*890mm etc.
(2)Diameter of wire: 5.0mm, 6.0mm or 6.4mm etc.
(3)Size of mesh: 50mm*50mm, 50mm*100mm.
(4)Loading capacity: Varying from 500kg to 2000kg.
(5)Surface Treatment: Galvanization
(5)Customized sizes are available.
