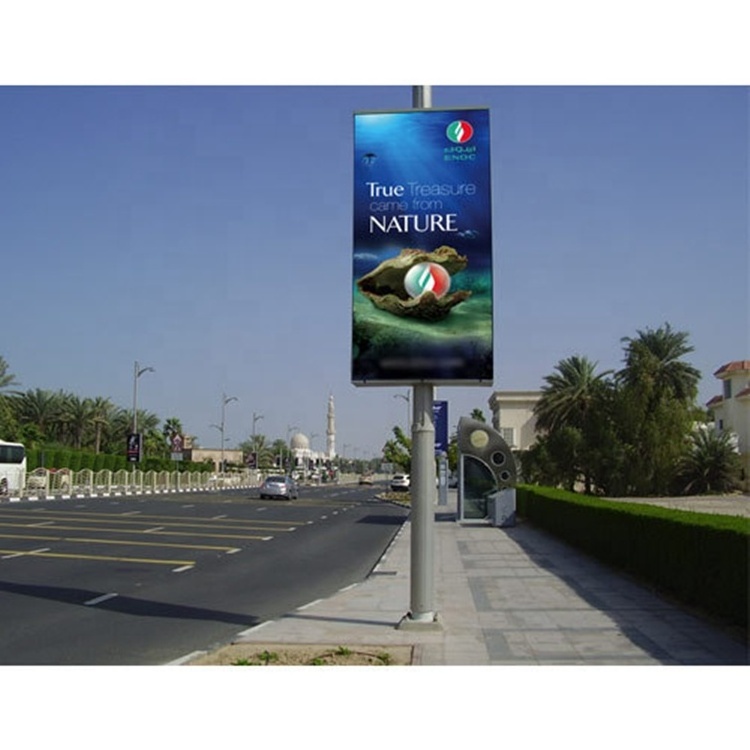

P4 P5 P6 outdoor street lighting pole vertical digital signage signs LED advertising screen

P4 P5 P6 outdoor street lighting pole vertical digital signage signs LED advertising screen

FOB Reference Price: Get Latest Price

≥1 Square meters

US $600

≥10 Square meters

US $560

≥50 Square meters

US $520

≥100 Square meters

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Panel Size:: 960mmx960mm

Place of Origin:: Guangdong, China

Model Number:: P6

Screen Dimension:: Customized

Module size:: 192*192mm

Cabinet size:: 960x960mm

Pixel density:: 27777dots/sqm

Refresh rate:: 3840Hz

Pixel pitch:: 6 Mm

Power Supply:: Meanwell

Warranty:: 3 Years

Brightness:: 7500cd/sqm

Viewing angle:: 160 /160

Quick Details

Application:: play video

Brand Name:: Bescan

Color:: full color

Panel Size:: 960mmx960mm

Place of Origin:: Guangdong, China

Model Number:: P6

Screen Dimension:: Customized

Module size:: 192*192mm

Cabinet size:: 960x960mm

Pixel density:: 27777dots/sqm

Refresh rate:: 3840Hz

Pixel pitch:: 6 Mm

Power Supply:: Meanwell

Warranty:: 3 Years

Brightness:: 7500cd/sqm

Viewing angle:: 160 /160

Product Description

Future:

1.Classic module design, superior product performance, stability.
2.Uniform color, high contrast, beautiful natural picture.
3.New perspective optimization design, covering the mainstream audience.
4.Anti UV, anti deformation module suite to protect the screen body deformation.
5.Patent design with unique color mask processing, showing the industry leading ultra high contrast.
6.Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.
7.Patent design with unique color mask processing, showing the industry leading ultra high contrast.
8.Ultra low temperature free fan design, low temperature rise, small attenuation, long service life.

Detailed Images

P6 led module.

Module size: 192mm x 192mm.

Scan mode: 1/8 scan

module pixel: 32pixel x 32pixel

weight: 0.3kg/pc

Blow are the pictures of the P6 Super slim diecasting aluminum cabinets:

Ultra-light---lighter 40% than aluminum die-csting cabinet.
High precision---seamless splicing though CNC machining.
Super slim---high-strength,more slim than aluminum in the design,thiner around 30%.
Easy installation---installed by quick lock for 20s only.

We have other cheaper cabinet, for outdoor fixed installation, that is with 960mmx960mm iron cabinet,

the weight is about 35kg/pc including the led modules, receiving card, power supplies, and all cables.

Specs

Pixel Pitch	6mm
Pixel density	27777Pixels/sqm
Module size(W*H)	192mm x 192mm
Module pixels(W*H)	32 x 32
Pixel configuration	1Red 1Green 1Blue
Drive mode	constant current driving 1/8 scan
LED lamp type	SMD2727
Cabinet size(W*H)	960mm x 960mm
Cabinet resolution	160pixels x 160pixels
Color scale	65,536 degree
View angle(H/V)	140/140 degree
Brightness (White balance)	≥7500cd/sqm.
Power consumption(one cabinet)	Max:600W/sqm. Average:260W/sqm
Operating Voltage	AC100V±10% or 220V ±10%; 50---60HZ
Net weight	25kg/sqm
Operating temperature	-20°C----+50°C (Customized power supply:-45°C---+60°C)
Life time	≥100,000hours
MTBF	5,000 hours
Whole Display Flatness	≤0.3mm Juncture
Frame frequency	>60 Hz/s
Refresh rate	≥1920Hz /s
Control distance	100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
LED control system	LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating system	Windows 2000 / Windows Xp / Windows 7/Windows 10

Application

Packing & Delivery

This is Flight case package, one can pack 4 cabinets or 5 cabinets or 6 cabinets.

Our Company

FAQ

indoor vs outdoor

Indoor signs are bright enough to be seen inside a building under commercial lighting, but not bright enough to be seen in direct sunlight. Outdoor signs can be seen in full-on, mid-day sunlight, and are weatherproof to withstand the harsh environmental conditions.

Viewing Distance
How far away is your viewing audience? Are they in their car driving fast on the freeway, or are they strolling casually past your store sipping a latte?

Text vs. Graphics

If you are looking for a simple, easy-to-program, text-only sign, there are plenty of scrolling monochrome and full color models to choose from. If you want full motion graphic animations in addition to scrolling text, then you have to have some method to create the animated content for your display

Color vs. Monochrome

How many colors do you need? Monochrome signs come in red or amber, and can display up to 256 shades of one color (see Nova). High definition RGB displays are capable of displaying up to 4.4 trillion colors!

Viewing Angle vs. Brightness

Viewing Angle is measured in degrees. The wider the angle, the wider the area is that a viewer can read the sign.
