Quick Details
-
Detection range:
-
100cm ± 10%
-
Size:
-
M18
-
Consumption current:
-
<20mA
-
Supply voltage:
-
10-30vdc
-
Control Output:
-
<300mA
-
Housing material:
-
ABS
-
Protective class:
-
IP67
Quick Details
-
Usage:
-
Position Sensor
-
Name:
-
Diffuse reflection Photoelectric Sensor switch
-
Detection method:
-
Diffuse type
-
Detection range:
-
100cm ± 10%
-
Size:
-
M18
-
Consumption current:
-
<20mA
-
Supply voltage:
-
10-30vdc
-
Control Output:
-
<300mA
-
Housing material:
-
ABS
-
Protective class:
-
IP67

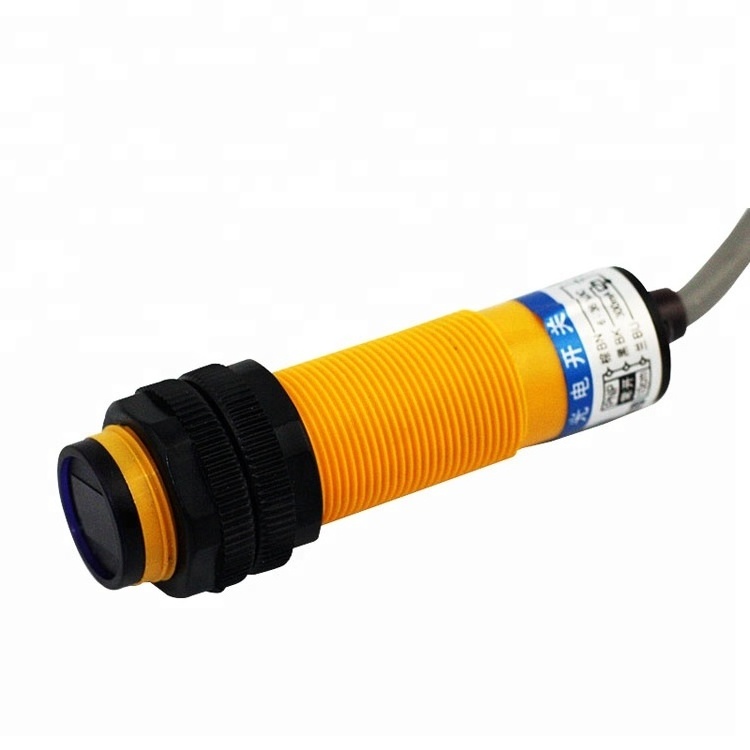

100cm sensing range Diffuse reflection Photoelectric Sensor switch with ABS housing hot selling
Introduction
Photoelectric switch is a photoelectric proximity switch for short, it is the use of the object to be detected on the beam occlusion or reflected by the gating circuit, synchronous circuit, so as to detect objects without.
Specification
|
Measuring method |
Diffuse reflection |
|||
|
model |
DC type |
NPN |
NO |
E3F-DS100C4 |
|
NC |
E3F-DS100C2 or E3F-DS100B2 |
|||
|
NO+NC |
E3F-DS100C3 or E3F-DS100C12 |
|||
|
PNP |
NO |
E3F-DS100P1 |
||
|
NO |
E3F-DS100P2 |
|||
|
NO+NC |
E3F-DS100P3 or E3F-DS100P12 |
|||
|
Two-wire |
NO |
|
||
|
NC |
|
|||
|
AC type |
Two-wire |
NO |
E3F-DS100Y1 |
|
|
NC |
E3F-DS100Y2 |
|||
|
Three-wire |
NO+NC |
|
||
|
examination range |
100 ± 10% |
|||
|
Detection range adjustment |
Fixed or Adjustable regulator |
|||
|
Detection target |
Opaque object |
|||
|
Response time |
1ms |
|||
|
On delay |
1.5ms |
|||
|
light source |
Infrared light 660nm |
|||
|
voltage |
DC type: DC12-24V (6-36V) pulsation (P-P) below 10%, AC type: AC110-220V (90-250V) 50/60Hz |
|||
|
Withstand voltage |
AC1000V 50/60Hz 1min between the charging part and the outer casing |
|||
|
Voltage effect |
Rated power supply voltage range within ±15%, rated power supply voltage value, ±10% detection distance |
|||
|
Current consumption |
N.P type: 20mA or less, type A: 1.7mA or less |
|||
|
Control output |
N.P type: 300 mA or less, A type: 400 mA or less, J type: 2 A or less (contact life: 100,000 times) |
|||
|
Loop protection |
N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption |
|||
|
Ambient temperature and humidity |
During operation and storage: each -30-+65 °C (no ice, no condensation), During operation and storage: 35-95% RH each |
|||
|
Temperature effect |
Temperature range -30-+65°C, +23°C, ±15% detection distance
|
|||
|
Insulation resistance |
50MΩ or more (DC500 megohmmeter) between the charging part and the outer casing |
|||
|
Material |
Housing: AB plastic Detection surface (lens): PMMA |
|||
|
Protective structure |
IP65 (IEC specification) can be customized IP67 |
|||
Application
Port Crane crash Fabric width detection Empty Detection
Production
Note:Please confirm following details before ordering:
1 Detection distance
2 Detection method
3 Size
4 Output
Lead length can be customized according to your requirements.
Any questions or demands, please do not hesitate to contact us.
|
|
