Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Dimension(L*W*H):
-
lazer rust remover
-
Year:
-
rust laser cleaning machine
-
Weight (KG):
-
500 KG
-
Product name:
-
Fiber Laser Cleaning Machine
-
Application:
-
Surface Paint Cleaning
-
Function:
-
Metal Rust Surface Laser Cleaning
-
Cleaning Process:
-
Automatic Cleaning
-
Applied industry:
-
Metal Rust Processing
-
Feature:
-
Accurate Cleaning
-
Laser Power:
-
50W/100W/200W/500W/1000W
-
Laser Wavelength:
-
1064 Nm rust removing lazer
-
Usage:
-
Intustrial Metal Dirts Laser Cleaning
-
Keywords:
-
fiber laser cleaning machine
Quick Details
-
Power:
-
200W, 100W, 500W, 50W, 80W, 3000W, 1500W, 1000W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
JPT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Dimension(L*W*H):
-
lazer rust remover
-
Year:
-
rust laser cleaning machine
-
Weight (KG):
-
500 KG
-
Product name:
-
Fiber Laser Cleaning Machine
-
Application:
-
Surface Paint Cleaning
-
Function:
-
Metal Rust Surface Laser Cleaning
-
Cleaning Process:
-
Automatic Cleaning
-
Applied industry:
-
Metal Rust Processing
-
Feature:
-
Accurate Cleaning
-
Laser Power:
-
50W/100W/200W/500W/1000W
-
Laser Wavelength:
-
1064 Nm rust removing lazer
-
Usage:
-
Intustrial Metal Dirts Laser Cleaning
-
Keywords:
-
fiber laser cleaning machine
Product Description

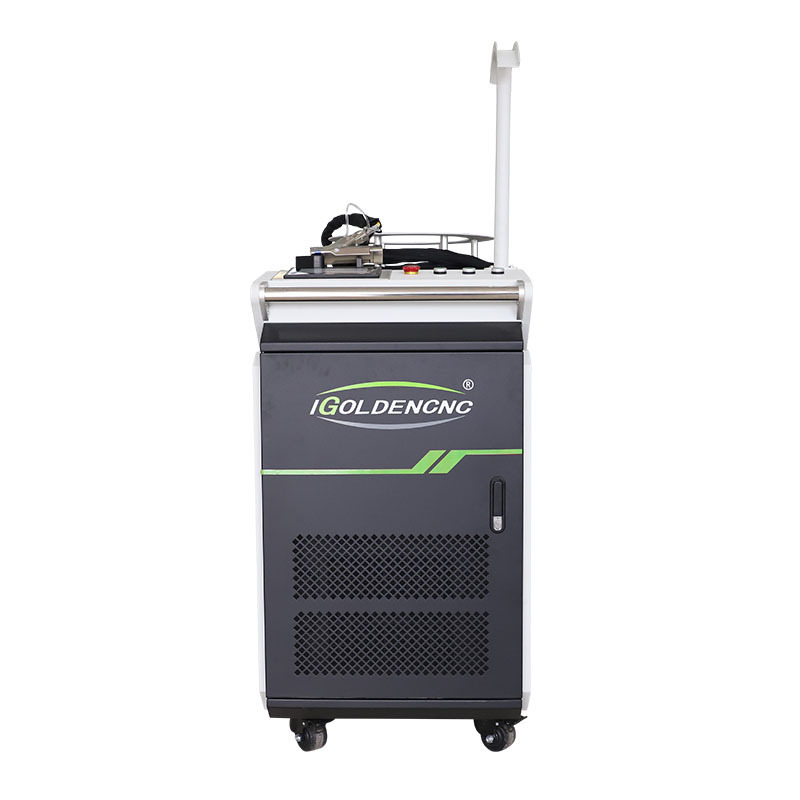

High power fiber laser cleaning machine 200W 500W 1000W 1500W laser cleaner price for bearings rust remove
laser cleaning machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser cleaning equipment, using handheld swing cleaning head, touch screen and button control, combined with the advanced integrated control system, the precision CNC fiber laser cleaning machine is assembled. It meets the cleaning requirements of complex shapes and fine positioning in the industrial processing field, and achieves higher cleanliness cleaning effects and lower overall cost production benefits.
Mainly used in automobile manufacturing, mechanical processing, electronic processing, cultural relics
restoration, mold industry, shipbuilding industry, food processing industry, petrochemical industry processing, petrochemical industry and other industries.
restoration, mold industry, shipbuilding industry, food processing industry, petrochemical industry processing, petrochemical industry and other industries.
Technical Data
|
Item No.
|
iGCL
|
|
|
|
|
|
|||||
|
Laser Power
|
100w
|
200w
|
300w
|
1000w
|
1500w
|
2000w
|
|||||
|
Laser Wavelength
|
1064nm
|
|
|
1080±5nm
|
|
|
|||||
|
Pulse Energy
|
1.5mJ
|
12mJ
|
15mJ
|
1.5-20mJ
|
|
|
|||||
|
Fiber Length
|
5m (Optioned)
|
|
|
8-10m (15m Optioned)
|
|
|
|||||
|
Laser Cleaning Head Weight
|
＜1kg
|
|
|
3kg
|
|
|
|||||
|
Scanning Width
|
10-80mm
|
|
|
|
|
|
|||||
|
Voltage
|
220V, 50/60Hz
|
|
|
|
380V, 50/60Hz
|
|
|||||
|
Cooling Method
|
Air-cooling
|
|
|
Water-cooling
|
|
|
|||||
|
Working Temperature
|
0-40℃
|
|
|
10-40℃
|
|
|
|||||
Cleaning Performance Data
|
Substrate
|
Surface
|
Effective focal depth (mm)
|
Standard cleaning efficiency (mm/min)
|
High-speed cleaning efficiency (mm/min)
|
Effect
|
|
Cast iron
|
Severely corroded 0.08mm
|
＞35
|
2000
|
3000
|
The surface is clean and the substrate is not damaged
|
|
Carbon steel plate
|
Moderate rust 0.5mm
|
＞40
|
1800
|
2400
|
The surface is clean and the substrate is not damaged
|
|
Stainless steel
|
Surface oil, slight rust
|
＞50
|
2000
|
3000
|
The surface is clean and the substrate is not damaged
|
|
Mold copper gear
|
Moderately oily, with iron filings attached
|
＞45
|
2000
|
2300
|
The surface is clean and the substrate is not damaged
|
|
Aluminum plate
|
Oxide, surface fouling
|
＞35
|
2000
|
2300
|
The surface is clean and the substrate is not damaged
|
Details Images
Samples
Application range
Handheld laser cleaning machine uses high-frequency and high-energy laser pulses to irradiate the
surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes thesurface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.
surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes thesurface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.
1. Derusting of metal surface;
2. Surface paint removal and paint removal treatment;
3. Surface oil, stains and dirt cleaning;
4. Surface plating and coating removal;
5. Pretreatment of welding surface/spraying surface;
6. The dust and attachments on the surface of the stone statue are removed;
7. Cleaning of rubber mold residues.
