Quick Details
-
Brand Name:
-
WALTER
-
Model Number:
-
W-061
-
Number of Specimens:
-
1
-
Application:
-
Water Vaper Permeability Tester
-
Temperature Range:
-
15 °C~ 65 °C (standard)
-
Specimen Size:
-
74 mm
-
Humidity Range:
-
10%RH~ 98%RH Note (standard is 90%RH)
-
Test Chamber Size:
-
15L
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WALTER
-
Model Number:
-
W-061
-
Number of Specimens:
-
1
-
Application:
-
Water Vaper Permeability Tester
-
Temperature Range:
-
15 °C~ 65 °C (standard)
-
Specimen Size:
-
74 mm
-
Humidity Range:
-
10%RH~ 98%RH Note (standard is 90%RH)
-
Test Chamber Size:
-
15L

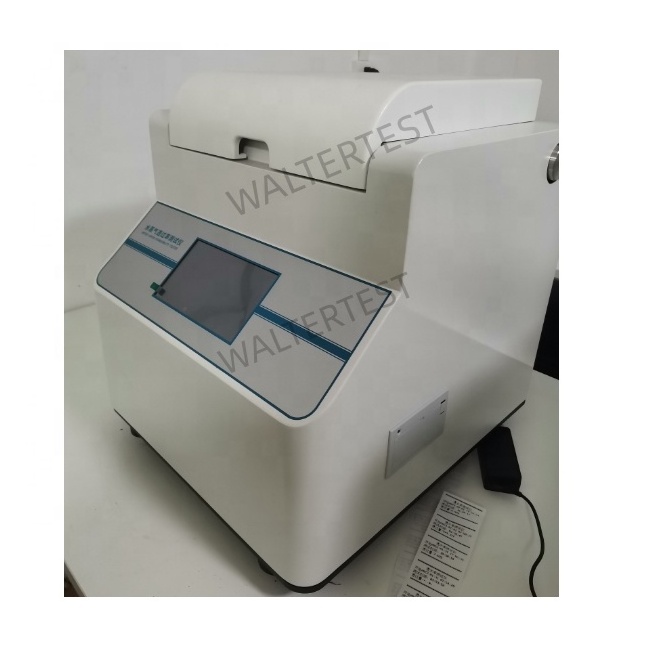

W - 061 Water Vaper Permeability Tester
This instrument is based on the cup method, which is professionally applicable to the water vapor transmission rate test of thin film specimens. Through the determination of water vapor transmittance to control and adjust the technical index of material, meet the different needs of application.
Professional Technology
- Gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient of the specimen could be obtained at one operation
Features
- Gas cylinder lifting structure design and periodically weighing method to reduce system errors
- Six distinct or equivalent specimens can be tested individually with independent test results at one operation.
- Standard air velocity can effectively prevent the formation of moisture gradient.
- Wide range and high-precision of automatic temperature and humidity control to support various combinations of non-standard test conditions
- Convenient fast-access calibration ports for temperature and humidity.
- The system is controlled by computer and test process is automatic.
- The tast report could be saved and provided in multiple formats,including Excel, database ,etc.
- Reference film or standard weight for fast and accurate calibration
- The instrument is equipped with USB port and Common data port for convenient input, output, and data transfer
This instrument conforms to various national and international standards:
ISO 2528, GB 1037, GB/T 16928, ASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208, YBB 00092003
Water Vaper Permeability Tester
Oxygen Barrier Testing Machine
1.After an order is placed, when will you send to us?
Generally about 15 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
