Quick Details
-
Material:
-
Aluminum Alloy, 1.0mm SGCC Zinc-Coated Steel
-
Brand Name:
-
Toploong
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
S665-48
-
HDD Tray:
-
2.5''/3.5'' HDD(Anti-EMI)
-
HDD Bay:
-
48 x 3.5' hot-swap SATA/SAS drive bays+built-in 2x2.5'' drive bays
-
Backplane:
-
12Gb/s expander backplane
-
Motherboard:
-
Max support 13''x13.68''(EE-ATX) motherboard
-
Power Supply:
-
2U/CRPS
-
Cooling Fan:
-
6pcs 12038 hot-swap fans
-
Switch:
-
Power ON/OFF x 1, System reset x 1, UID Switch x 1, USB3.0 x 2
-
Dimensions:
-
437.5mm x 650mm x 265mm (W*D*H)
-
Certification:
-
According to customer request
Quick Details
-
Application:
-
Server
-
Type:
-
Rack
-
Form Factor:
-
EE-ATX
-
Material:
-
Aluminum Alloy, 1.0mm SGCC Zinc-Coated Steel
-
Brand Name:
-
Toploong
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
S665-48
-
HDD Tray:
-
2.5''/3.5'' HDD(Anti-EMI)
-
HDD Bay:
-
48 x 3.5' hot-swap SATA/SAS drive bays+built-in 2x2.5'' drive bays
-
Backplane:
-
12Gb/s expander backplane
-
Motherboard:
-
Max support 13''x13.68''(EE-ATX) motherboard
-
Power Supply:
-
2U/CRPS
-
Cooling Fan:
-
6pcs 12038 hot-swap fans
-
Switch:
-
Power ON/OFF x 1, System reset x 1, UID Switch x 1, USB3.0 x 2
-
Dimensions:
-
437.5mm x 650mm x 265mm (W*D*H)
-
Certification:
-
According to customer request

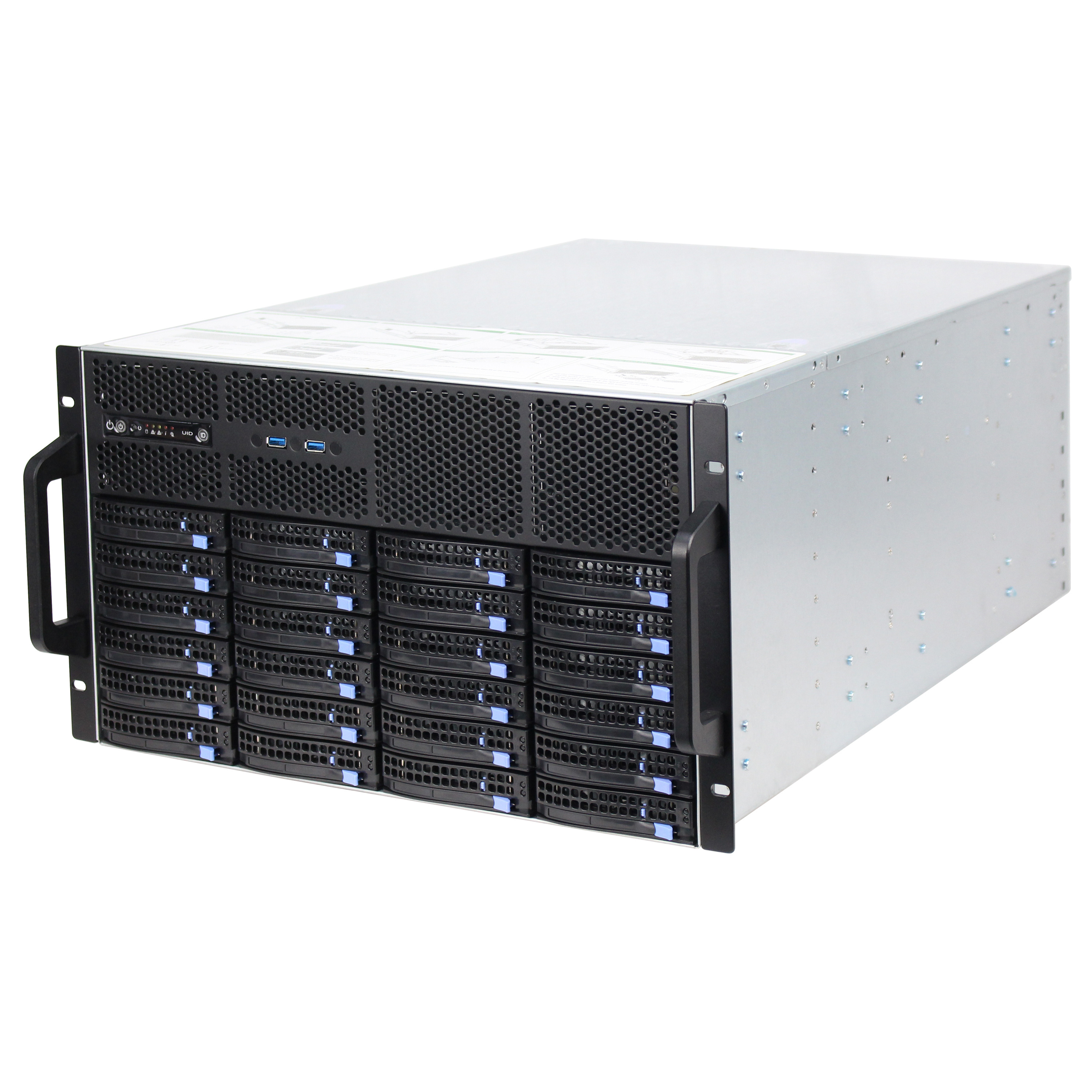

6U Rackmount Server Chassis with 48 hot-Swappable SATA/SAS drive bays, 6Gb/s(12Gb/s) expander connector
01 Specifications:
| Model | S665-48 | |
| Form Factor | 6U Rackmount Server Case with 48 Hot-swappable SATA/SAS Drive Bay, Mini SAS/SATA Connector | |
| Material | Metal material | SGCC |
| Metal thickness | 1.0mm | |
| Panel material | Metal | |
| Handle material | Aluminium | |
| M/B support | EE-ATX(13.68''*13''),E-ATX(12''*13''),CEB(12''*10.5''),ATX(12''*9.6''),micro ATX(9.6''*9.6''),mini-ATX(6.7''*6.7'') | |
| Size | D*W*H(mm) | 437.5*650*265 |
| D*W*H(inch) | 17.2*25.6*10.4 | |
| Drive Bay | 3.5'' HDD(hot-swap) | 48 |
| 2.5'' HDD/SSD(hot-swap) | 2 | |
| Power Supply support | 2U/CRPS power supply | |
| Front Panel | Control button | Power ON/OFF x1,System reset x1,UID Switch x1 |
| Indicator | Power ON/OFF x1,HDD x1,NIC x2,UID LED x1,Power Alarm x1,Temperature Alarm x1 | |
| Ports | USB2.0 x2(optional USB3.0) | |
| Expansion | Riser Slot | 7pcs(mid height) |
| Hot-swap Backplane | 12Gb/s expander backplane | |
| System cooling(optional) | Front | No |
| Middle | 6pcs 12038 hot-swap fans | |
| Rear | No | |
| Net weight | 43.5kg | |
| Gross weight | 45.5kg | |
| Packing size | D*W*H(mm) | 830*590*430 |
| D*W*H(inch) | 32.7*23.2*16.9 | |
| Packing material | Polyfoam with carton box | |
02 Features:
*Conformed with EMC design standard to prevent electromagnetic interference.
*Support motherboard size up to 13.68''x13'' and 48x3.5'' hot-swap HDD bays.
*Six 12038 fans to make sure the system work steadily.
*Front panel and hanger are made of Brushed Anodized Aluminium.
*Can be used in security minitoring, IPFS, cloud storage, cloud computing, IOT, personal entertainment, etc.
