Quick Details
-
Weight (KG):
-
6000 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIXER
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
according to the type
-
Power (kW):
-
45 kW
-
CMC:
-
CMC Sigma Kneader
-
Power(W):
-
11-18.5KW
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE,ISO
Quick Details
-
Barrel Volume (L):
-
500 L
-
Max. Loading Volume (L):
-
300 L
-
Max. Loading Capacity:
-
300L
-
Weight (KG):
-
6000 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIXER
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
according to the type
-
Power (kW):
-
45 kW
-
CMC:
-
CMC Sigma Kneader
-
Power(W):
-
11-18.5KW
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE,ISO

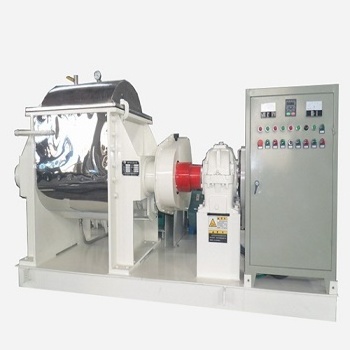

soap sigma mixer/sigma mixer rubber/z-type sigma mixer
Sigma Kneader/Sigma Mixer is widely used for:, plastic, rubber, silicone,CMC,BMC, soap,paint, printing ink, basoid, carbon, food stuff etc, Mixing room and agitating rotor are all made by stainless steel, The jacket of mixing room can be designed into electric heating, steam heating, steam heating or water cooling. Discharge ways include hydraulic tilt,, screw extruder and botton valve discharge etc.
Standard Sigma Kneader:
|
Model |
Total Volume( L ) |
Working Volume(L) |
Motor Power (KW) |
Discharge way |
Heating mode |
|
NH - 50 |
50 |
30 |
2.2 ~ 4 |
Hydraulic tilt |
Steam/hot water |
|
NH - 100 |
100 |
60 |
3 ~ 5.5 |
Hydraulic tilt |
Steam/hot water |
|
NH - 200 |
200 |
120 |
5.5 ~ 7.5 |
Hydraulic tilt |
Steam/hot water |
|
NH - 300 |
300 |
180 |
7.5 ~ 11 |
Hydraulic tilt/bottom drop |
Steam/hot water |
|
NH - 500 |
500 |
300 |
11 ~ 18.5 |
Hydraulic tilt/bottom drop |
Steam/hot water |
|
NH - 1000 |
1000 |
600 |
18.5 ~ 30 |
Hydraulic tilt/bottom drop |
Steam/hot water |
|
NH - 1500 |
1500 |
900 |
22~ 37 |
Hydraulic tilt/bottom drop |
Steam/hot water |
|
NH - 2000 |
2000 |
1200 |
37~ 55 |
Hydraulic tilt/bottom drop |
Steam/hot water |
|
NH - 3000 |
3000 |
1800 |
55~ 90 |
Hydraulic tilt/bottom drop |
Steam/hot water |
|
NH - 4000 |
4000 |
2400 |
75~ 110 |
Hydraulic tilt/bottom drop |
Steam/hot water |
|
NH - 5000 |
5000 |
3000 |
90~ 132 |
Hydraulic tilt/bottom drop |
Steam/hot water |
|
NH - 6000 |
6000 |
3600 |
132~ 160 |
Hydraulic tilt/bottom drop |
Steam/hot water |
Vacuum Sigma Kneader:
|
Model |
Total Volume( L ) |
Working Volume(L) |
Motor Power (KW) |
Discharge way |
Heating mode |
|
NHZ - 50 |
50 |
30 |
4 ~ 5.5 |
Hydraulic tilt |
Electric/steam |
|
NHZ - 100 |
100 |
60 |
5.5 ~ 7.5 |
Hydraulic tilt |
Electric/steam |
|
NHZ - 200 |
200 |
120 |
7.5 ~ 11 |
Hydraulic tilt |
Electric/steam |
|
NHZ - 300 |
300 |
180 |
11 ~ 15 |
Hydraulic tilt/bottom drop |
Electric/steam |
|
NHZ - 500 |
500 |
300 |
15 ~ 30 |
Hydraulic tilt/bottom drop |
Electric/steam |
|
NHZ - 1000 |
1000 |
600 |
37 ~ 55 |
Hydraulic tilt/bottom drop |
Electric/steam |
|
NHZ - 1500 |
1500 |
900 |
55 |
Hydraulic tilt/bottom drop |
Electric/steam |
|
NHZ - 2000 |
2000 |
1200 |
75 ~ 90 |
Hydraulic tilt/bottom drop |
Electric/steam |
|
NHZ - 3000 |
3000 |
1800 |
90 ~ 110 |
Hydraulic tilt/bottom drop |
Electric/steam |
|
NHZ - 4000 |
4000 |
2400 |
132 ~ 160 |
Hydraulic tilt/bottom drop |
Electric/steam |
