Quick Details
-
Product Name:
-
Remote Control Water Monitor
-
Flow Rate:
-
9000-12000 LPM
-
Working Pressure:
-
10 Bar
-
Waterway Size:
-
5"
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
/
-
Model Number:
-
PSKD
-
Product Name:
-
Remote Control Water Monitor
-
Flow Rate:
-
9000-12000 LPM
-
Working Pressure:
-
10 Bar
-
Waterway Size:
-
5"
Product Description
PSKD150-200
Stainless Steel
5 Inch
Explosion proof

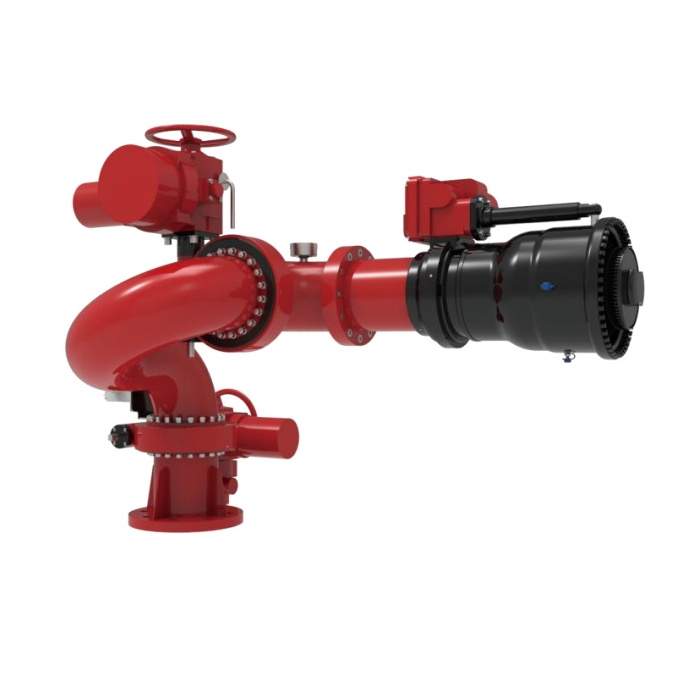

Electric Remote Control Water Monitor
Features
- 304L stainless steel construction;
- Automatic monitor nozzle;
- Vertical travel of 135 ° ,from -50 ° to +85 ° ;
- 360 ° rotation horizontally;
- Electric control jetting Pattern: Straight stream,Fog;
- Explosion proof class IICT4;
- Optional power supply 12V/24V DC(optional), or 100-380 V AC;
- Flow Rate 9000/10800/12000 LPM.
Technical Parameter
Model |
PSKD150
|
PSKD180 | PSKD200 |
Flow Rate |
9000 LPM
|
10800 LPM | 12 0 00 LPM |
Working Pressure | 10 Bar | ||
Water Jetting Range |
105 meters
|
110 meters | 115 meters |
Max. Fog Angle |
120°
|
||
Max Range Of Monitor | -50° to +85° Vertically, 360° Rotation,other degree available | ||
Turing Speed |
7°/Second rotation,7°/Second vertical
|
||
Power Supply
|
AC 220V is standard | ||
Power Consumption | Max. 300W | ||
Waterway Size |
5” (125mm)
|
||
Monitor Outlet | 5” (125mm) Flange | ||
Monitor Inlet |
Flange 5” ANSI 150# is standard,other size and standard available
|
||
Material |
Monitor - SS304 Stainless Steel
,SS316 is available
Nozzle - Hard coated anodized aluminium alloy
|
||
Control System
|
ICS-EX-01 or VMCS-01
|
