End Of Line Packaging Carton Case Bottle Jar Robot Palletizer Cobot Palletizer Stacking Machine

End Of Line Packaging Carton Case Bottle Jar Robot Palletizer Cobot Palletizer Stacking Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $12300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: YB

Dimension(L*W*H):: 500x400x1500mm

Weight:: 150 KG

Product name:: Automatic Robot Palletizer Palletizing Machine

Capacity:: 72 meters/min

Working diameter:: 1600mm

Maximum pallet size:: 1200x1200mm

controller:: PLC

Language:: English

Working weight:: 20-30kg

Uasage:: Carton, Box, Wood, Bottle, Bag, etc

Quick Details

Application:: Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes

Packaging Material:: Wood

Voltage:: 220V, 1Phase 220V

Place of Origin:: Jiangsu, China

Brand Name:: YB

Dimension(L*W*H):: 500x400x1500mm

Weight:: 150 KG

Product name:: Automatic Robot Palletizer Palletizing Machine

Capacity:: 72 meters/min

Working diameter:: 1600mm

Maximum pallet size:: 1200x1200mm

controller:: PLC

Language:: English

Working weight:: 20-30kg

Uasage:: Carton, Box, Wood, Bottle, Bag, etc

YB-MD16 End Of Line Packaging Carton Case Bottle Jar Robot Palletizer Cobot Palletizer Stacking Machine

(we offer Big Discount Price this month!)

Products Description

Model	YB-MD16
Working speed	72 meters/min
Maximum arm pan	1600mm
Maximum stackable height	2100mm
Stack box dimension	L: 260-500mm, W: 200-450mm, H150-400mm
Power	2.95 KW
Power supply	AC220V, 50/60Hz
Net weight	180 kg
Machine dimension (with base)	L1800 × W1400 × H1900mm

Product advantages 1. Safe and stable (1) Being able to work directly alongside humans without the need for safety fences for isolation, with high reliability and safety; (2) Support level 10 collision detection and sensor safety detection; (3) Provide 16 safety I/O interfaces, ensuring that safety functions are not lost in the event of a single fault; (4) The end of the product does not fall due to power failure, ensuring safety and stability; 2. Flexible deployment (1) Integrated design, lightweight and flexible, with a small footprint; (2) The deployment of new tasks on workstations is simple, fast, and efficient; 3. Easy programming (1) Half an hour to master programming methods, and one hour to complete simple programming; (2) Visual programming is simple and efficient, allowing for easy manipulation of robots without the need for proficiency in programming languages; 4. Flexible production Multiple functional scenarios can be quickly switched, and flexible production can be achieved through human-machine collaboration, dual machine collaboration, multi machine collaboration, etc; 5. Widely used Widely used in industries such as food, medicine, 3C, daily chemicals, e-commerce, etc;

Details Images

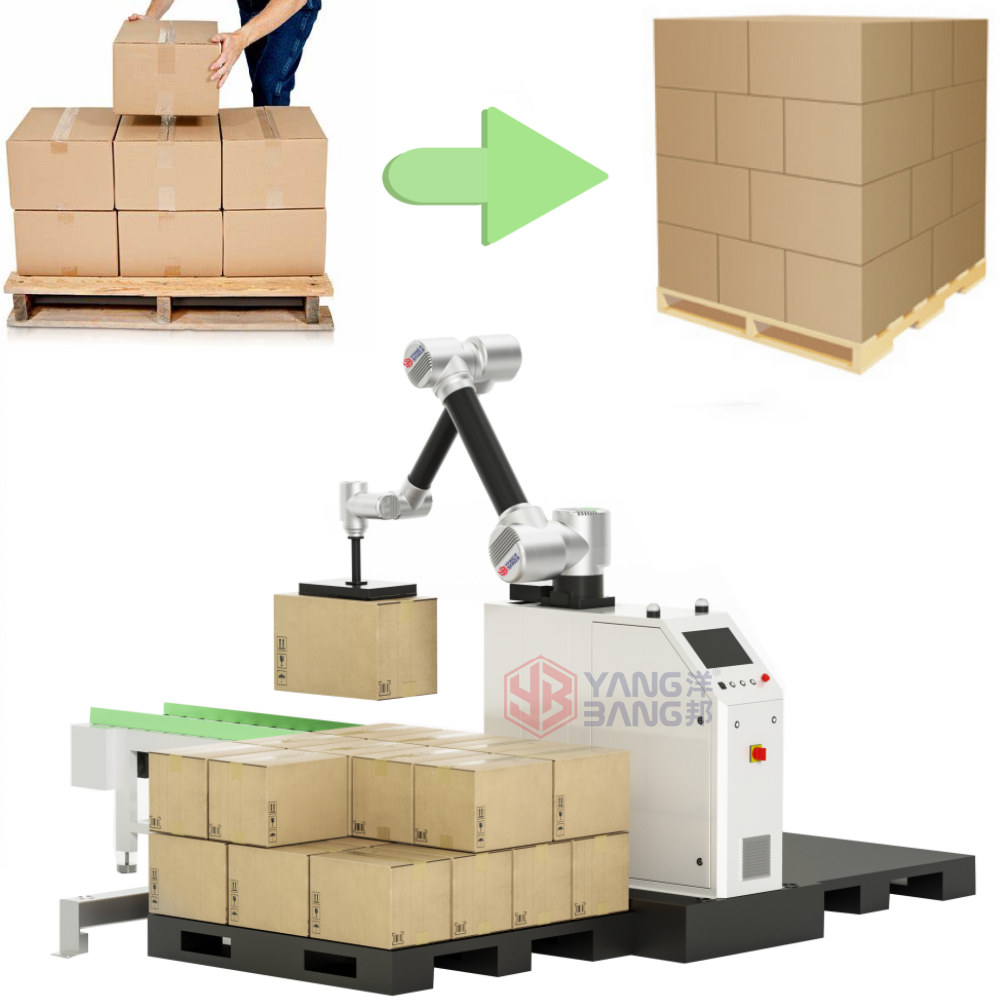

Workstation composition.

① Collaborative robots.

② Electric box control cabinet.

③ Column lifting shaft.

④ Base+card positioning.

⑤ End effector.

⑥ Operating System.
